Data Sheet
ADA4625-1/ADA4625-2
Rev. A | Page 35 of 35

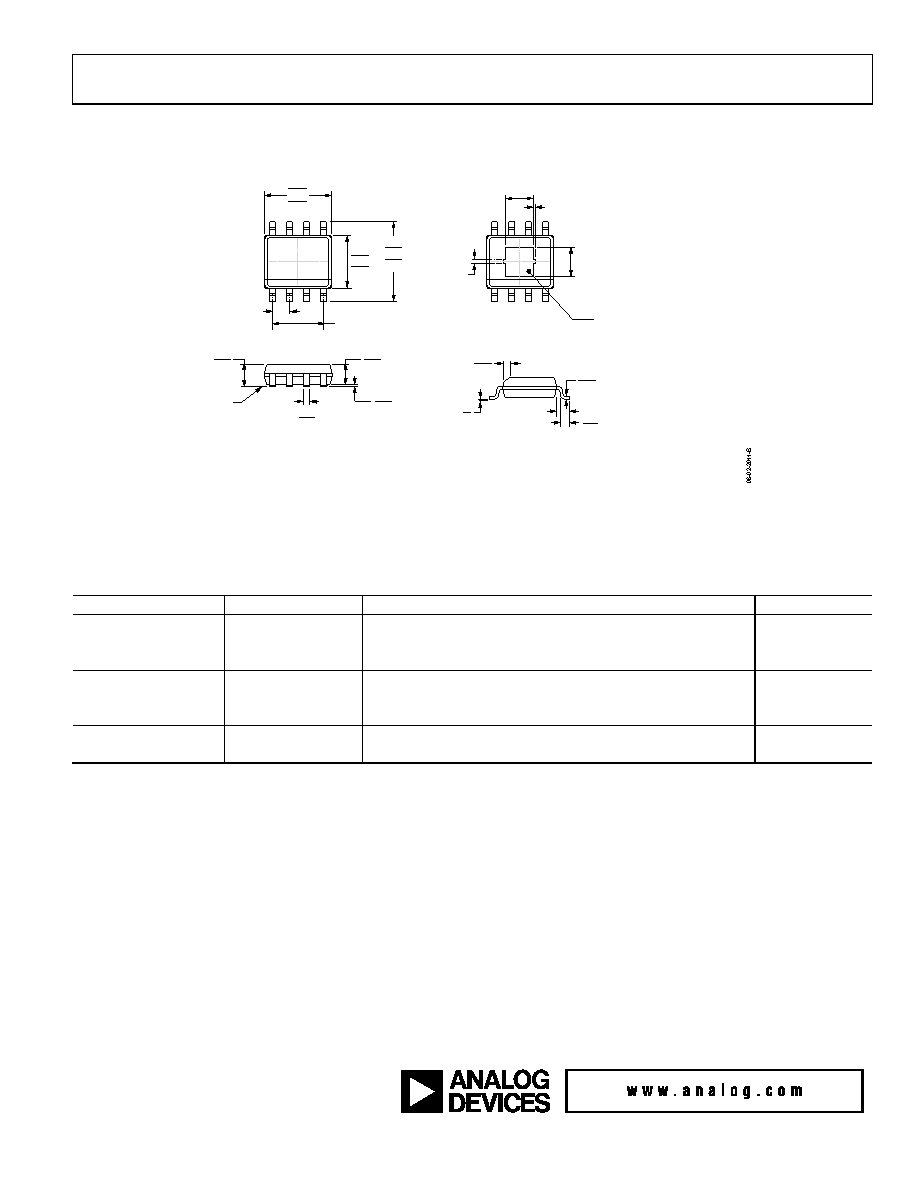

OUTLINE DIMENSIONS
COMPLIANT TO JEDEC STANDARDS MS-012-A A
1.27
0.40
1.75
1.35
2.29
2.29
0.356
0.457
4.00
3.90
3.80
6.20
6.00
5.80
5.00
4.90
4.80
0.10 MAX
0.05 NOM
3.81 REF
0.25
0.17
8°
0°
0.50
0.25
45°
COPLANARITY
0.10
1.04 REF
8
1
4
5
1.27 BSC
SEATING
PLANE
FOR PROPER CONNECTION OF
THE EXPOSED PAD, REFER TO
THE PIN CONFIGURATION AND
FUNCTION DESCRIPTIONS
SECTION OF THIS DATA SHEET.
BOTTOM VIEW
TOP VIEW
0.51
0.31
1.65
1.25
Figure 113. 8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP]
Narrow Body
(RD-8-1)
Dimensions shown in millimeters
ORDERING GUIDE
Model1
Temperature Range
Package Description
Package Option
ADA4625-1ARDZ
−40°C to +125°C
8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP]
RD-8-1
ADA4625-1ARDZ-R7
−40°C to +125°C
8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP]
RD-8-1
ADA4625-1ARDZ-RL
−40°C to +125°C
8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP]
RD-8-1
ADA4625-2ARDZ
−40°C to +125°C
8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP]
RD-8-1
ADA4625-2ARDZ-R7
−40°C to +125°C
8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP]
RD-8-1
ADA4625-2ARDZ-RL
−40°C to +125°C
8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP]
RD-8-1
EVAL-ADA4625-1ARDZ
Evaluation Board
EVAL-ADA4625-2ARDZ
Evaluation Board
1 Z = RoHS Compliant Part.
©2017–2019 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D15893-0-
6/19(A)
