HM6543
P.3
DUAL VOLTAGE
HIGH BRIGHTNESS
EL DRIVER IC

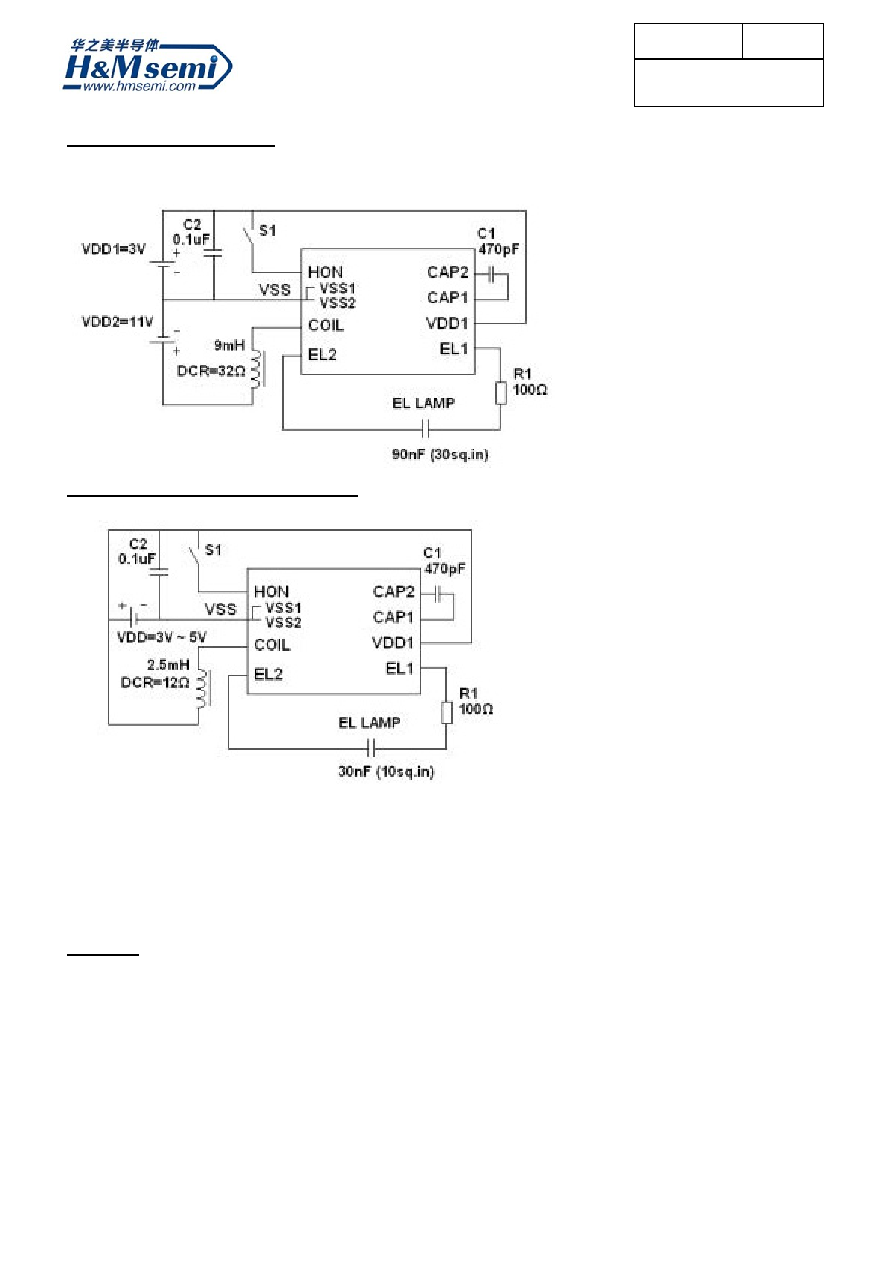

APPLICATION CIRCUIT
1. LARGER SIZE EL LAMP (30sq. in EL Lamp )
SMALLER EL LAMP (10sq. in EL Lamp )
HM6543
NOTES
1. Larger inductance values may be required depending upon supply impedance.
2. Electrolytic capacitor 10uF~47uF is connected across HON & VSS for delay function.
3. S1 is connected to VDD1 to enable.
