SPEC NO: DSAI2368

REV NO: V.6B

ATE: JUN/21/2016

PAGE: 2 OF 6

APPROVED: Wynec

CHECKED: Allen Liu

DRAWN: L.T.Zhang

ERP: 1201002822

Handling Precautions

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic

significantly reduces thermal stress, it is more susceptible to damage by external mechanical force.

As a result, special handling precautions need to be observed during assembly using silicone encapsulated

LED products. Failure to comply might lead to damage and premature failure of the LED.

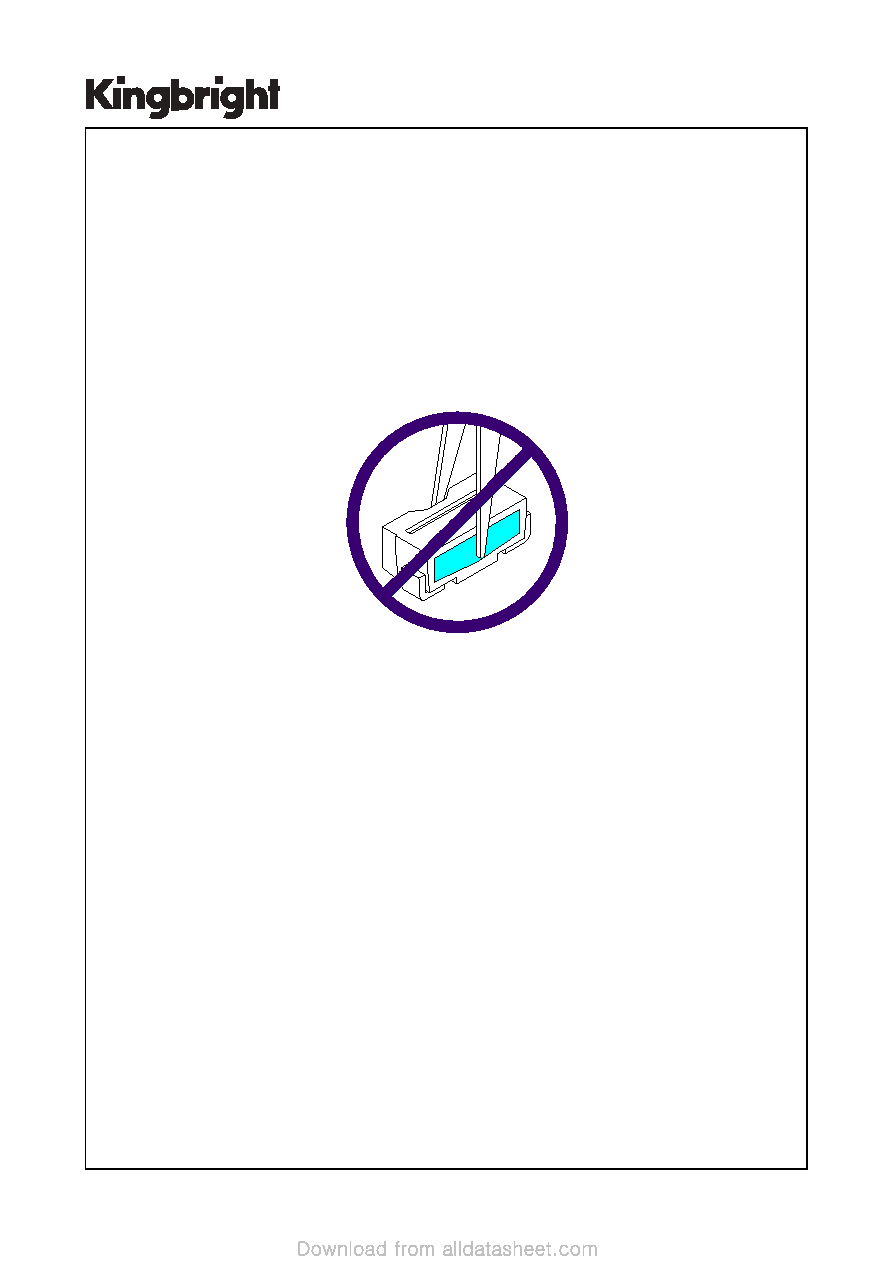

1. Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

2. As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plating of

leadframe. Special care should be taken if an LED with silicone encapsulation is to be used near such substances.
