AS03908AS-R datasheet(1/2 Pages) PUIAUDIO

부품명	AS03908AS-R

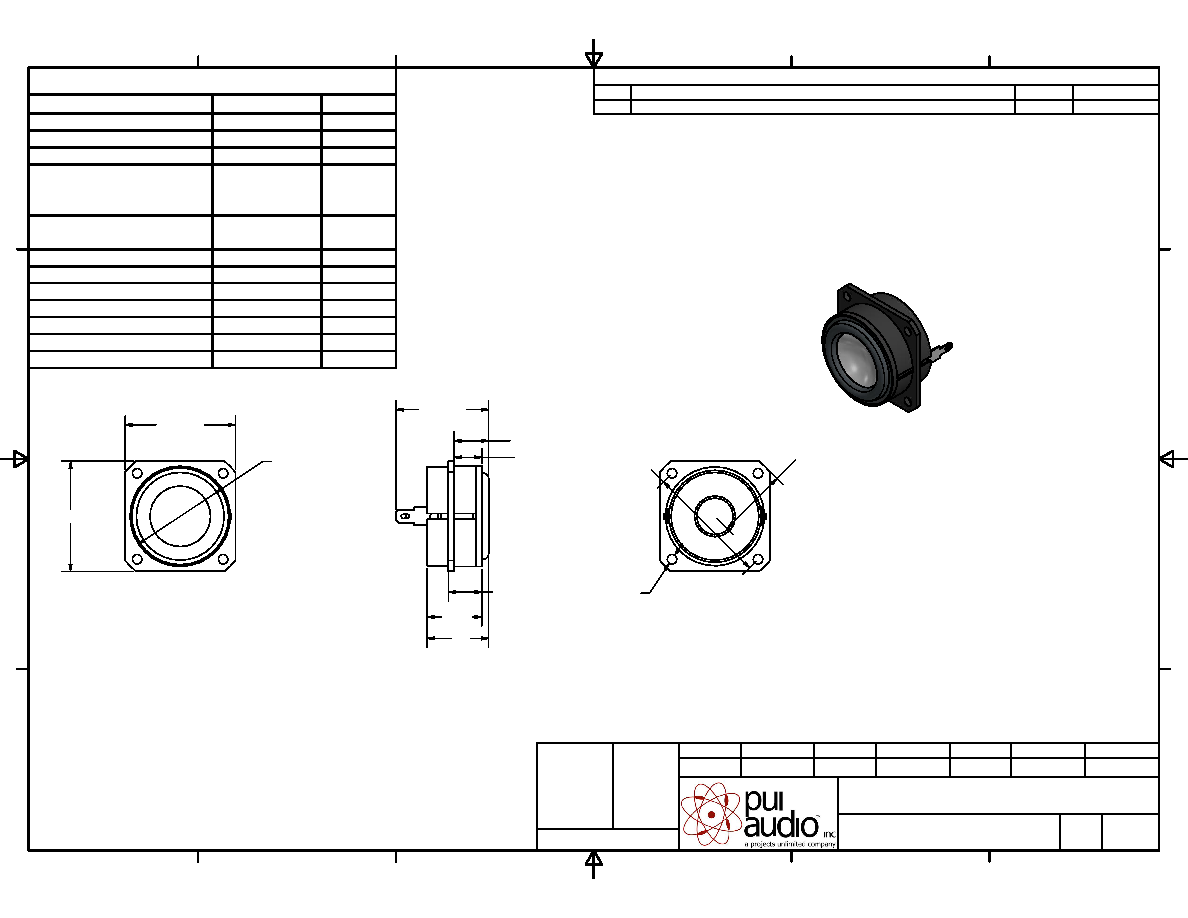

상세설명	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	2 Pages

Scroll/Zoom	100%

제조업체	PUIAUDIO [PUI audio inc.]

홈페이지	http://www.puiaudio.com/

Logo

1 / 2 page

Speaker

AS03908AS-R

M.V.

B.R.

4/22/2016

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

4/22/2016

Date

4/22/2016

Date

4/22/2016

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS03908AS-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

2/19/16

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

5

W

MAX INPUT POWER

8

W

IMPEDANCE

8

15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 0.6, 0.8, 1.0, 1.2 kHz)

78

3

dBA

DISTORTION (MAX. @ 1W/1

kHz)

5%

-

RESONANT FREQUENCY

250

20%

Hz

FREQUENCY RANGE

130 ~ 20,000

Hz

HOUSING MATERIAL

ABS

-

CONE MATERIAL

ALUMINUM

-

MAGNET MATERIAL

NdFeB

-

OPERATING TEMPERATURE

-25 ~ +60

C

WEIGHT

48.5

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

39 0.3

9.9

11.9

12.5

22

29 0.5

25

3.4 - 4

43

19.4

35.5

0.3
