AS09208AR-R 데이터시트(PDF) 1 Page - PUI audio inc.

부품명 AS09208AR-R
상세설명  ALL DIMENSIONS ARE IN MILLIMETERS
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  PUIAUDIO [PUI audio inc.]
홈페이지  http://www.puiaudio.com/
Logo PUIAUDIO - PUI audio inc.

AS09208AR-R 데이터시트(HTML) 1 Page - PUI audio inc.

  AS09208AR-R Datasheet HTML 1Page - PUI audio inc. AS09208AR-R Datasheet HTML 2Page - PUI audio inc.
Zoom Inzoom in Zoom Outzoom out
 1 / 2 page
background image

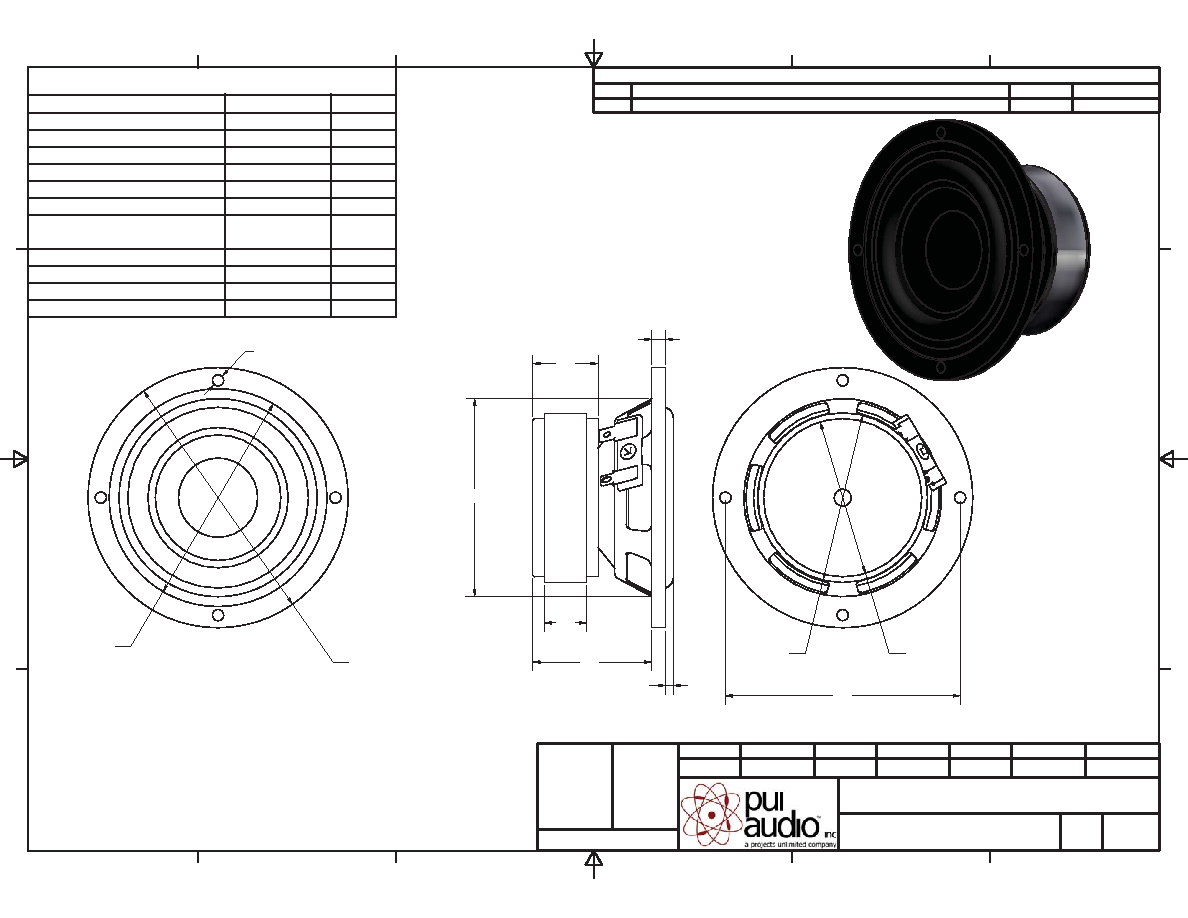

Speaker
AS09208AR-R
M.V.
B.R.
B.R.
7/27/2016
-
Designed by
Checked by
Approved by
Drawn Date
1 / 1
Edition
Sheet
Date
7/27/2016
Date
7/27/2016
Date
7/27/2016
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
AS09208AR-R.idw
A3
SIZE
REVISION HISTORY
LTR
DESCRIPTION
DATE
APPROVED
-
RELEASED FROM ENGINEERING
7/27/2016
SPECIFICATIONS
PARAMETERS
VALUES
UNITS
RATED INPUT POWER
10
W
MAX INPUT POWER
15
W
IMPEDANCE
8± 15%
OHM
OUTPUT SPL @ 2.83V/1M
82 ± 3
dBA
RESONANT FREQUENCY
90 ± 20%
Hz
FREQUENCY RANGE
90 ~ 15,000
Hz
FRAME MATERIAL
STAMPED
STEEL
-
CONE MATERIAL
ALUMINUM
-
MAGNET MATERIAL
FERRITE
-
OPERATING TEMPERATURE
-20~ +60
°C
WEIGHT
360
grams
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
©2003, Projects Unlimited Inc.
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2011/65/EU COMPLIANT.
4 (X4)
92
77
70
5
15
23
42
55.9
60
2.6
83
