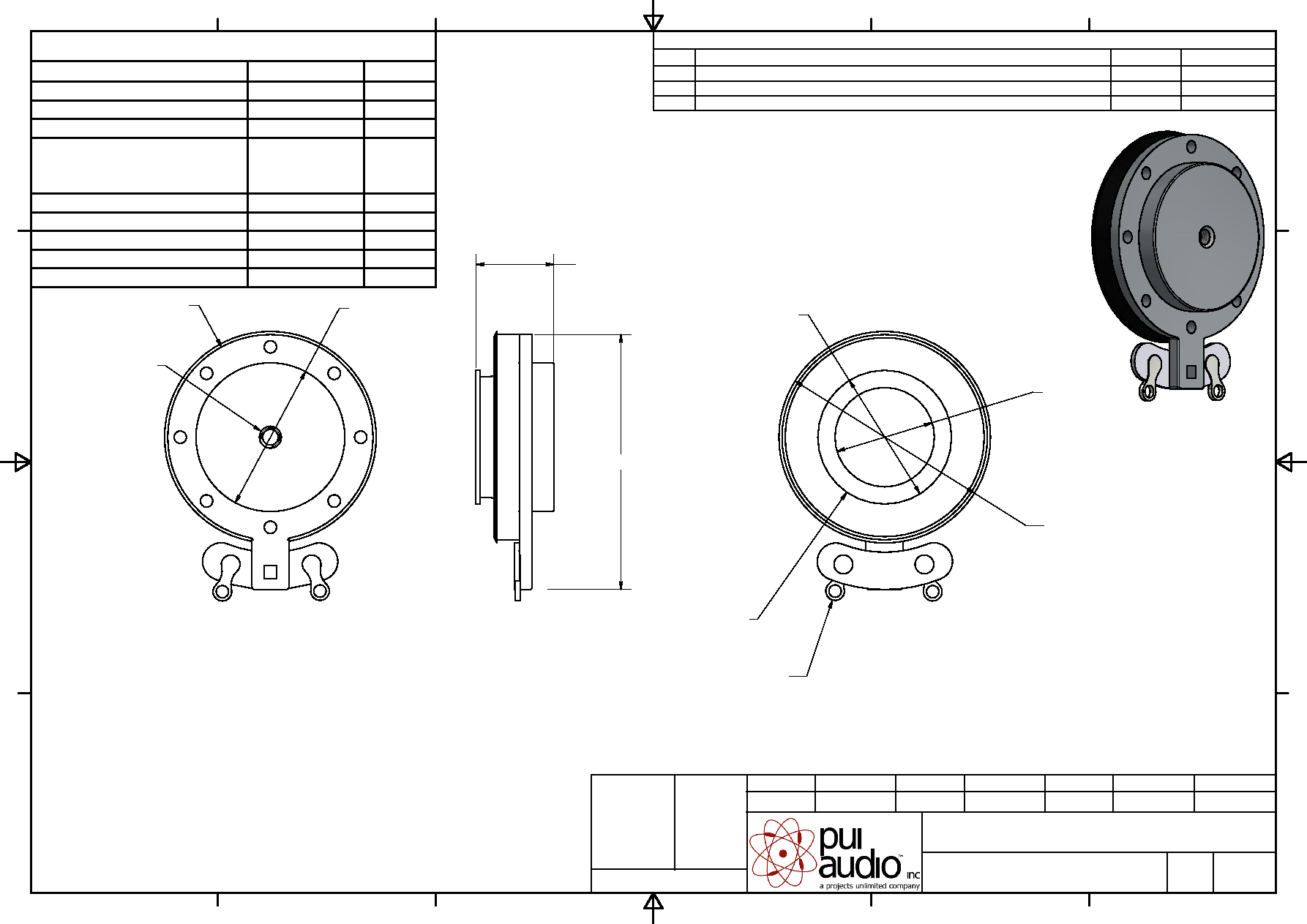

Exciter

ASX03304-R

M.V.

M.V.

B.R.

5/18/2016

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

5/18/2016

Date

5/18/2016

Date

5/18/2016

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

ASX03304-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

5/18/16

A

ADDED NOTE 4

6/27/16

B.R.

B

ADDED M3 THREAD AND POSITIVE TERMINAL INDICATION

1/16/18

M.V.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

3

W

MAX INPUT POWER

5

W

IMPEDANCE

4 15%

OHM

AVG. SPL 1W/0.1M ON 4MM

THICK PLA PANEL

(AT 0.5, 1.0, 2.0, 5.0 kHz)

88

dBA

RESONANT FREQUENCY

550 20%

Hz

FREQUENCY RANGE

Fo~ 10,500

Hz

MAGNET MATERIAL

NdFeB

-

OPERATING TEMPERATURE

-20 ~ +60

C

WEIGHT

30

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

EXTERNAL FORCE, SHOCK, OR VIBRATION, PUI AUDIO

RECOMMENDS SOLID MECHANICAL

REINFORCEMENT TO ENSURE RIGID COUPLING BEYOND

THAT PROVIDED BY THE

3M

VHB

F-9473PC DOUBLE-SIDED TAPE.

41

0.5

12.5

0.5

23.9

0.2

16.5

R

0.3

34

21.5

0.3

16

0.3

MOUNTING RING

3M

VHB

DOUBLE-SIDED TAPE

M3 THREAD

2.5MM DEEP

POSITIVE (+)

TERMINAL
