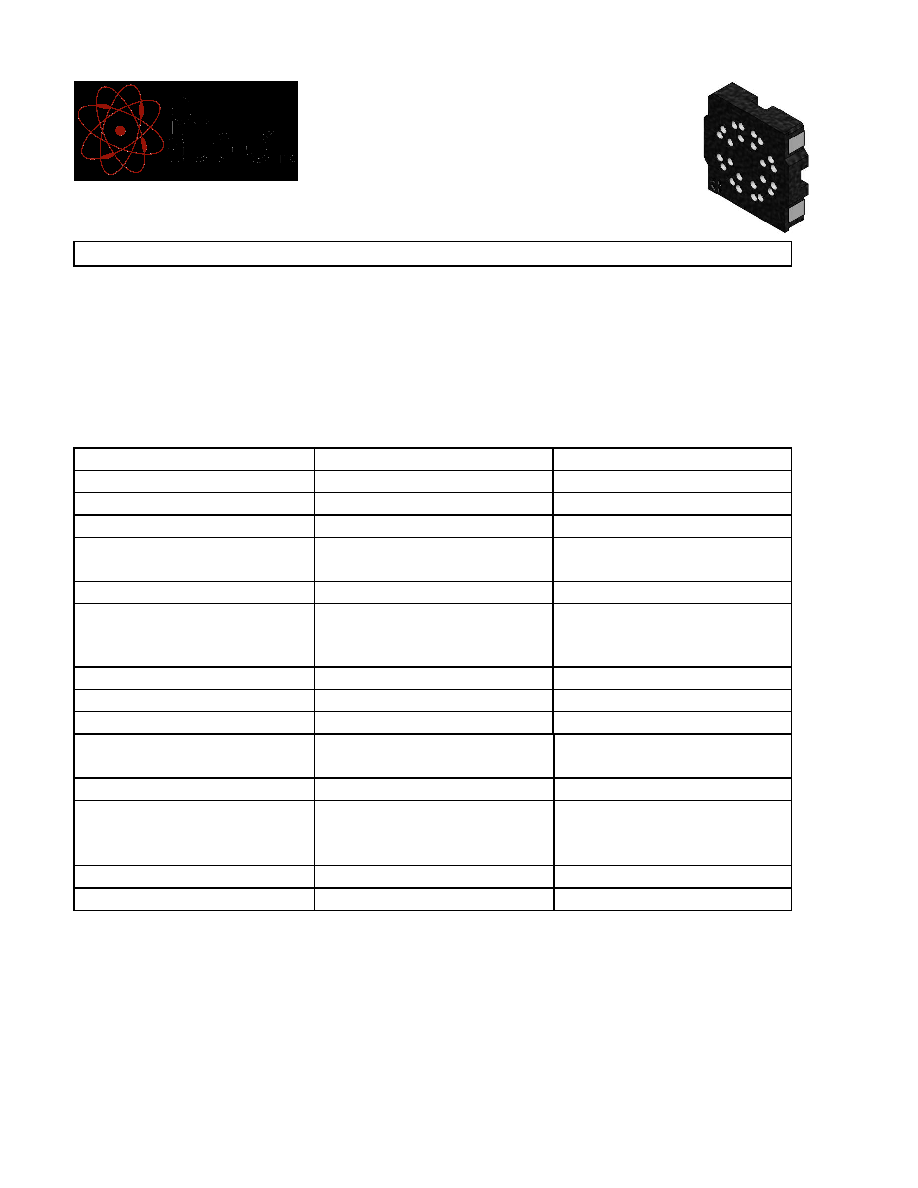

Data Sheet

SMS-2008MS-R

Features:

•

Pick-and-place, reflow capable speaker with good output

•

Great frequency response in a small package

•

Grill is integrated into the housing for speaker protection

Speaker Specifications

Parameters

Values

Units

Rated Input Power

0.8

Watts

Max Input Power

1.0

Watts

Impedance

8±15%

Ohms

Sensitivity @ 0.1W/0.1M

(Avg 1.0, 1.6, 2.0, 3.2 kHz)

90±3

dB

Resonant Frequency

850±20%

Hz

Frequency Range

(based on -10 dB limits on

frequency response graph)

550 ~ 20,000

Hz

Frame Material

LCP

-

Magnet Material

SmCo

-

Weight

1.5

Grams

Acceptable Soldering Methods

Hand Solder, Reflow Solder

See below for soldering

information

Environmental Compliances

RoHS

-

Polarity

Diaphragm moves outward

when positive voltage is applied

to positive terminal

-

Storage Temperature

-40 ~ +85

°C

Operating Temperature

-40 ~ +85

°C
