Dual Output

+Vo

Bipolar

Push-Pull

Inverter

+Vin

-Vin

Com.

-Vo

Single Output

+Vo

Bipolar

Push-Pull

Inverter

+Vin

-Vin

-Vo

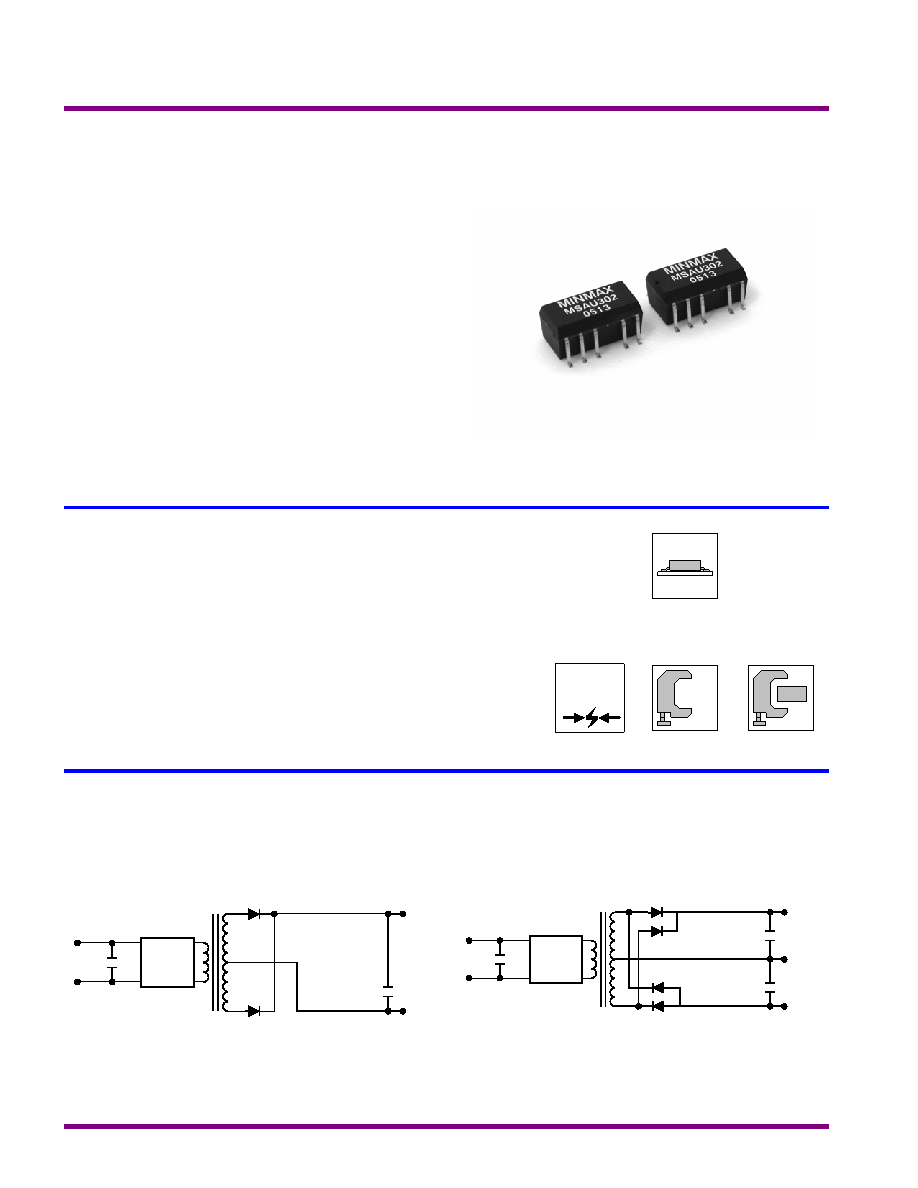

Block Diagram

Low Profile

Low Cost

$

I/O Isolation

3000

VDC

SMD

Minmax's MSAU300 1W DC/DC's are in "gull-wing" SMT package,

weigh a mere 2.2 grams and meet 245]/10sec in solder-reflow for lead

free process.

The series is designed to provide high levels of isolation 3000VDC. It

consists of 18 models with input voltages of 5V,12V and 24VDC which

offers standard output voltages of 5V, 12V, 15V, {5V, {12V and

{15VDC for the choice. Their impressive guaranteed efficiencies enable

all models to deliver their fully rated output power from -40] to +85]

without heat sinking or forced-air cooling.

The MSAU300 series is an excellent selection for a variety of

applications including data communication equipments, distributed power

systems, telecommunication equipments and industrial robot systems.

The MSAU300 units are available in tape and reel package.

Internal SMD Construction

UL 94V-0 Package Material

Lead Frame Technology

Temperature Performance -40] to +85]

Output 5, 12, 15, {5, {12 and {15VDC

Input 5, 12 and 24VDC

Low Cost

MTBF > 2,000,000 Hours

3000VDC Isolation

Efficiency up to 81%

Key Features

1W, High Isolation SMD, Single & Dual Output DC/DC Converters

MSAU300 Series

REV:0 2005/04
