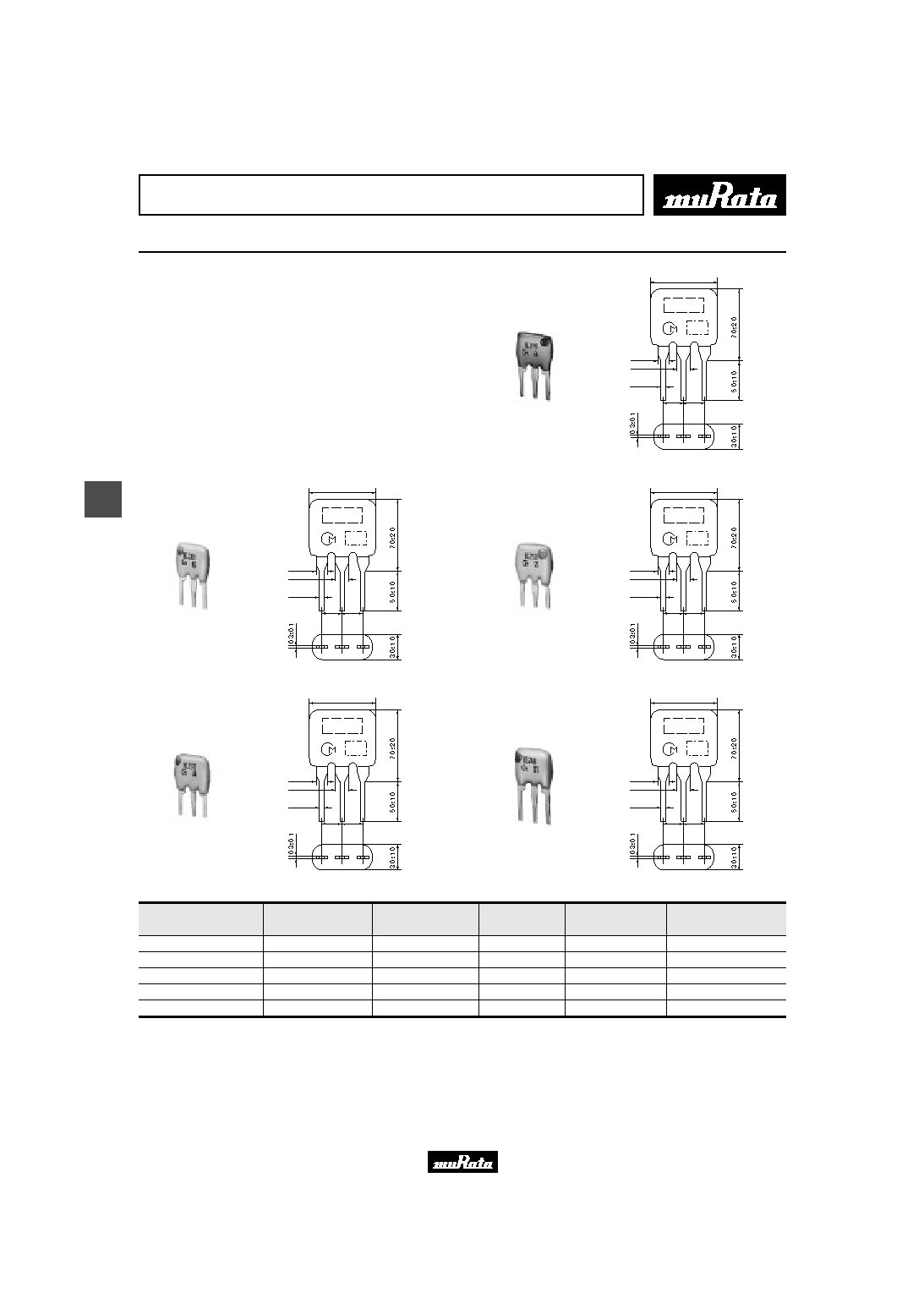

Ceramic Filters (CERAFILr) for FM Receivers

CERAFILr Lower Spurious Response Type

SFELA10M7 series for FM-receivers are monolithic type

ceramic filters which use the energy trapped thickness

vibration-mode of the piezoelectric ceramic.

s Features

1. This type has lower spurious response compared to

the standard filters.

2. This types are suitable for higher spurious

suppression radio.

(1)

(2)

(3)

7.5

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

MARKING

EIAJ

CODE

SFELA10M7KAB0-B0

(1)

(2)

(3)

7.5

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

MARKING

EIAJ

CODE

SFELA10M7JAB0-B0

(1)

(2)

(3)

7.5

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

MARKING

EIAJ

CODE

SFELA10M7HAB0-B0

(1)

(2)

(3)

7.5

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

MARKING

EIAJ

CODE

SFELA10M7GAB0-B0

(1)

(2)

(3)

7.5

±2.0

2.5

±0.2

0.5

±0.1

1.7

±0.1

1.38

±0.2

2.5

±0.2

MARKING

EIAJ

CODE

SFELA10M7FAB0-B0

Part Number

Center Frequency (fo)

(MHz)

3dB Bandwidth

(kHz)

Attenuation

(kHz)

Insertion Loss

(dB)

Spurious Attenuation

(dB)

SFELA10M7KAB0-B0

10.700

±30kHz

within110

±30kHz

350 max.

7.0

±2.0dB

45 min.

SFELA10M7JAB0-B0

10.700

±30kHz

within150

±40kHz

380 max.

5.5

±2.0dB

45 min.

SFELA10M7HAB0-B0

10.700

±30kHz

within180

±40kHz

520 max.

5.0

±2.0dB

45 min.

SFELA10M7GAB0-B0

10.700

±30kHz

within230

±50kHz

570 max.

3.0

±2.0dB

45 min.

SFELA10M7FAB0-B0

10.700

±30kHz

within280

±50kHz

650 max.

3.0

±2.0dB

45 min.

Area of Attenuation : [within 20dB]

Area of Spurious Attenuation : [within 9MHz to 12MHz]

Center frequency(fo) defined by the center of 3dB bandwidth.
