TPS16632 데이터시트(PDF) 32 Page - Texas Instruments

부품명 TPS16632
상세설명  TPS1663x 60-V, 6-A eFuse with Adjustable Output Power Limiting
PDF  43 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  TI1 [Texas Instruments]
홈페이지  http://www.ti.com
Logo TI1 - Texas Instruments

TPS16632 데이터시트(HTML) 32 Page - Texas Instruments

Back Button TPS16632 Datasheet HTML 28Page - Texas Instruments TPS16632 Datasheet HTML 29Page - Texas Instruments TPS16632 Datasheet HTML 30Page - Texas Instruments TPS16632 Datasheet HTML 31Page - Texas Instruments TPS16632 Datasheet HTML 32Page - Texas Instruments TPS16632 Datasheet HTML 33Page - Texas Instruments TPS16632 Datasheet HTML 34Page - Texas Instruments TPS16632 Datasheet HTML 35Page - Texas Instruments TPS16632 Datasheet HTML 36Page - Texas Instruments Next Button
Zoom Inzoom in Zoom Outzoom out
 32 / 43 page
background image
TOP Layer
GND Plane
BOTTOM Layer GND Plane
BOTTOM Layer GND Plane
Via to Bottom Layer
Top Layer
Top Layer GND Plane
Bottom layer GND plane
VOUT PLANE
D2
OVP
N.C
IN
P_IN
IN
SHDN
OUT
OUT
GND
N.C
ILIM
dVdT
PGOOD
MODE
IN
N.C
UVLO
IMON
FLT
OUT
VIN PLANE
High
Frequency
Bypass cap
D1
32
TPS1663
SLVSET9D – SEPTEMBER 2018 – REVISED AUGUST 2019
www.ti.com
Product Folder Links: TPS1663
Submit Documentation Feedback
Copyright © 2018–2019, Texas Instruments Incorporated

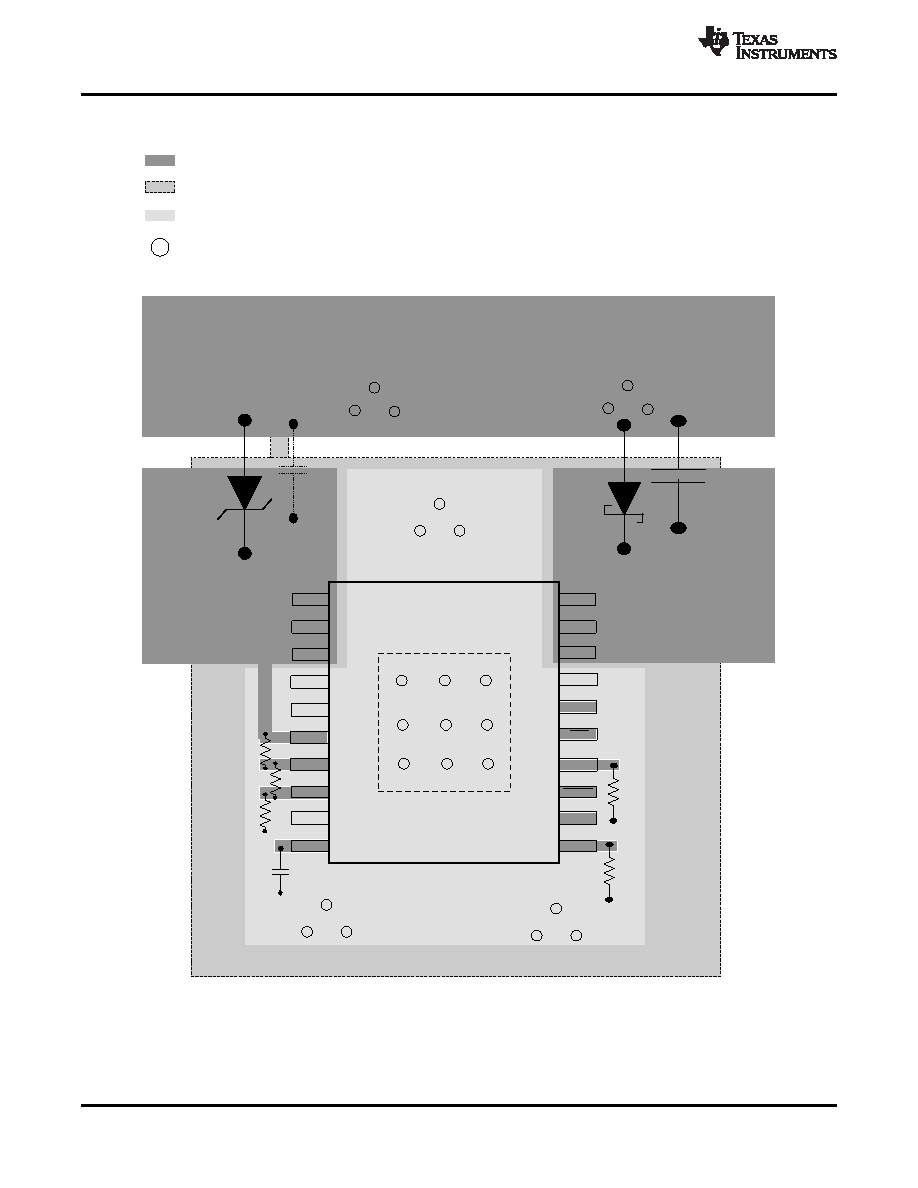

Layout Example (continued)
Figure 40. Typical PCB Layout Example with HTSSOP Package with a 2 Layer PCB
