CY8CKIT-059 PSoC® 5LP Prototyping Kit Guide, Doc. #: 001-96498 Rev. *G

Introduction

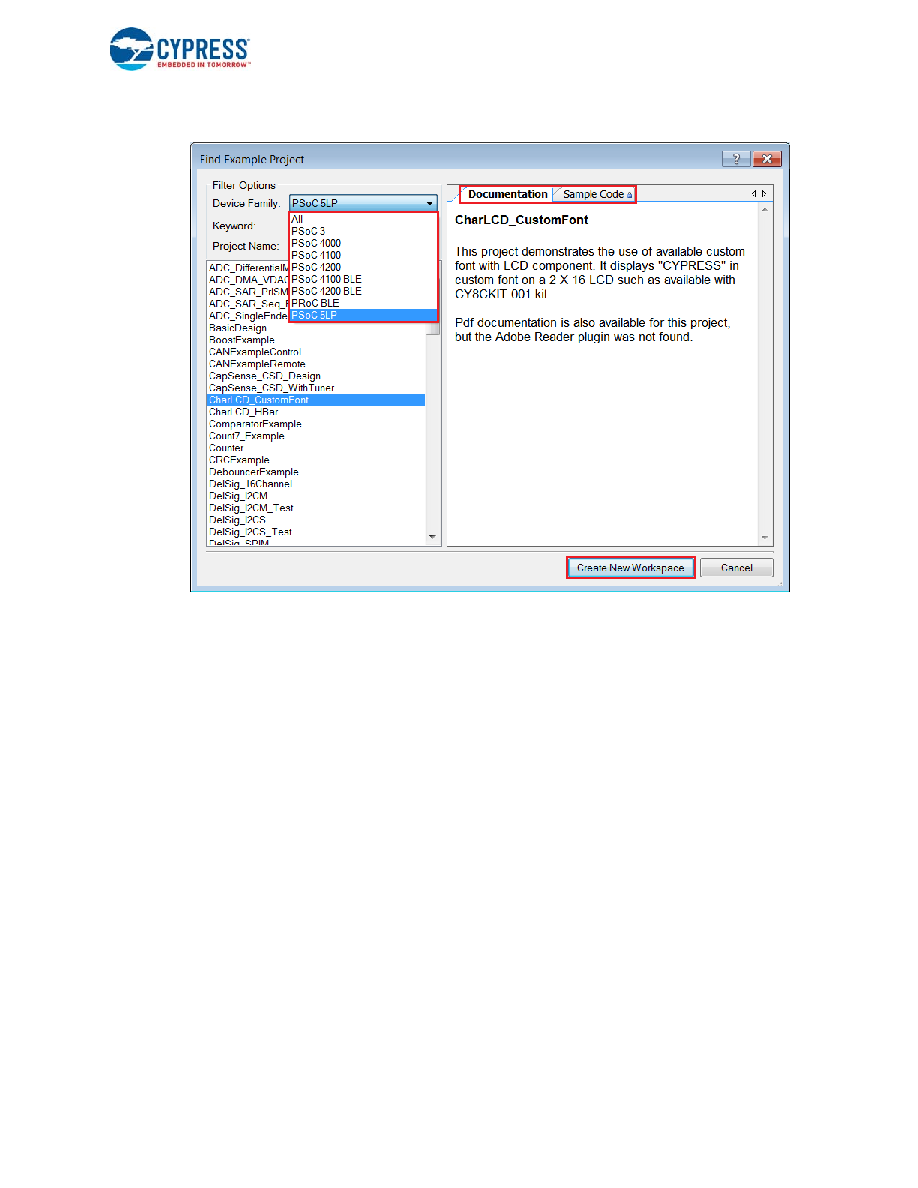

Figure 1-4. Code Example Projects with Sample Code

1.2.2

Kit Code Examples

This kit includes a number of code examples, which can be used to quickly evaluate the functionality

of this kit. These examples are described in the Code Examples chapter on page 31.

1.2.3

PSoC Creator Help

Visit the PSoC Creator home page to download the latest version of PSoC Creator. Then, launch

PSoC Creator and navigate to the following items:

■

Quick Start Guide: Choose Help > Documentation > Quick Start Guide. This guide gives you

the basics for developing PSoC Creator projects.

■

Simple Component example projects: Choose File > Open > Example projects. These

example projects demonstrate how to configure and use PSoC Creator Components.

■

Starter designs: Choose File > New > Project > PSoC 5LP Starter Designs. These starter

designs demonstrate the unique features of PSoC 5LP.

■

System Reference Guide: Choose Help > System Reference > System Reference Guide.

This guide lists and describes the system functions provided by PSoC Creator.

■

Component datasheets: Right-click a Component and select Open Datasheet, as shown in

Figure 1-5. Visit the PSoC 5LP Component Datasheets page for a list of all PSoC 5LP Compo-

nent datasheets.

■

Document Manager: PSoC Creator provides a document manager to help you to easily find and

review document resources. To open the document manager, choose the menu item Help >

Document Manager.
