1 / 5 page

1

Specifications

• Currentrating:Signalcircuit;1.0AAC/DC(AWG#26)

• Voltagerating:Signalcircuit;50VAC/DC

• Temperaturerange:-25℃to+85℃

(including temperature rise in applying

electrical current)

• Contactresistance:

Signal circuit Initial value/ 40 mΩ max.

After environmental tests/ 60 mΩ max.

• Insulationresistance:500MΩmin.

• Withstandingvoltage:Signalcircuit 500VAC

• Applicablewire:

Plug signal circuit Conductor size/ AWG #28 to #26

Insulation O.D./ 0.78 to 1.1 mm

Receptacle signal circuit Applicable socket/ CZ, CZH connectors

• Guaranteeofrepeatedmating/unmatingperformance:100cycles

* In using the products, refer to “Handling Precaution for Terminal

and Connector” described on our website (Technical documents

of Product information page).

* Contact JST for details.

* RoHS2 compliance

Standards

Recognized E 60389

R 5025872

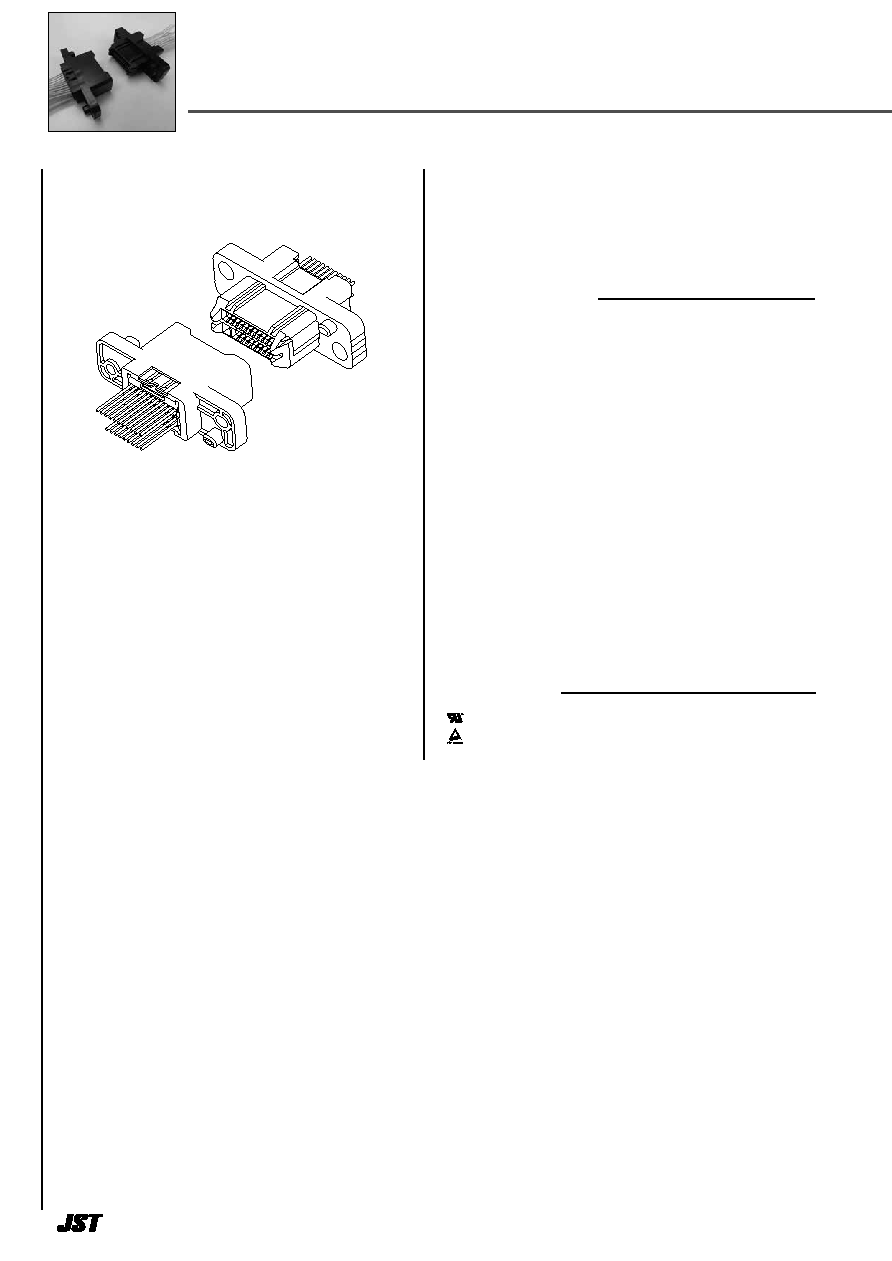

This connector is a dual row type drawer

connector with combined signal to connect

the units and absorbs misalignment

between units.

This is drawer connector suitable for the

place which is few in insertion and

withdrawal cycles.

Signal 20-circuit

RWMCONNECTOR

RWM CONNECTOR

Disconnectable crimp style Wire-to-wire connectors

RWM CONNECTOR
