M95512-W, M95512-R

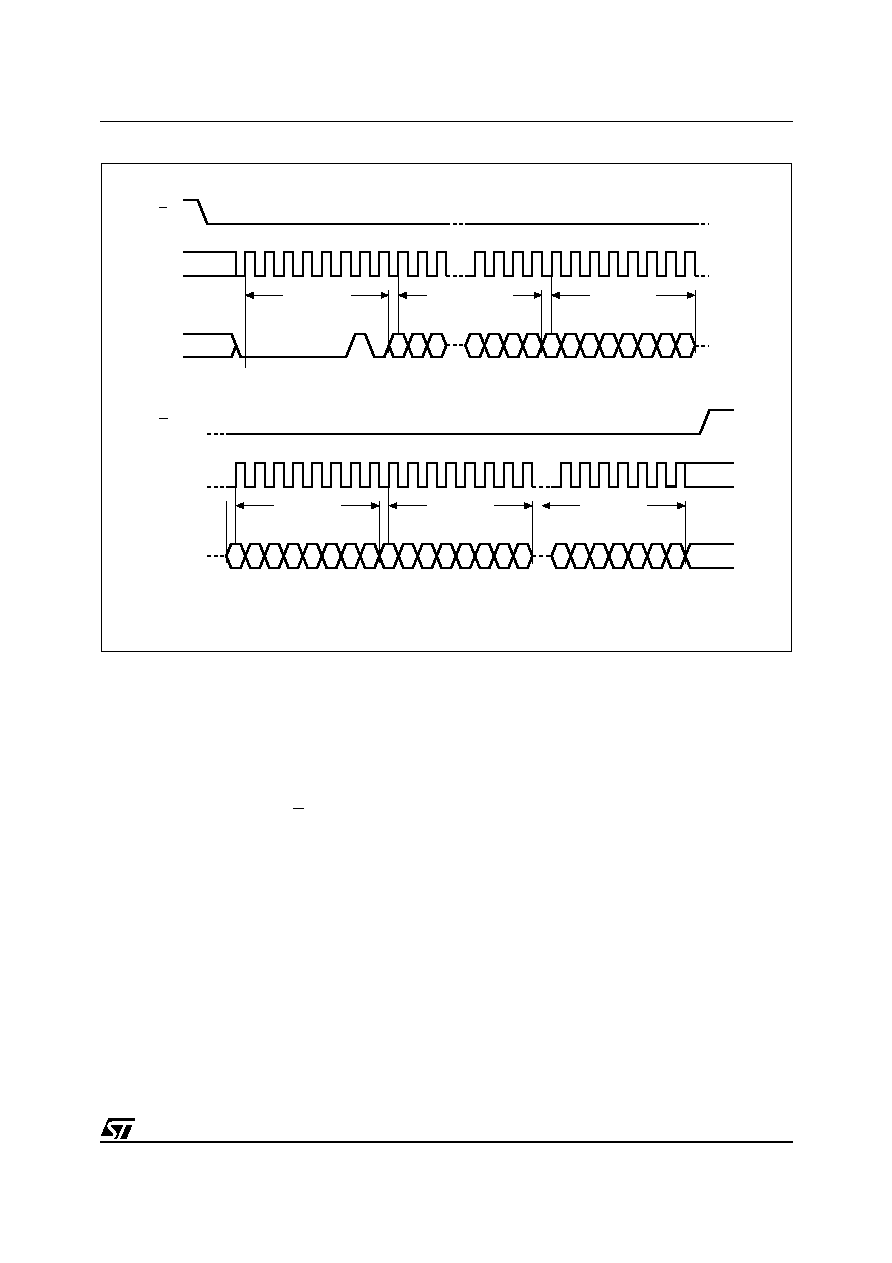

Figure 14. Page Write (WRITE) Sequence

POWER-UP AND DELIVERY STATE

Power-up State

After Power-up, the device is in the following state:

–

Standby Power mode

–

Deselected (after Power-up, a falling edge is

required on Chip Select (S) before any

instructions can be started).

–

Not in the Hold Condition

–

Write Enable Latch (WEL) is reset to 0

–

Write In Progress (WIP) is reset to 0

The SRWD, BP1 and BP0 bits of the Status Reg-

ister are unchanged from the previous power-

down (they are non-volatile bits).

Initial Delivery State

The device is delivered with the memory array set

at all 1s (FFh). The Status Register Write Disable

(SRWD) and Block Protect (BP1 and BP0) bits are

initialized to 0.

AI01796D

35 36 37 38 39 40 41 42

44 45 46 47

3456789 10

20 21 22 23 24 25 26 27

14 13

3210

28 29 30

Instruction

16-Bit Address

765432

Data Byte 1

765432

Data Byte 2

765432

Data Byte 3

65432

Data Byte N
