Nexperia
ES2DP
200 V, 2 A hyperfast PN-rectifier
ES2DP
All information provided in this document is subject to legal disclaimers.
© Nexperia B.V. 2017. All rights reserved
Product data sheet
25 August 2017
10 / 14
SOD128
Wave soldering footprint information
sod128_fw
occupied area
dummy track (solder resist and Cu free)
solder resist
solder lands
Issue date
Dimensions in mm
17-06-06
17-06-07
4.2
(2×)
5.7
4.35
(2×)
3.5 (2×)
3.65 (2×)
2.3
10.2
5.8

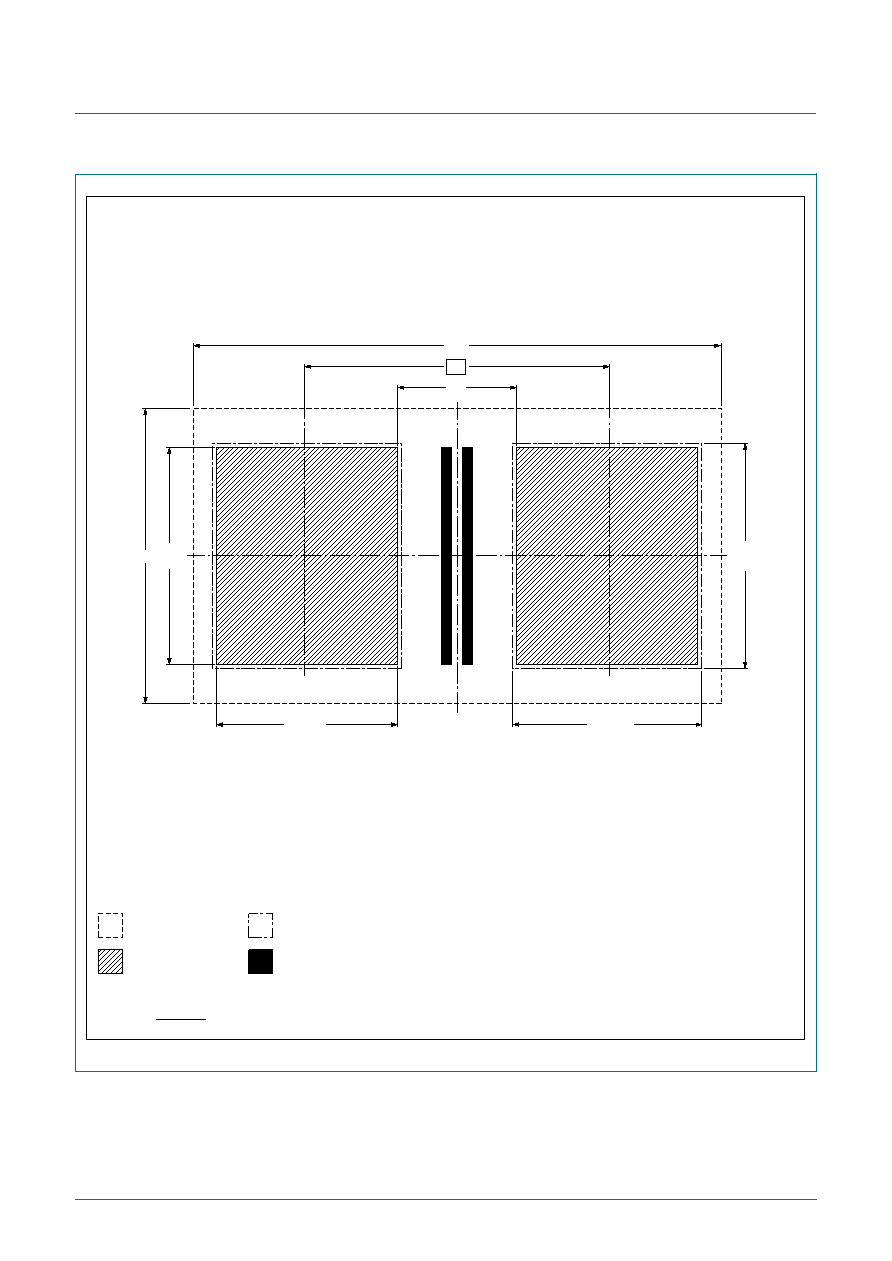

Fig. 17. Wave soldering footprint for CFP5 (SOD128)
