PEMIxCSP family

4-, 6- and 8-channel passive filter network with ESD protection

2.

Pinning information

2.1 Pinning

2.2 Pin description

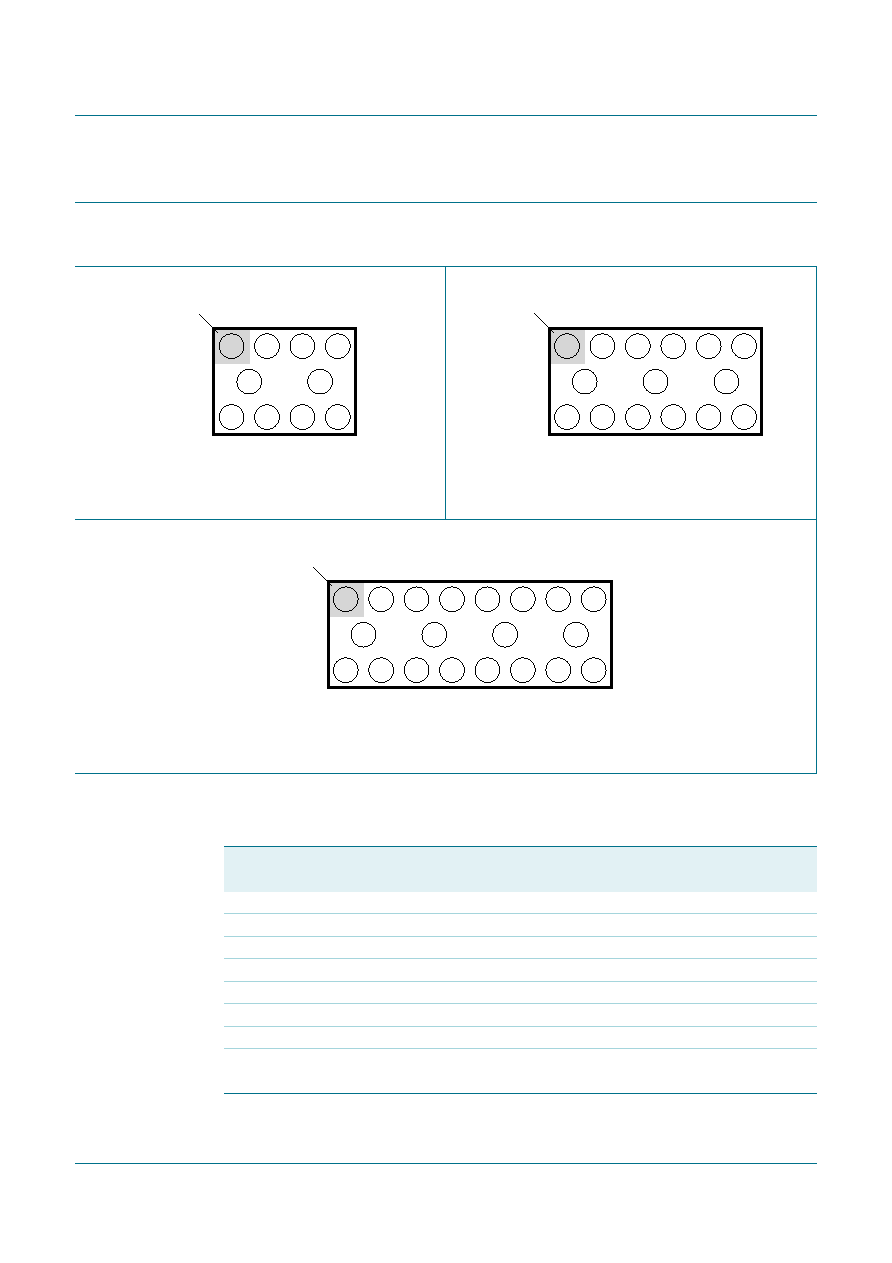

Fig 1.

PEMI4CSP: pin configuration

Fig 2.

PEMI6CSP: pin configuration

Fig 3.

PEMI8CSP: pin configuration

001aak062

transparent top view,

solder balls facing down

bump A1

index area

A

B

C

B1

2

1

B2

4

3

transparent top view,

solder balls facing down

bump A1

index area

A

B

C

B1

2

1

B2

4

3

001aak063

B3

6

5

transparent top view,

solder balls facing down

bump A1

index area

A

B

C

B1

2

1

B2

4

3

B3

6

5

001aak064

B4

8

7

Table 1.

Pinning

Pin

Description

PEMI4CSP

PEMI6CSP

PEMI8CSP

A1 and C1

A1 and C1

A1 and C1

filter channel 1

A2 and C2

A2 and C2

A2 and C2

filter channel 2

A3 and C3

A3 and C3

A3 and C3

filter channel 3

A4 and C4

A4 and C4

A4 and C4

filter channel 4

-

A5 and C5

A5 and C5

filter channel 5

-

A6 and C6

A6 and C6

filter channel 6

-

-

A7 and C7

filter channel 7

-

-

A8 and C8

filter channel 8

B1 and B2

B1, B2 and B3

B1, B2, B3 and B4

ground (GND)
