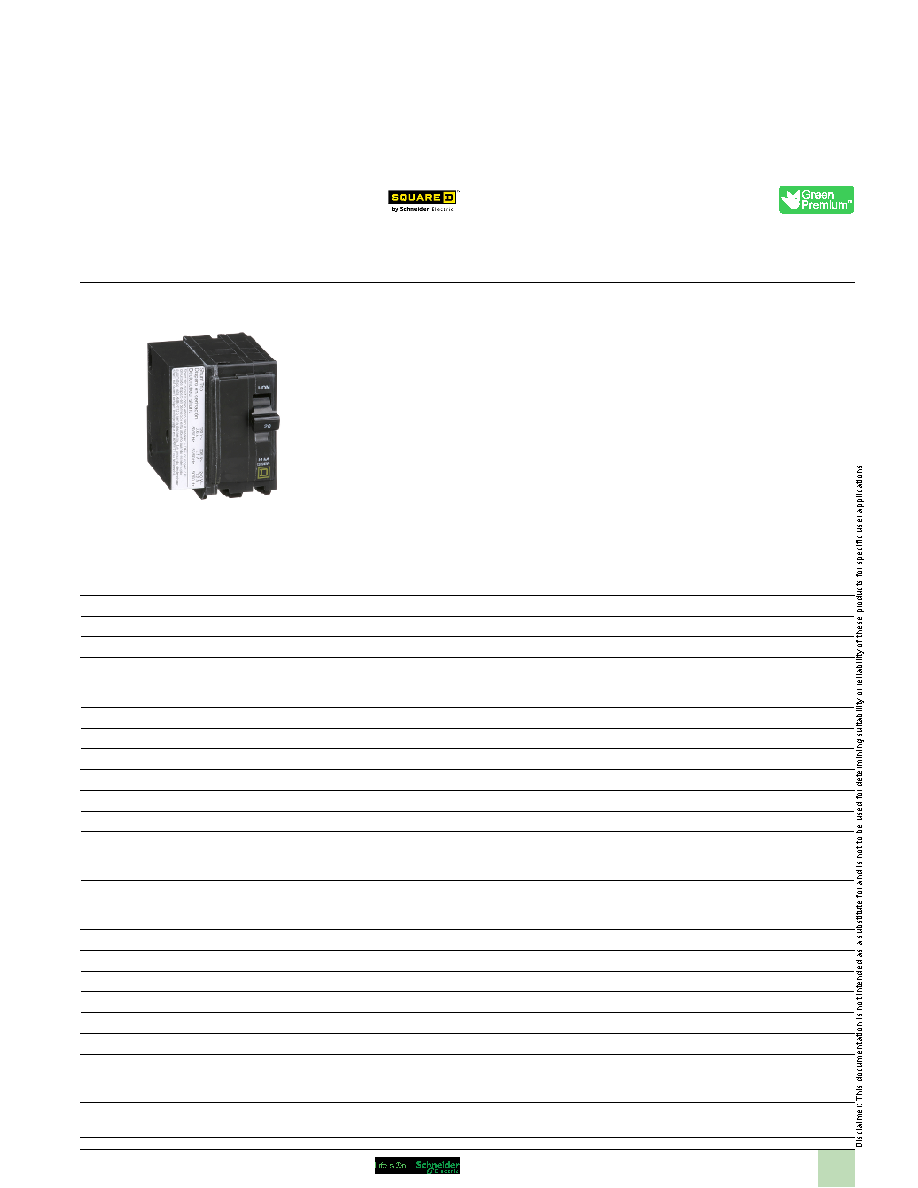

Product data sheet

Characteristics

QO2201021

QO mini breaker, 20 A, 2 pole, 120/240 V, 10 kA,

plug in, shunt trip

Product availability : Stock - Normally stocked in distribution facility

Price** : 256.00 USD

Main

Product

Miniature circuit-breaker

Range

QO

Current Rating

20 A

Voltage Rating

120/240 V AC

120 V AC

48 V DC

Mounting Type

Plug-in

Number of Poles

2P

Circuit Breaker Type

Standard

Ratings

HACR rated

Electrical Connection

Pressure plate

Options

Shunt trip 120/208/240 V AC

Complementary

Inturrupt Rating

10 kA 120/240 V AC 50/60 Hz

10 kA 120 V AC 50/60 Hz

5 kA 48 V DC

Number of Panel Spaces

3

Wire Size

AWG 14...AWG 8 copper or aluminium

Tightening torque

44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) AWG 8...AWG 2)

Height

76.20 mm (3 in)

Depth

73.91 mm (2.91 in)

Width

57.15 mm (2.25 in)

Environment

Certifications

UL listed

CSA

Dec 6, 2019
