MC34063A MC33063A
8
MOTOROLA ANALOG IC DEVICE DATA
5.45
′′
2.500
′′
(Top view, copper foil as seen through the board from the component side)
(Top View, Component Side)
*Optional Filter.

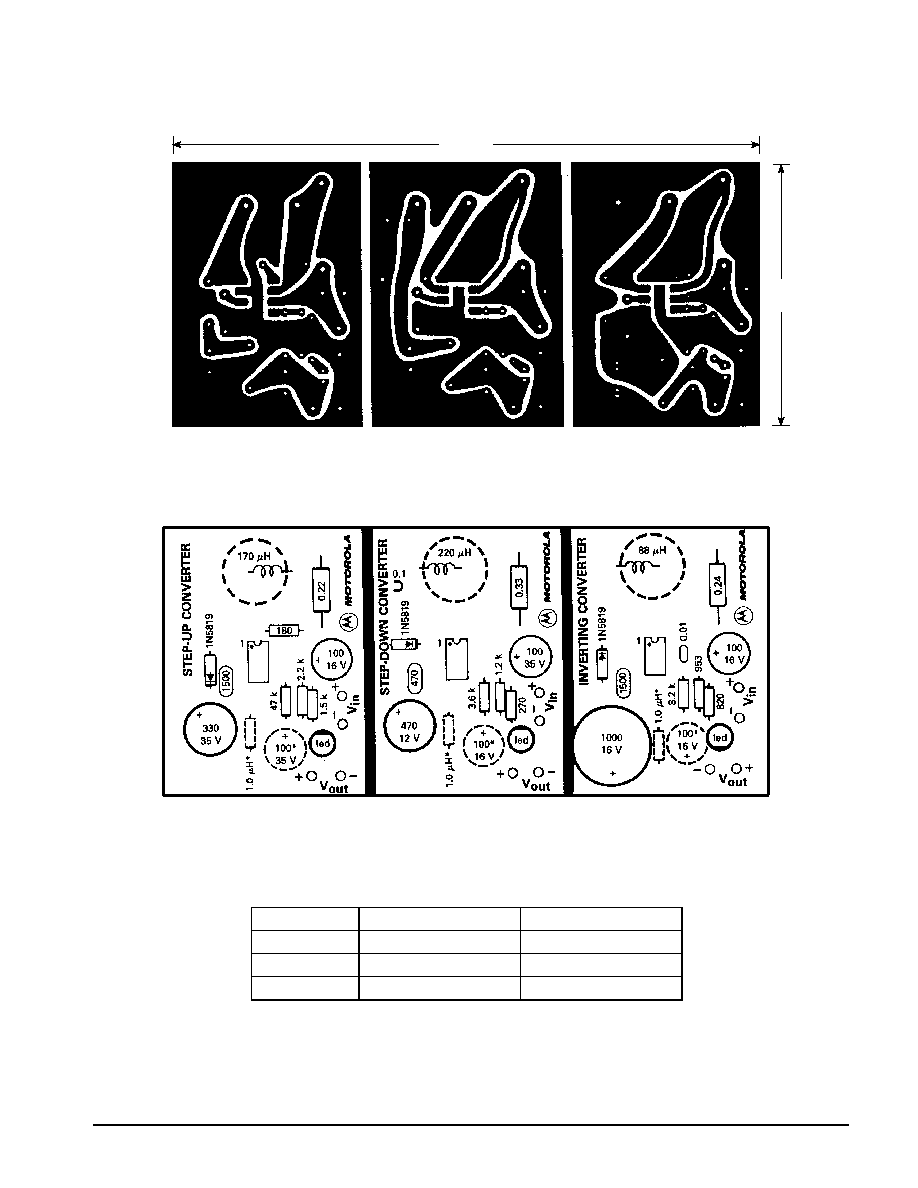

Figure 13. Printed Circuit Board and Component Layout
(Circuits of Figures 7, 9, 11)
MC34063A
MC34063A
MC34063A
INDUCTOR DATA
Converter
Inductance (
µH)
Turns/Wire
Step–Up
170
38 Turns of #22 AWG
Step–Down
220
48 Turns of #22 AWG
Voltage–Inverting
88
28 Turns of #22 AWG
All inductors are wound on Magnetics Inc. 55117 toroidal core.
