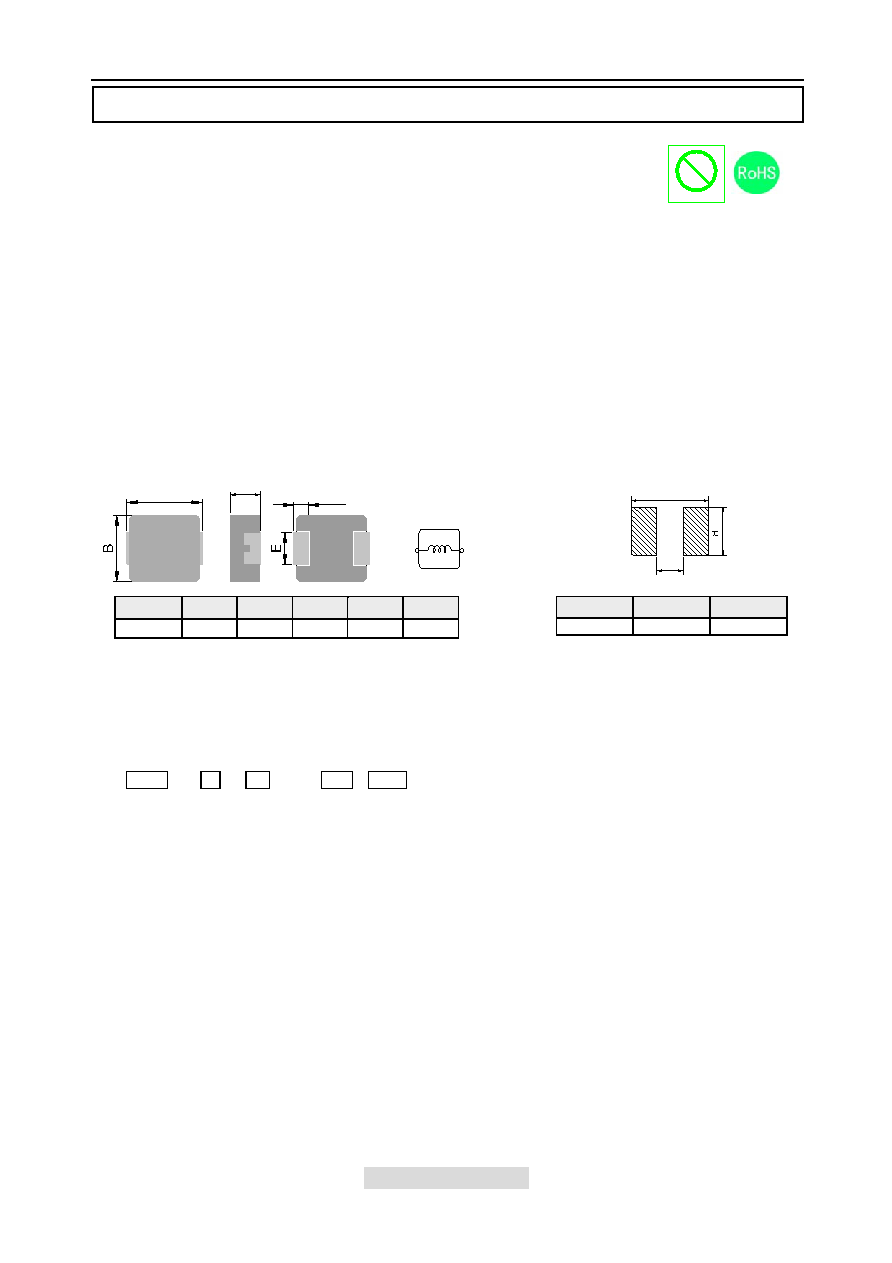

1. Features

2. Applications

3. Dimensions

A

C

　1R0

1901

D

4. Part Numbering

SMD Power Inductor

VMPI58CP-Series

Halogen-free

Halogen

Recommend PC Board Pattern

L(mm)

G(mm)

H(mm)

6.2

2.2

2.8

Note: 1. The above PCB layout reference only.

2. Recommend solder paste thickness at

0.12mm and above.

Series

A

B

C

D

E

VMPI58CP

5.7±0.3

5.2±0.2

1.6±0.2

1.1±0.3

2.5±0.3

Unit:mm

L

G

Note PC power system，incl. IMVP-6

DC/DC converter .

1. Carbonyl Powder.

2. Compact design.

3. High current，low DCR，high efficiency.

4. Very low acoustic noise and very low leakage flux noise.

5. High reliability.

6. 100% Lead(Pb)-Free and RoHS compliant.

7. Operating temperature -40~+125℃(Including self - temperature rise)

VMPI

58

CP

-

1R0 MDA

A

B

C

D

E

A: Series

B: Dimension

BxC

C: Type

H:Carbonyl Powder,P:PAD broaden.

D: Inductance

1R0=1.00uH

E: Inductance Tolerance

M=±20%

Marking: Black.1R0 and 1901(19 YY, 01 WW,follow production date).
