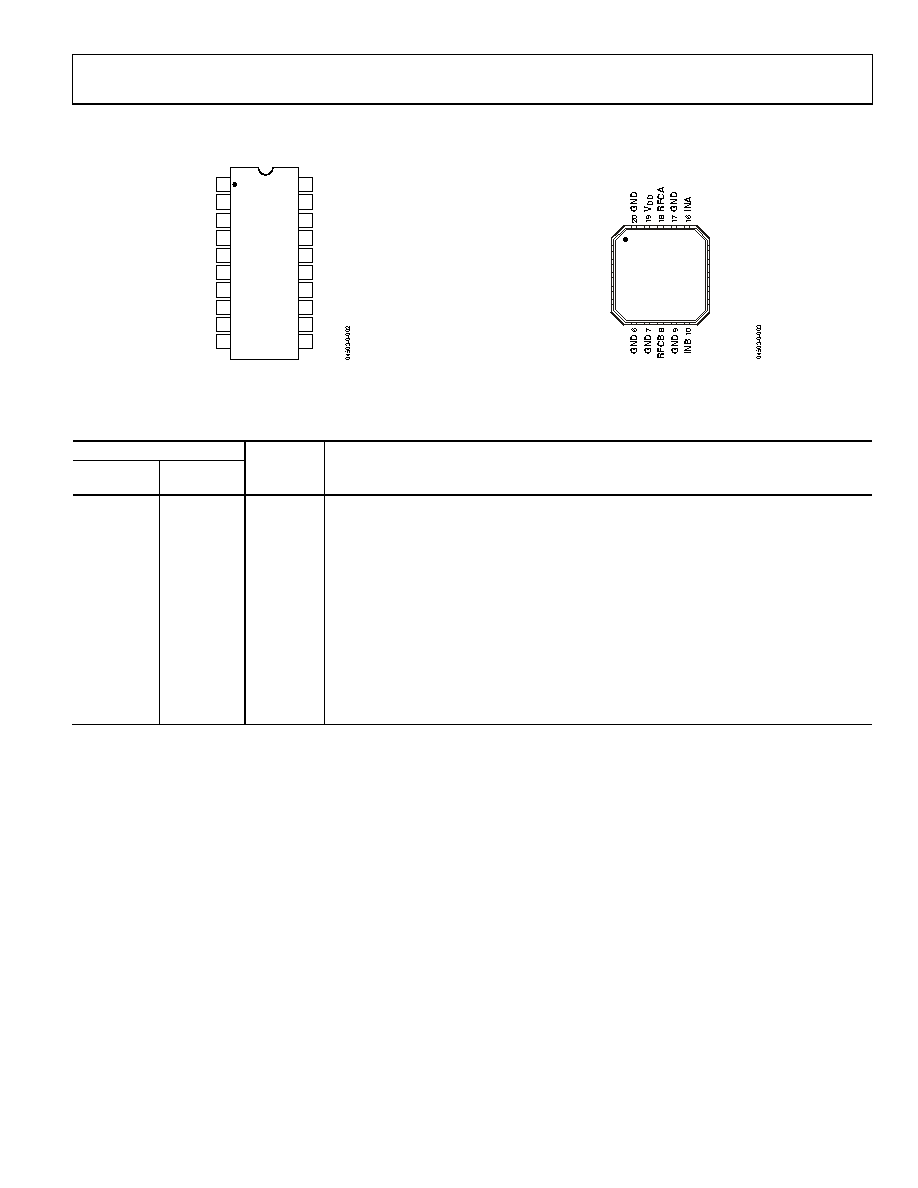

5 / 16 page ![]() ADG936/ADG936-R Rev. 0 | Page 5 of 16 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS 1 2 3 4 5 6 7 8 20 19 18 17 16 15 14 13 VDD GND RF1A GND GND RF1B GND GND INA GND RF2A GND GND RF2B GND ADG936 ADG936-R TOP VIEW (Not to Scale) RFCA 9 10 12 11 GND RFCB INB GND 15 GND 14 RF2A 13 GND 12 GND GND 1 RF1A 2 GND 3 GND 4 ADG936 ADG936-R TOP VIEW (Not to Scale) 11 RF2B RF1B 5 Figure 5. 20-Lead TSSOP (RU-20) Figure 6. 20-Lead 4 mm × 4 mm LFCSP (CP-20) Table 4. Pin Function Descriptions Pin No. 20-Lead TSSOP 20-Lead LFCSP Mnemonic Function 1 18 RFCA Common RF Port for Switch A. 2 19 VDD Power Supply Input. These parts can be operated from 1.65 V to 2.75 V. VDD should be decoupled to GND. 3, 5, 6, 8, 9, 11,13, 15, 16, 18, 20 1, 3, 4, 6, 7, 9, 12,13, 15, 17, 20 GND Ground Reference Point for All Circuitry on the Part. 4 2 RF1A RF1A Port. 7 5 RF1B RF1B Port. 10 8 RFCB Common RF Port for Switch B. 12 10 INB Logic Control Input. 14 11 RF2B RF2B Port. 17 14 RF2A RF2A Port. 19 16 INA Logic Control Input. |
|
|
