D8KB4 데이터시트(PDF) 2 Page - HY ELECTRONIC CORP.

부품명 D8KB4
상세설명  Glass Passivated Bridge Rectifiers
PDF  3 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  HY [HY ELECTRONIC CORP.]
홈페이지  http://www.hygroup.com.tw
Logo HY - HY ELECTRONIC CORP.

D8KB4 데이터시트(HTML) 2 Page - HY ELECTRONIC CORP.

  D8KB4 Datasheet HTML 1Page - HY ELECTRONIC CORP. D8KB4 Datasheet HTML 2Page - HY ELECTRONIC CORP. D8KB4 Datasheet HTML 3Page - HY ELECTRONIC CORP.
Zoom Inzoom in Zoom Outzoom out
 2 / 3 page
background image

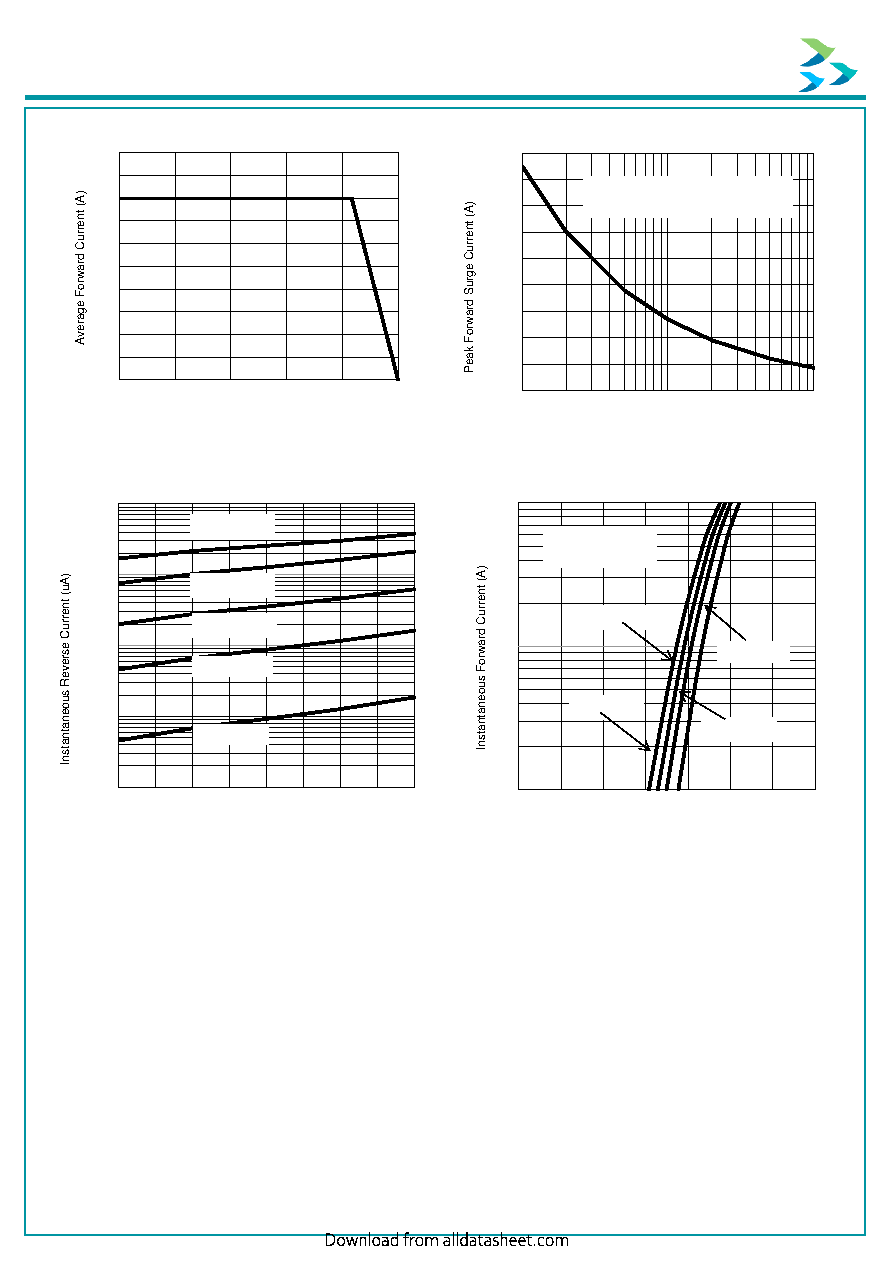

Rating and Characteristic Curves
D8KB05 thru D8KB10
The curve above is for reference only.
D8KB*-U-00-00
Rev. 11, 18-May-2020
0
1
2
3
4
5
6
7
8
9
10
Fig. 1 - Forward Current Derating Curve
0.1
1
10
TC=25°C
Pulse Width 300uS
1%Duty Cycle
Fig. 4 - Typical Forward Characteristics
Instantaneous Forward Voltage (V)
Fig. 2 - Maximum Non-Repetitive Surge Current
Number of Cycles at 60Hz
0
20
40
60
80
100
120
140
160
180
8.3mS Single Half-Sine-Wave
(JEDEC METOD)
Fig. 3 - Typical Reverse Characteristics
0.1
1
10
100
1000
TJ=25°C
TJ=75°C
TJ=100°C
Percent of Rated Peak Reverse Voltage (%)
Case Temperature (℃)
TJ=75°C
TJ=100°C
TJ=125°C
TJ=125°C
TJ=150°C
