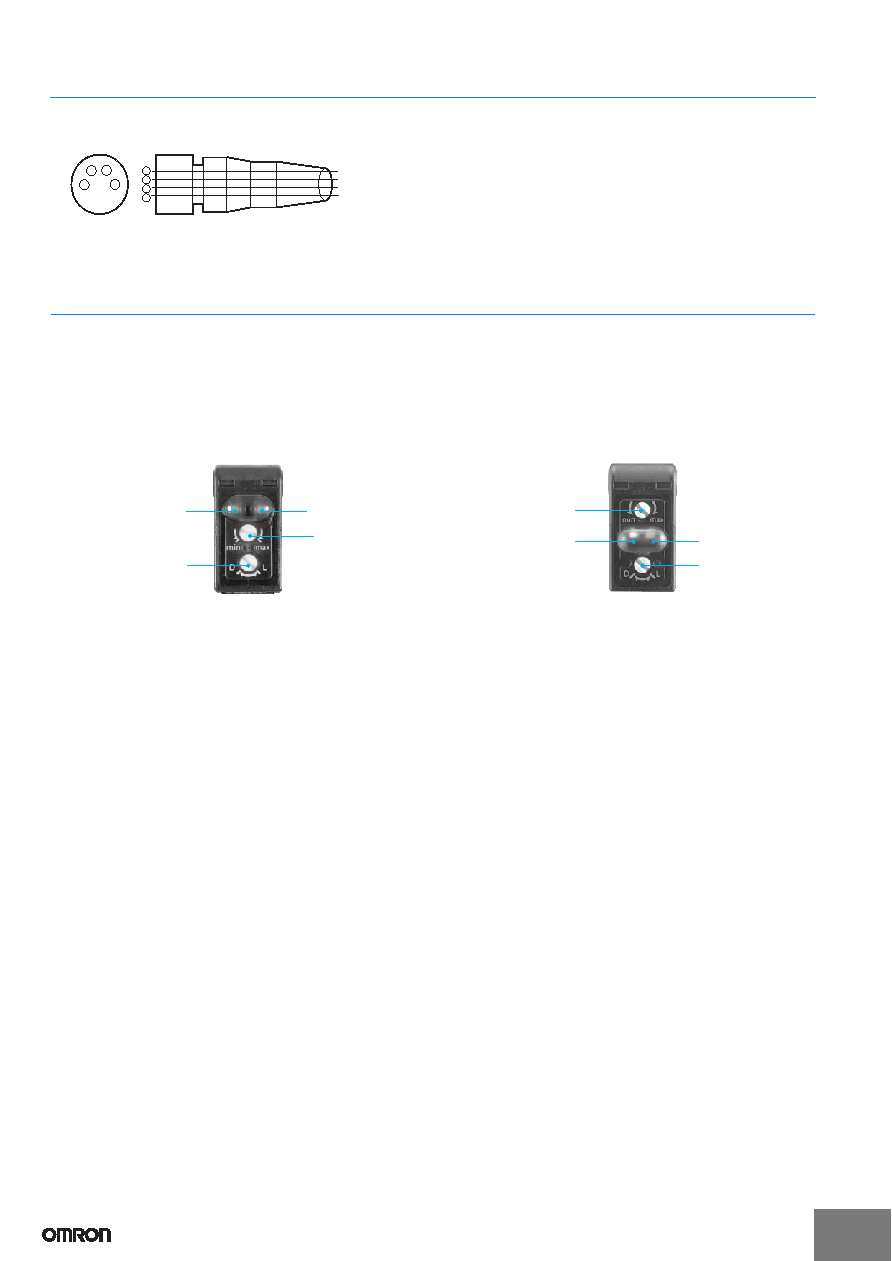

E3Z-LT/LR/LL
8
Plugs (Sensor I/O Connectors)
Nomenclature
M8 4-pin Connectors
2
4
1
3
1
2
3
4
XS3F-M421-402-A
XS3F-M421-405-A
XS3F-M422-402-A
XS3F-M422-405-A
Brown
White
Blue
Black
Wire color
Distance adjuster
(5-turn endless)
Stability indicator
(green)
Operation selector
Operation indicator
(orange)
Sensitivity adjuster
Stability indicator
(green)
Operation indicator
(orange)
Mode selector
switch
Sensors with Sensitivity Adjustment and
Mode Selector Switch
Through-beam Models
E3Z-LT
@@ (Receiver)
Retro-reflective Models
E3Z-LR
@@
Distance-settable Sensor
BGS Models
E3Z-LL
@@
