E39-R12 데이터시트(PDF) 12 Page - Omron Electronics LLC

부품명 E39-R12
상세설명  Compact and Reliable Laser Photoelectric Sensor
PDF  15 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  OMRON [Omron Electronics LLC]
홈페이지  http://www.omron.com/index3.html
Logo OMRON - Omron Electronics LLC

E39-R12 데이터시트(HTML) 12 Page - Omron Electronics LLC

Back Button E39-R12 Datasheet HTML 7Page - Omron Electronics LLC E39-R12 Datasheet HTML 8Page - Omron Electronics LLC E39-R12 Datasheet HTML 9Page - Omron Electronics LLC E39-R12 Datasheet HTML 10Page - Omron Electronics LLC E39-R12 Datasheet HTML 11Page - Omron Electronics LLC E39-R12 Datasheet HTML 12Page - Omron Electronics LLC E39-R12 Datasheet HTML 13Page - Omron Electronics LLC E39-R12 Datasheet HTML 14Page - Omron Electronics LLC E39-R12 Datasheet HTML 15Page - Omron Electronics LLC
Zoom Inzoom in Zoom Outzoom out
 12 / 15 page
background image
12

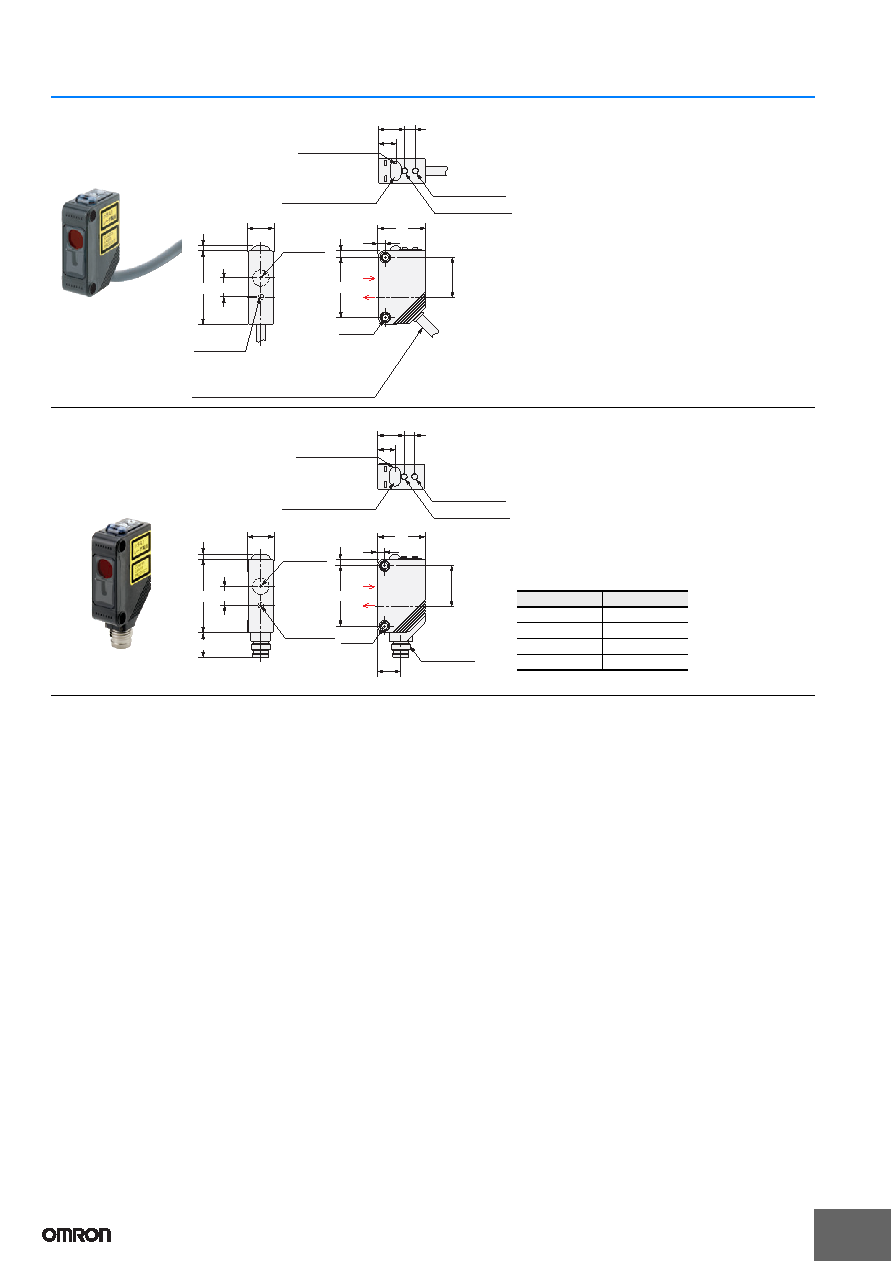

E3Z-LT/LR/LL
Stability indicator (green)
Receiver
Lens 7 dia.
Emitter
Lens 2.5 dia.
Sensitivity adjuster
Operation selector
4.5
11.2
7.5
Two, M3
20
20
16.7
2.8
25.4
3
10.8
10.8
2.1
31
31
8
Operation Indicator
(orange)
4 dia. vinyl-insulated round cable with
3 conductors (Conductor cross section:
0.2 mm2 (AWG24), Insulator diameter: 1.1 mm),
Standard length: 2m
Retro-reflective Models
Pre-wired Models
E3Z-LR61
E3Z-LR81
Retro-reflective Models
Standard Connector
Models
E3Z-LR66
E3Z-LR86
M8 connector
9.75
4.5
11.2
7.5
20
20
16.7
2.8
25.4
3
10.8
10.8
10.4
2.1
31
31
Emitter
Lens 2.5 dia.
8
Stability indicator (green)
Receiver
Lens 7 dia.
Sensitivity adjuster
Operation selector
Operation Indicator
(orange)
Two, M3
Pins 2 is not used.
Terminal No.
Specifications
1+V
2
---
30 V
4
Output
