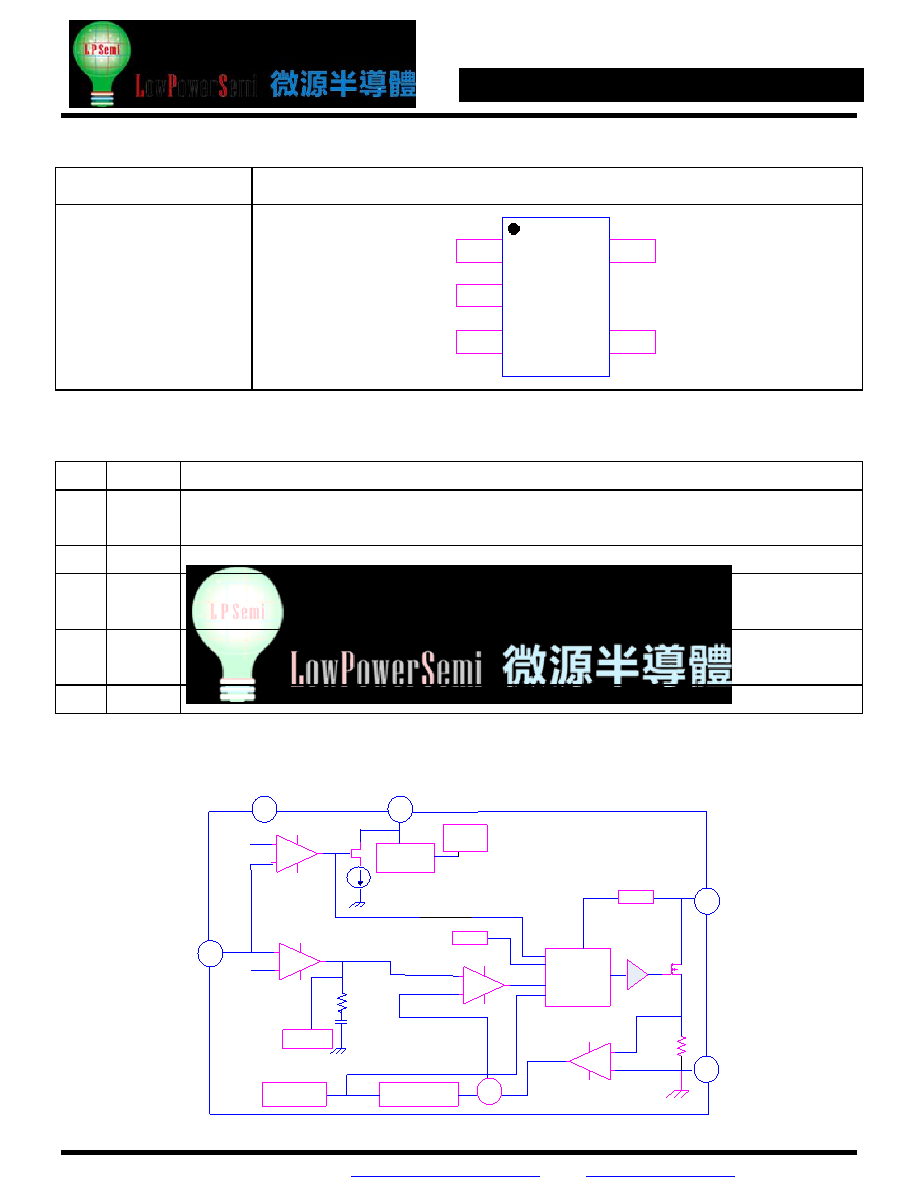

2 / 6 page ![]() LP3318-00 May.-2018 Email: marketing@lowpowersemi.com www.lowpowersemi.com Page 2 of 6 Preliminary Datasheet LP3318 Functional Pin Description Package Type Pin Configurations SOT23-5 1 3 5 4 LX VIN SOT23-5 TOP VIEW 2 GND FB EN Pin Description Pin Name Description 1 LX Output Switching Node. LX is the drain of the internal low-side N-Channel MOSFET and high-side P-Channel MOSFET. Connect the inductor to LX to Complete the step-up converter. 2 GND Ground. 3 FB Regulation Feedback Input. Connect to an external resistive voltage divider from the output to FB to set the output voltage. 4 EN Regulator On/off Control Input. A logic high input(VEN>1.4V) turns on the regulator. A logic low input(VEN<0.4V) puts the LP3318 into low current shutdown mode. 5 VIN Power Supply pin. Function Block Diagram FB EN SHUTDOWN CIRCUITRY UVLO SOFT START CONTROL AND DRIVER LOGIC SLOPE COMPENSASION OSCILLATOR OVP VIN LX GND OTP SHORT CIRCUIT COMP. Error Amp. PWM COMP. CURRENT SENSE AMP. 10μA 0.3V 1.23V Σ + + + + - - - - |
|
|
