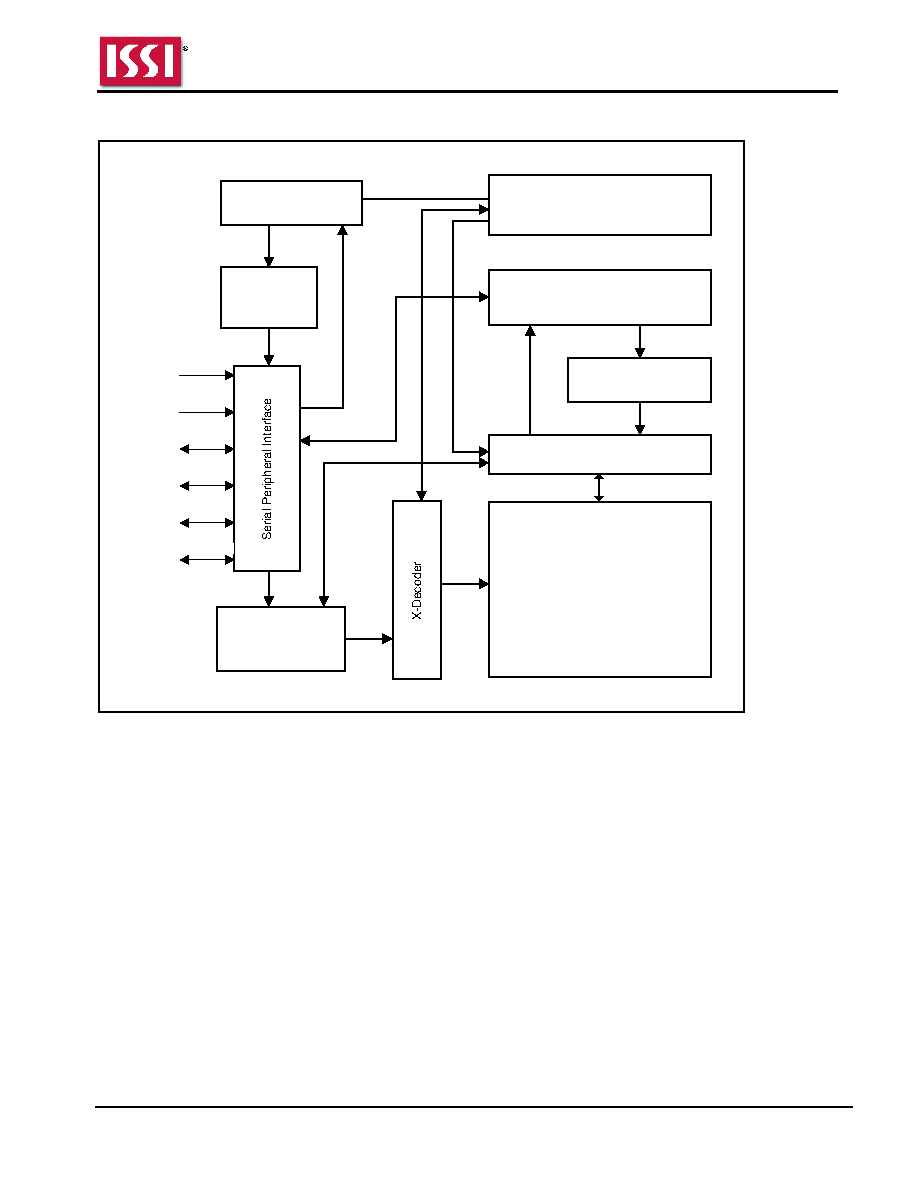

11 / 114 page ![]() IS25LP016D IS25WP016D Integrated Silicon Solution, Inc.- www.issi.com 11 Rev. B10 03/09/2020 3. BLOCK DIAGRAM Notes: 1. According to the P7 bit setting in Read Register, either HOLD# (P7=0) or RESET# (P7=1) pin can be selected. 2. SI and SO pins become bidirectional IO0 and IO1 respectively during Dual I/O mode and SI, SO, WP#, and HOLD#/RESET# pins become bidirectional IO0, IO1, IO2, and IO3 respectively during Quad I/O or QPI mode. 3. In case of 16-pin SOIC and 24-ball TFBGA packages, dedicated RESET# function is supported without sharing with HOLD# pin for the dedicated parts. See the Ordering Information for the dedicated RESET# pin Control Logic High Voltage Generator I/O Buffers and Data Latches 256 Bytes Page Buffer Y-Decoder Status Register Address Latch & Counter Memory Array CE# SCK WP# (IO2) SI (IO0) SO (IO1) HOLD# or RESET# (IO3) (1) WP# (IO2) |
|
