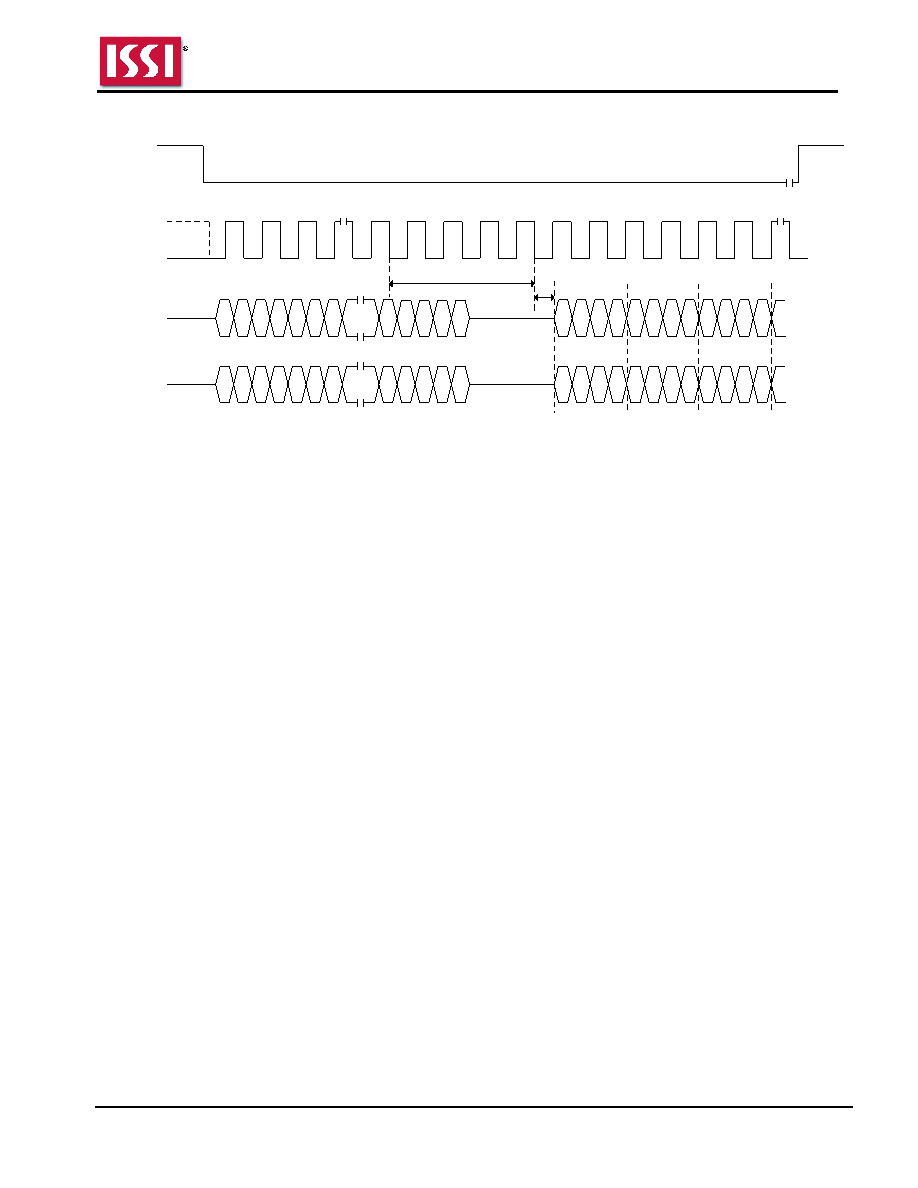

88 / 118 page  IS25LP032D IS25WP032D Integrated Silicon Solution, Inc.- www.issi.com 88 Rev. A12 08/04/2020 Figure 8.66 FRDDTR AX Read Sequence (without command decode cycles) IO0 IO1 3-byte Address ... ... tV 22 20 18 7 5 3 1 7 5 3 1 7 5 3 1 4 Dummy Cycles 23 21 19 ... 6 4 2 0 6 4 2 0 6 4 2 0 Data Out Data Out Data Out 16 14 12 17 15 13 10 11 SCK 0 1 2 ... 6 7 8 9 10 11 12 13 14 15 16 Mode 3 Mode 0 CE # 7 5 3 1 6 4 2 0 0 1 Mode Bits ... ... Notes: 1. If the mode bits=AXh ( where X is don’t care), it will keep executing the AX read mode (without command). When the mode bits are different from AXh, the device exits the AX read operation. 2. Number of dummy cycles depends on clock speed. Detailed information in Table 6.11 Read Dummy Cycles. 3. Sufficient dummy cycles are required to avoid I/O contention. If the number of dummy cycles and AX bit cycles are same, then X should be Hi-Z. |
|
