IS25LP032D-RHLA3 데이터시트(PDF) 104 Page - Integrated Silicon Solution, Inc

부품명 IS25LP032D-RHLA3
상세설명  SERIAL FLASH MEMORY WITH 133MHZ MULTI I/O SPI & QUAD I/O QPI DTR INTERFACE
PDF  118 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  ISSI [Integrated Silicon Solution, Inc]
홈페이지  http://www.issi.com
Logo ISSI - Integrated Silicon Solution, Inc

IS25LP032D-RHLA3 데이터시트(HTML) 104 Page - Integrated Silicon Solution, Inc

Back Button IS25LP032D-RHLA3 Datasheet HTML 100Page - Integrated Silicon Solution, Inc IS25LP032D-RHLA3 Datasheet HTML 101Page - Integrated Silicon Solution, Inc IS25LP032D-RHLA3 Datasheet HTML 102Page - Integrated Silicon Solution, Inc IS25LP032D-RHLA3 Datasheet HTML 103Page - Integrated Silicon Solution, Inc IS25LP032D-RHLA3 Datasheet HTML 104Page - Integrated Silicon Solution, Inc IS25LP032D-RHLA3 Datasheet HTML 105Page - Integrated Silicon Solution, Inc IS25LP032D-RHLA3 Datasheet HTML 106Page - Integrated Silicon Solution, Inc IS25LP032D-RHLA3 Datasheet HTML 107Page - Integrated Silicon Solution, Inc IS25LP032D-RHLA3 Datasheet HTML 108Page - Integrated Silicon Solution, Inc Next Button
Zoom Inzoom in Zoom Outzoom out
 104 / 118 page
background image
IS25LP032D
IS25WP032D
Integrated Silicon Solution, Inc.- www.issi.com
104
Rev. A12
08/04/2020
9.7 SERIAL INPUT/OUTPUT TIMING

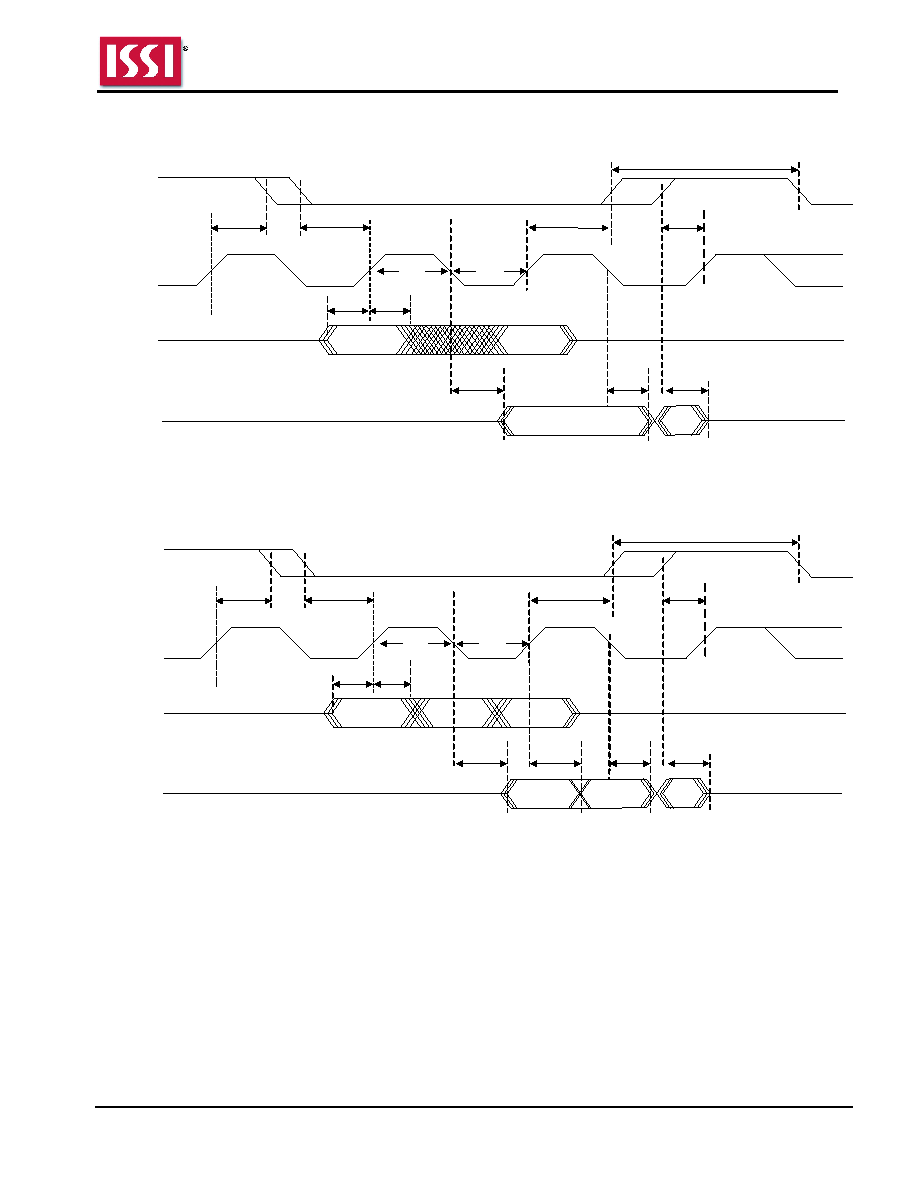

Figure 9.2 SERIAL INPUT/OUTPUT TIMING (Normal Mode) (1)
HI-Z
SO
SI
SCK
CE#
VALID IN
tCS
tCKH
tCKL
tDS
tDH
tCH
tCEH
tV
tDIS
HI-Z
tOH
VALID IN
VALID OUTPUT
t CHSL
tSHCH
Note1: For SPI Mode 0 (0, 0)
Figure 9.3 SERIAL INPUT/OUTPUT TIMING (DTR Mode) (1)
SCK
CE#
tCS
tCKH
tCKL
tCH
tCEH
t CHSL
tSHCH
HI-Z
SO
SI
VALID IN
tDS
tDH
tV
tDIS
HI-Z
tOH
VALID IN
VALID IN
Output
Output
tV
Note1: For SPI Mode 0 (0, 0)
