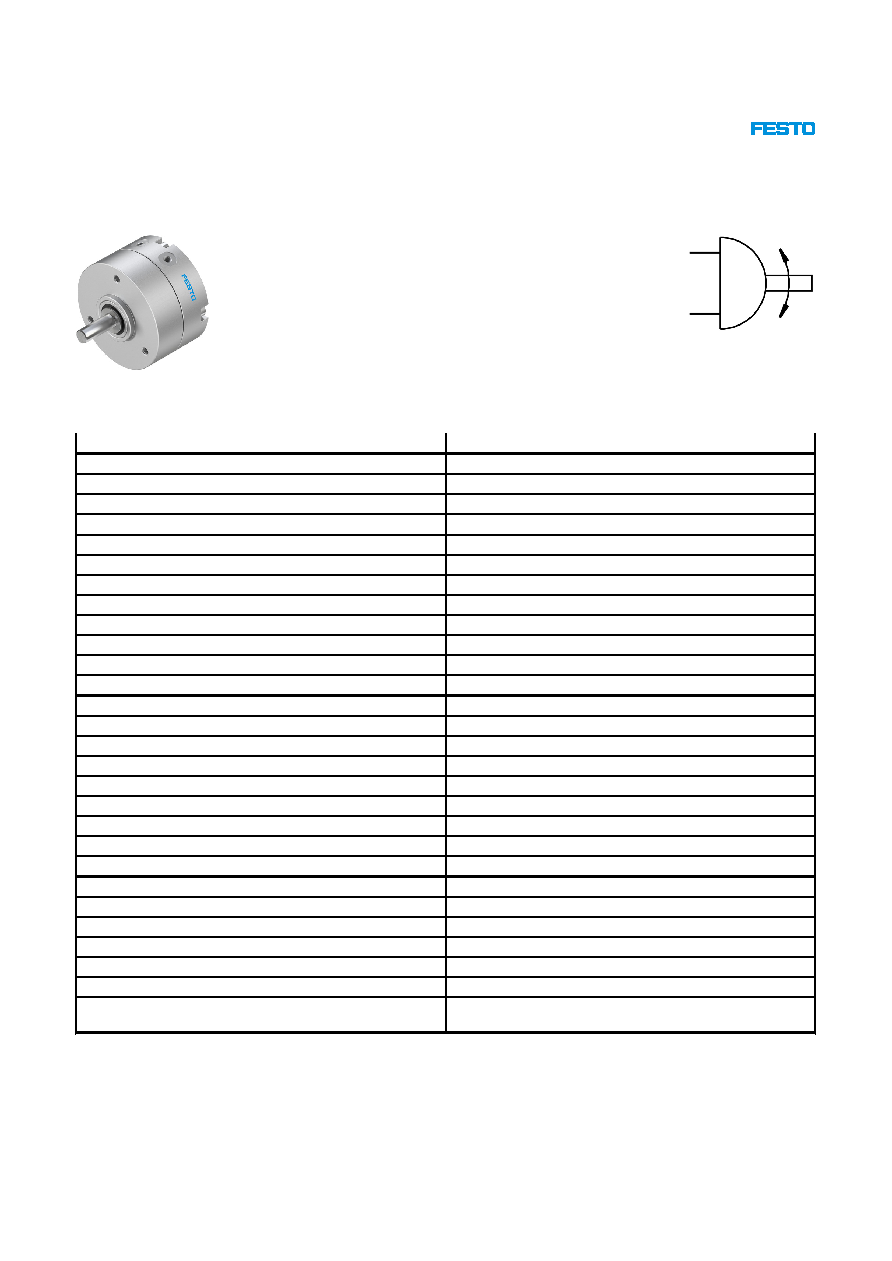

Rotary actuator

DRVS-8-90-P

Part number: 1845708

Data sheet

Feature

Value

Size

8

Cushioning angle

0.5 deg

Swivel angle

0 deg ... 90 deg

Type code

DRVS

Cushioning

Elastic cushioning rings/pads at both ends

Mounting position

Any

Mode of operation

Double-acting

Design

Rotary vane

Position sensing

For proximity sensor

Symbol

00991265

Variants

Spigot shaft

Operating pressure

3.5 bar ... 8 bar

Max. swivel frequency at 6 bar

3 Hz

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

1 - Low corrosion stress

Ambient temperature

0 °C ... 60 °C

Max. axial force

10 N

Max. radial force

20 N

Theoretical torque at 6 bar

0.35 Nm

Permissible mass moment of inertia

0.0013 kgm²

Product weight

68 g

Type of mounting

With internal thread

Pneumatic connection

M3

Note on materials

RoHS-compliant

Drive shaft material

High-alloy stainless steel

Seals material

TPE-U(PU)

Housing material

Anodized

Wrought aluminum alloy

8/5/20 - Subject to change - Festo AG & Co. KG

1/1
