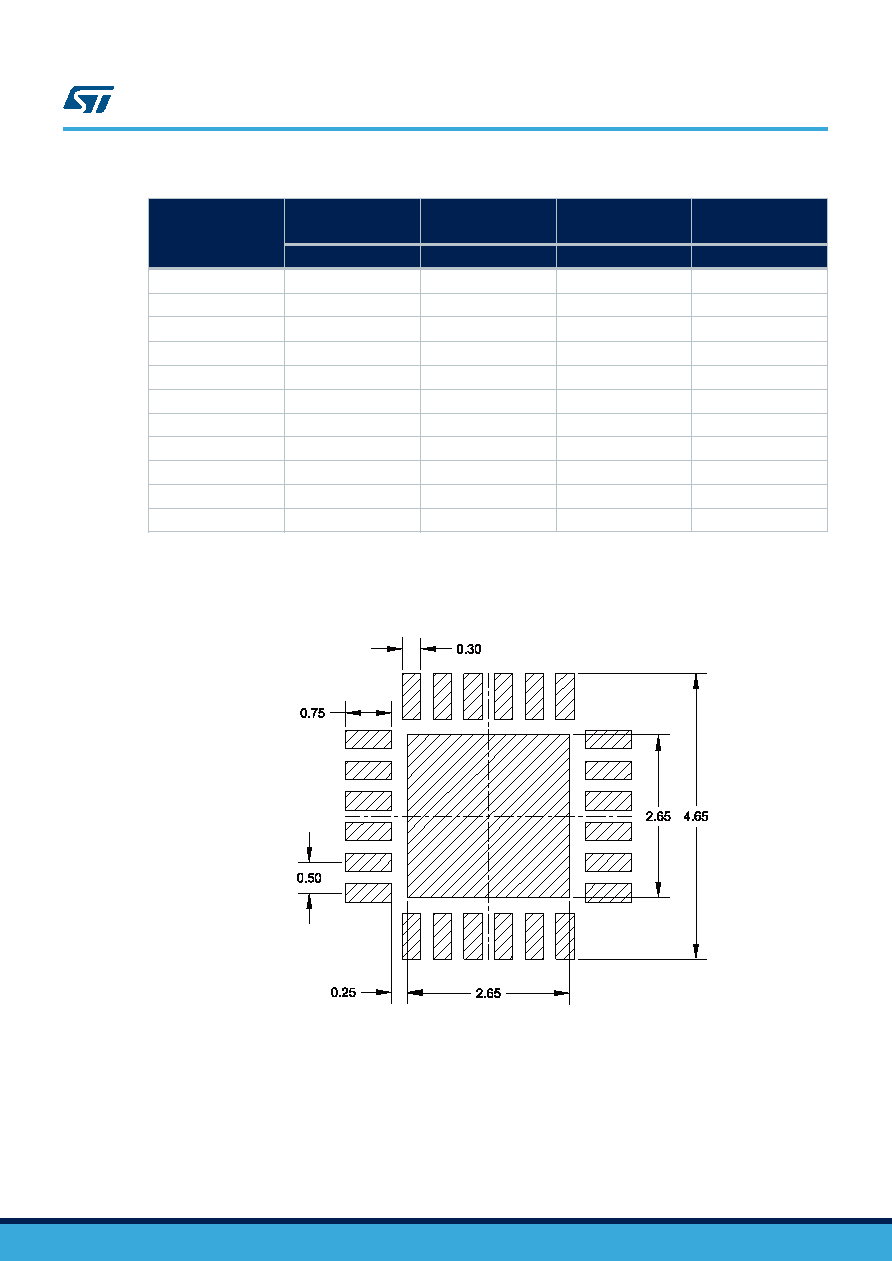

Table 10. TFQFPN 4x4x1.05 24L package mechanical data
Symbol
Dimensions
(mm)
Min.
Typ.
Max.
NOTES
A
0.90
1.00
1.10
A1
0.00
0.02
0.05
b
0.20
0.25
0.30
(1)
D
3.90
4.00
4.10
D2
2.55
2.60
2.65
E
3.90
4.00
4.10
E2
2.55
2.60
2.65
e
0.50
L
0.35
0.40
0.45
k
0.30
ddd
0.05
1.
Dimension “b” does not include dambar protrusion. Allowable dambar protrusion shall not cause the lead
width to exceed the maximum “b” dimension by more than 0.08 mm
Figure 18. TFQFPN 4 x 4 x 1.05 - 24L suggested footprint
TFQFPN 4 x 4 x 1.05 - 24 L
STSPIN830
TFQFPN 4x4x1.05 24L package information
DS12584 - Rev 2
page 21/27
