13
PDS-001540 Rev 15
© 2016 Luminus Devices, Inc. - All Rights Reserved
Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com
175 New Boston Street • Woburn, MA 01801

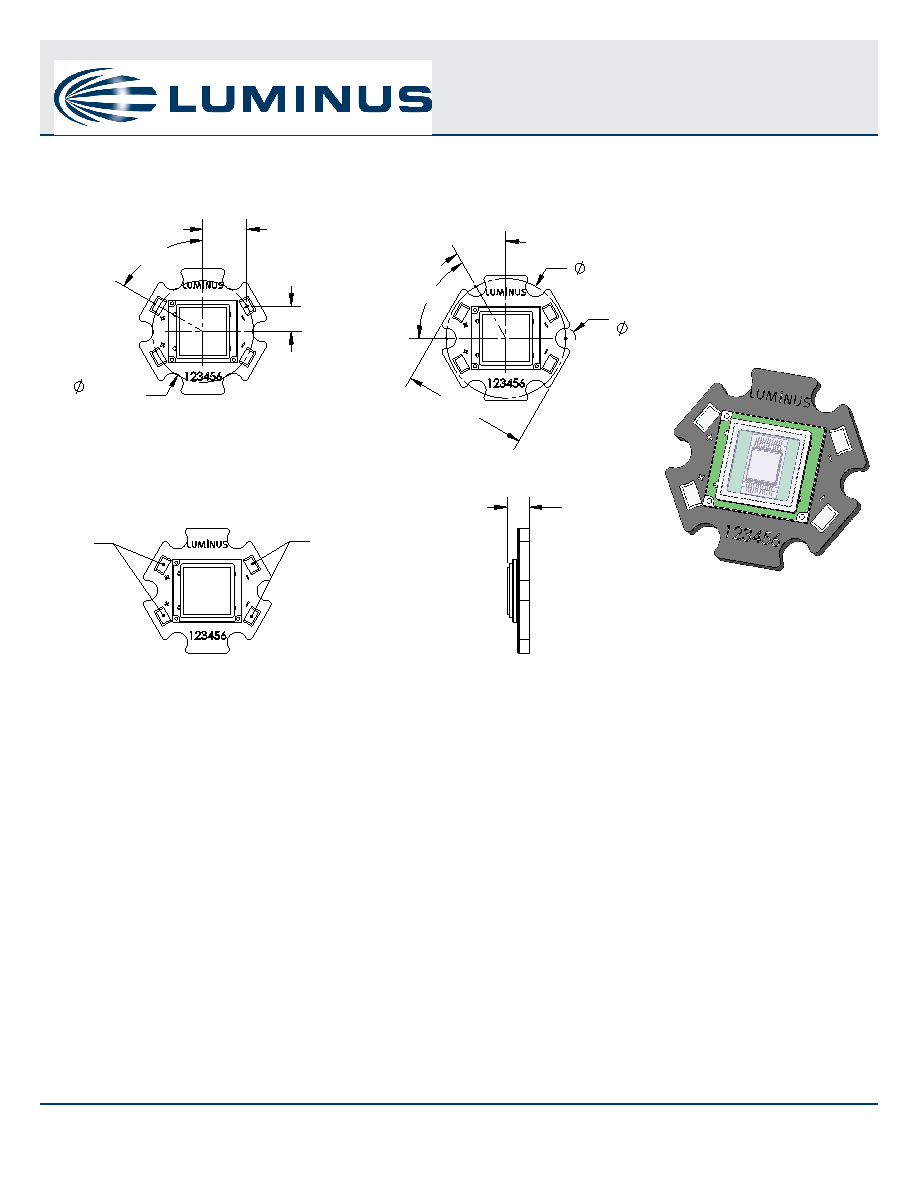

Mechanical Dimensions – SBT-90 Star Board
Note 1: Tolerances per IPC-610, Class 2
Note 2: For detail drawing of SBT-90, please see DWG-001553
Note 3: Recommended mounting screw: M3 or #4
Note 4: All dimensions in millimeters
Note 5: All anode pads on board are interconnected. All cathode pads on board are interconnected
7.1
60.0°
4.1
16.4
SOLDER PADS
19.9
TYP
3.2
6x
30.0°
60.0°
19
CATHODE
PADS
ANODE
PADS
3.5
SBT-90 Product Datasheet
