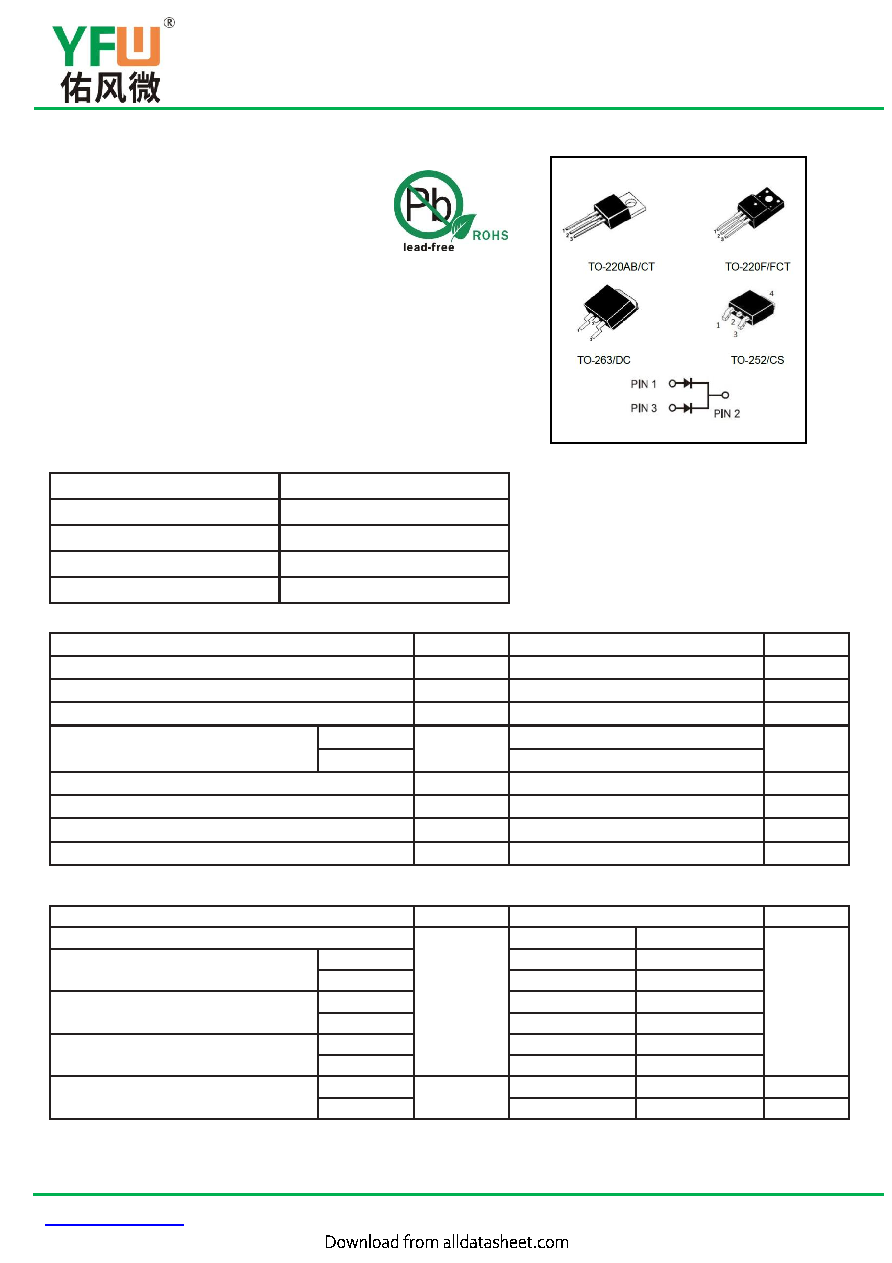

1 / 4 page  MBR10150CT-FCT-DC-CS 1 / 4 www.yfwdiode.com Dongguan YFW Electronics Co, Ltd. SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 150 V Forward Current - 10 A FEATURES Low forward voltage High current capability High forward surge capability Low power losses，High efficiency Guarding for over voltage protection Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA Case: TO-220AB/CT TO-220F/FCT TO-263/DC TO-252/CS Solder bath temperature275℃maximum,10s per JESD22-106 Primary Characteristic Maximum Ratings (Per Leg) at Ta=25°C unless otherwise specified Parameter Symbols Value Units Maximum Repetitive Peak Reverse Voltage VRRM 150 V Maximum RMS voltage VRMS 150 V Maximum DC Blocking Voltage VDC 150 V Maximum Average Forward Rectified Current Per Leg Io 5 A Total 10 Peak Forward Surge Current, 8.3ms Single Half Sine-wave IFSM 190 A Operating Temperature Range TJ -55 ~ +150 °C Storage Temperature Range TSTG -55 ~ +150 °C Typical Thermal Resistance (Note1) TO-220AB,TO-263 TO252 TO-220F RθJA/ RθJC 2/4 °C/W Note1: Thermal resistance from Junction to case per leg mounted on heatsink. Electrical Characteristics (Per Leg) unless otherwise specified Characteristics Symbols Value Units Forward Voltage Drop(Note2) VF Typ Max V at IF=2A TA=25°C 0.73 - TA=125°C 0.59 - at IF=3A TA=25°C 0.76 - TA=125°C 0.63 - at IF=5A TA=25°C 0.80 0.87 TA=125°C 0.68 - Maximum Reverse Current at VR=150V TA=25°C IR 1 5 uA TA=125°C 0.6 - mA Note2:Pulse test: 300 μs pulse width, 1 % duty cycle Io 2*5A VRRM 150V IFSM 190A VF 0.68V TJ Max 150°C |
