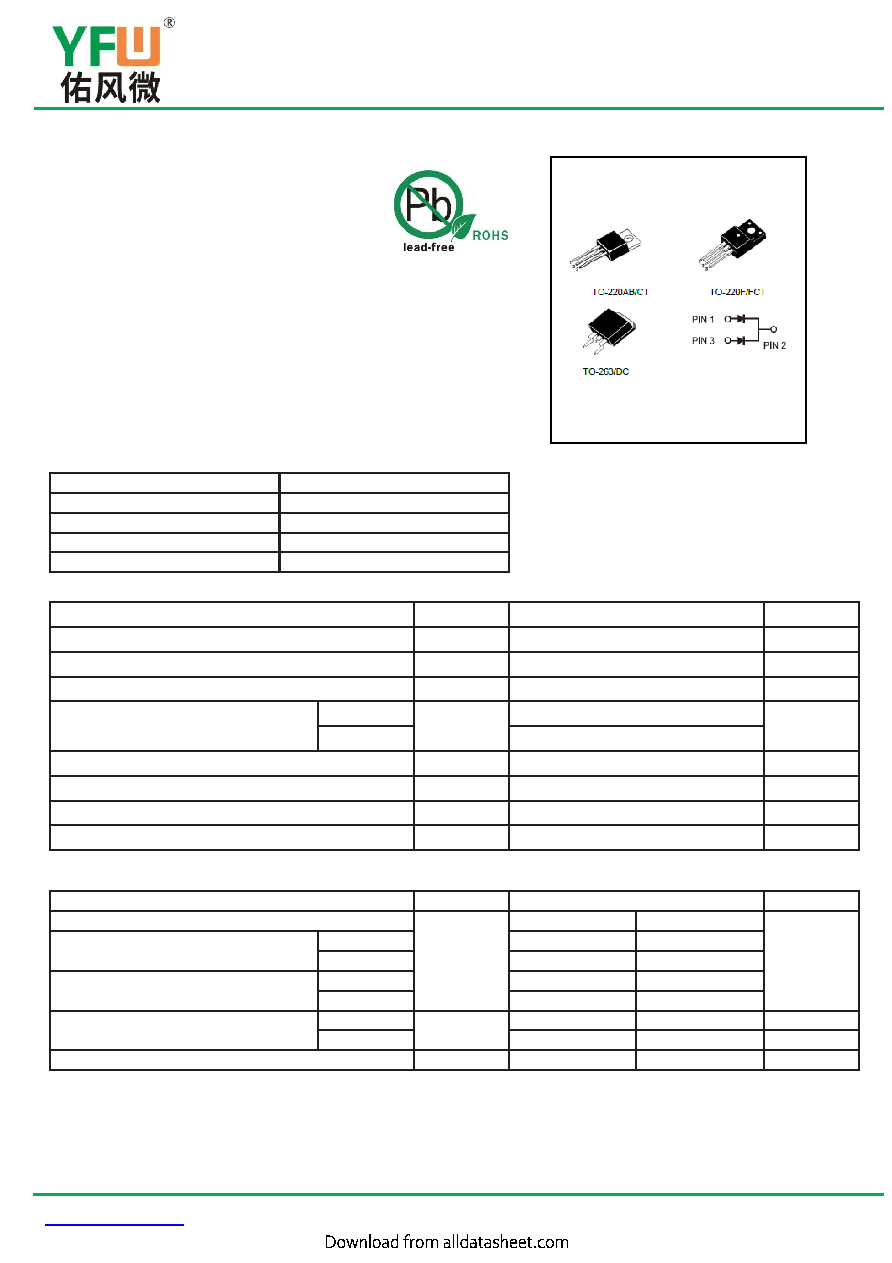

MUR1060CT-FCT-DC

1 / 3

www.yfwdiode.com

Dongguan YFW Electronics Co, Ltd.

ULTRAFST RECOVERY RECTIFIERS

Reverse Voltage - 600 V

Forward Current - 10 A

FEATURES

High speed switching capability

High current capability

High forward surge capability

Low power losses，High efficiency

For use in low voltage, high frequency inverters

Lead free in comply with EU RoHS 2011/65/EU directives

MECHANICAL DATA

Case: TO-220AB/CT TO-220F/FCT TO-263/DC

Solder bath temperature275℃maximum,10s per JESD22-106

Primary Characteristic

Io

2*5A

VRRM

600V

IFSM

90A

VF

1.1V

TJ Max

150°C

Maximum Ratings (Per Leg) at Ta=25°C unless otherwise specified

Parameter

Symbols

Value

Units

Maximum Repetitive Peak Reverse Voltage

VRRM

600

V

Maximum RMS voltage

VRMS

600

V

Maximum DC Blocking Voltage

VDC

600

V

Maximum Average Forward Rectified Current

Per Leg

Io

5

A

Total

10

Peak Forward Surge Current, 8.3ms Single Half Sine-wave

IFSM

90

A

Operating Temperature Range

TJ

150

°C

Storage Temperature Range

TSTG

-40 ~ +150

°C

Typical Thermal Resistance (Note1) TO-220AB/CT TO-220F/FCT TO-263/DC

RθJA/ RθJC

2/4

°C/W

Note1: Thermal resistance from Junction to case per leg mounted on heatsink.

Electrical Characteristics (Per Leg) unless otherwise specified

Characteristics

Symbols

Value

Units

Forward Voltage Drop(Note2)

VF

Typ

Max

V

at IF=3A

TA=25°C

1.10

-

TA=125°C

0.91

-

at IF=5A

TA=25°C

1.28

-

TA=125°C

1.10

-

Maximum Reverse Current at VR=600V

TA=25°C

IR

0.50

1

uA

TA=25°C

15

-

uA

Maximum Reverse Recovery Time at IF=0.5A, IR=1A, IRR=0.25A

TRR

-

35

nS

Note2:Pulse test: 300 μs pulse width, 1 % duty cycle
