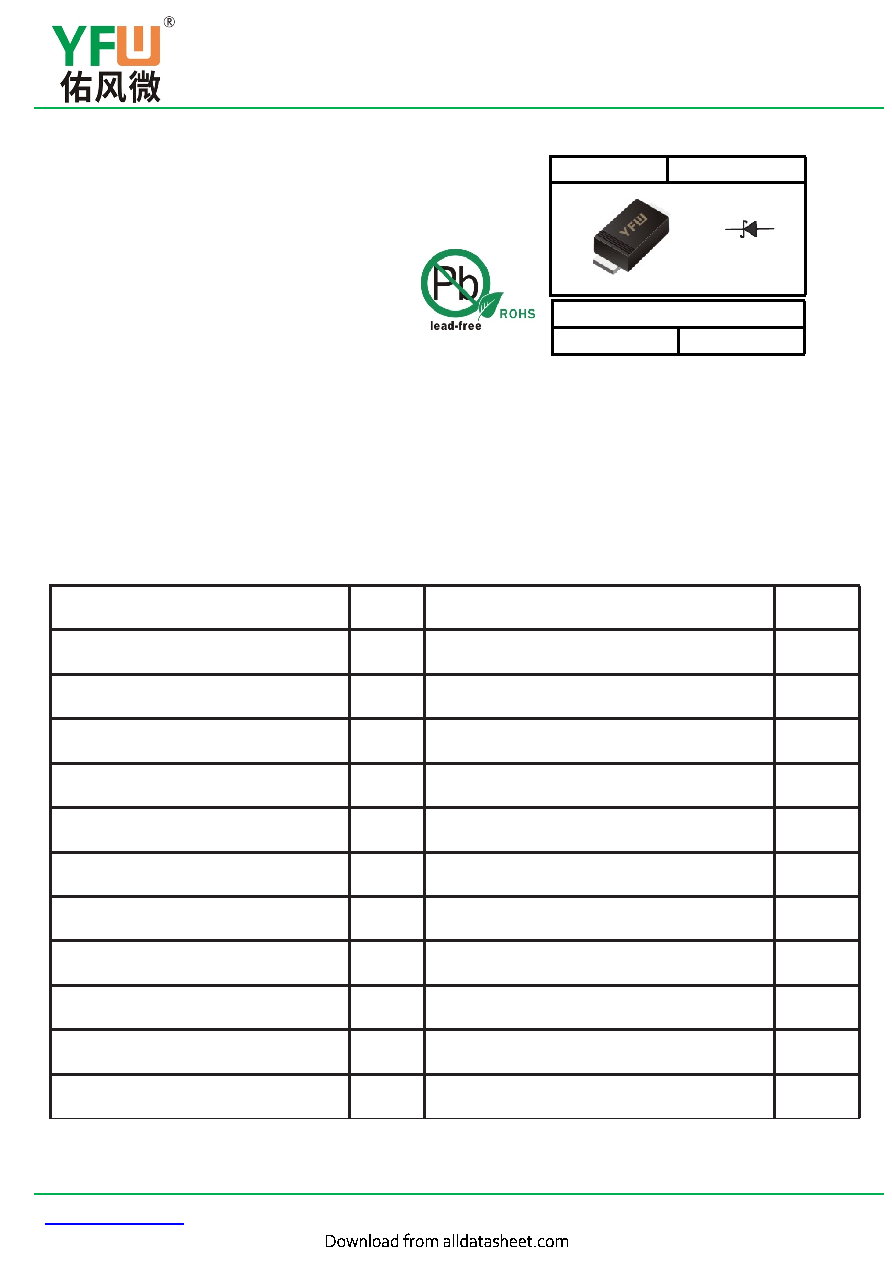

SSL210BF SMBF

1 / 3

www.yfwdiode.com

Dongguan YFW Electronics Co, Ltd.

Surface Mount Schottky Barrier Rectifier

Reverse Voltage - 100 V

Forward Current - 2 A

FEATURES



Metal silicon junction, majority carrier conduction



For surface mounted applications



Low power loss, high efficiency



High forward surge current capability



For use in low voltage, high frequency inverters,

free wheeling, and polarity protection applications



Lead free in comply with EU RoHS 2011/65/EU directives

MECHANICAL DATA



Case: SMBF



Terminals: Solderable per MIL-STD-750, Method 2026



Approx. Weight: 57mg / 0.002oz

Pinning

1.Cathode

2.Anode

　

　

　

　

　 1

2

　

　

SMBF

Absolute Maximum Ratings and Electrical characteristics

Ratings at 25 ° ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load,

for capacitive load, derate by 20 %

Parameter

Symbols

SSL210BF

Units

Maximum Repetitive Peak Reverse Voltage

100

V

Maximum RMS voltage

70

V

Maximum DC Blocking Voltage

100

V

Maximum Average Forward Rectified Current

2.0

A

Peak Forward Surge Current, 8.3ms Single Half Sine-wave

Superimposed On Rated Load (JEDEC method)

50

A

Maximum Instantaneous Forward Voltage at 2 A

0.6

V

at Rated DC Reverse Voltage

0.3

3

mA

110

pF

75

°C/W

Operating Junction Temperature Range

-55 ~ +150

°C

Storage Temperature Range

-55 ~ +150

°C

（

1）Measured at 1 MHz and applied reverse voltage of 4 V D.C

（

2）P.C.B. mounted with 2" X 2" (5 X 5 cm) copper pad areas.

Marking Code

SSL210BF

SL210B
