Turns on link (Green),

Blinks on activity (Green)

Bypass LED: Turns on bypass (Green),

Disconnect LED: Turns on disconnect (Green)

LEDs location:

LEDs are located on the PCB, visible via holes in the metal bracket holder

Connectors:

(1) Shielded Quad RJ-45

Functional Description

Silicom’s Quad Port Bypass adapter supports Normal, Bypass and Disconnect modes. In Normal mode, the ports are independent

interfaces (see Figure 1: Normal mode, one Bypass pair is illustrated).

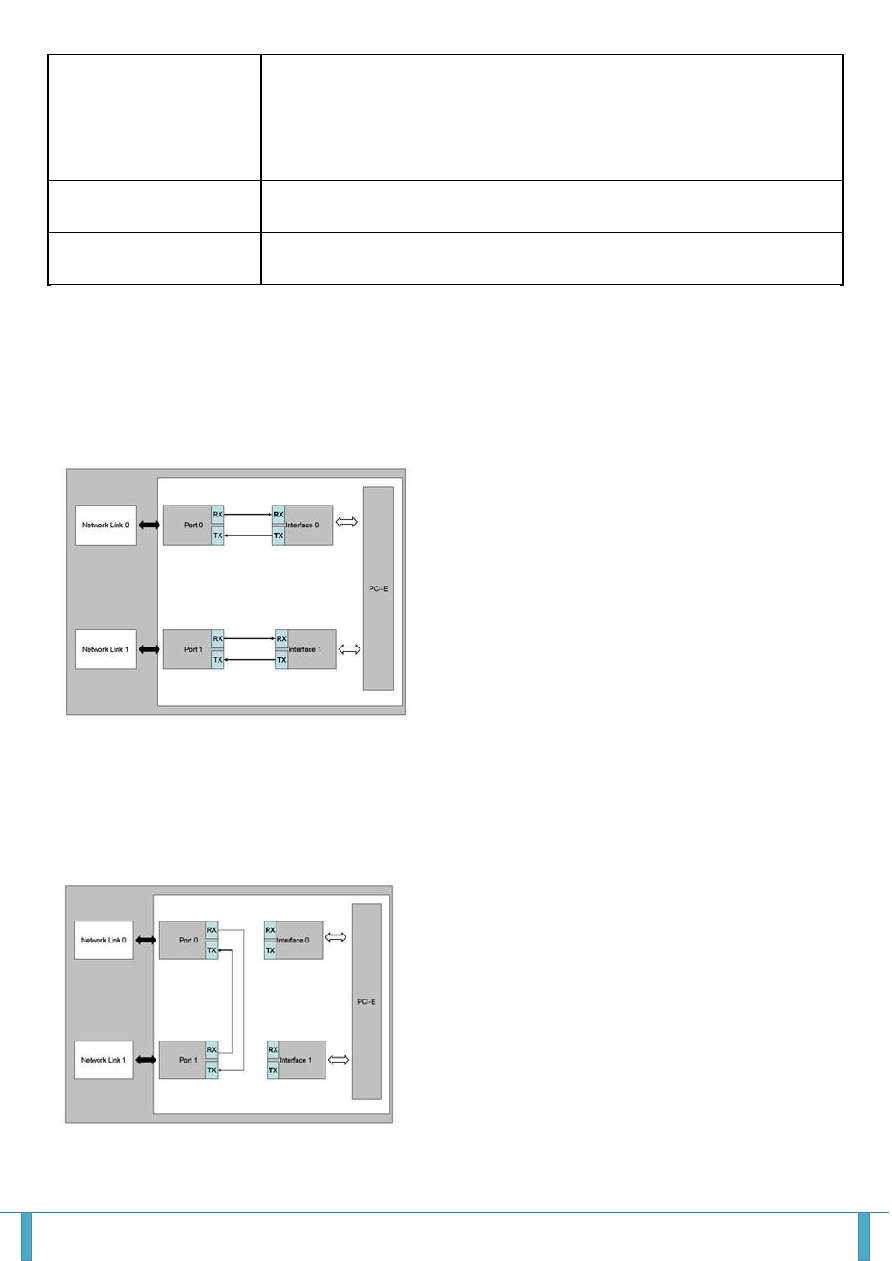

Figure 1: Normal Mode Functional Block Diagram

In Bypass mode, the connections of the Ethernet network ports are disconnected from the interfaces and switched over to the other

port to create a crossed connection loop-back between the Ethernet ports. The connections of the interfaces are left unconnected.

(See Figure 2: one Bypass pair illustrated)

Figure 2: Bypass Mode Functional Block Diagram
