LTC4372/LTC4373
8
Rev. 0
For more information www.analog.com

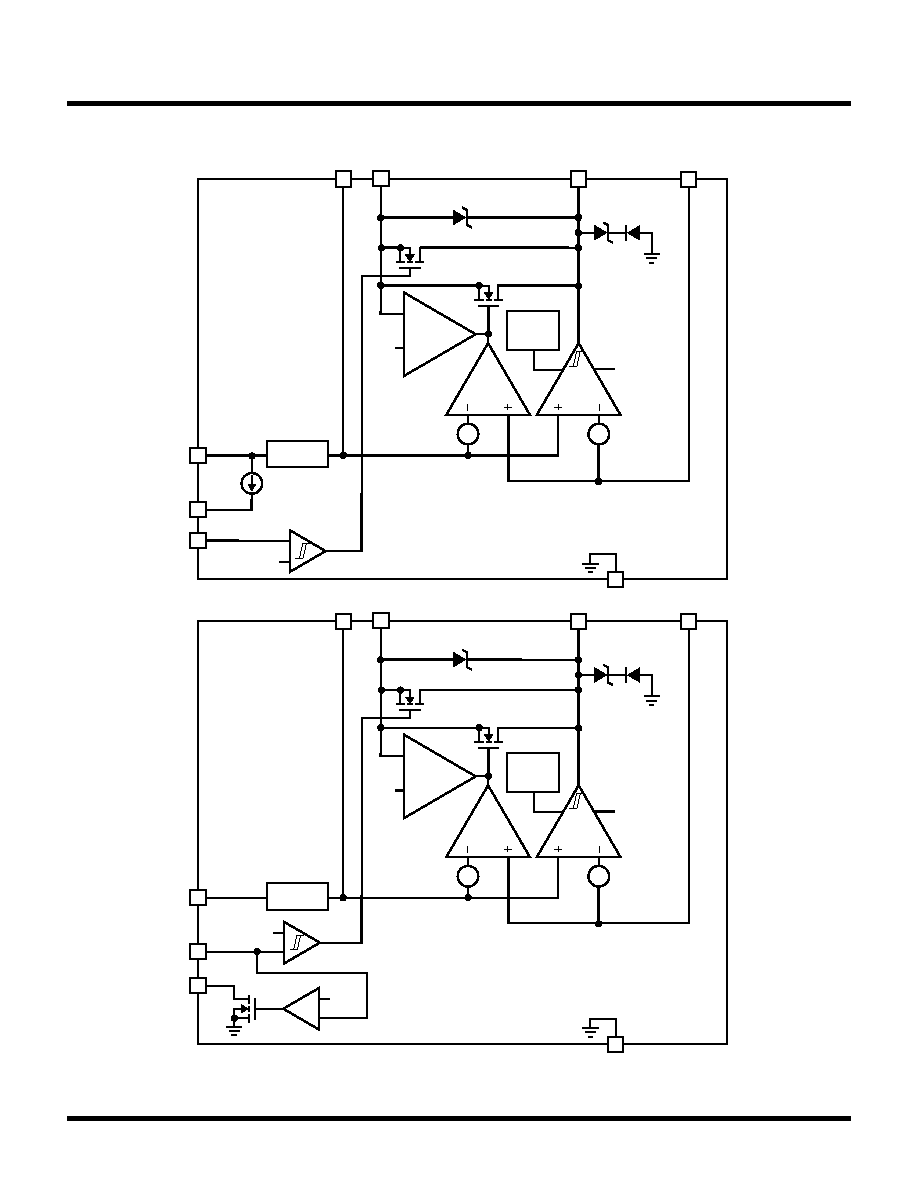

BLOCK DIAGRAM
SHDN
GND
OUT
GATE
SOURCE
IN
CHARGE
PUMP
f = 2MHz
INTVCC
2UPU
2A
32V
–1.8V
11.7V
INTVCC
REGULATOR
LTC4372
1.2V
30mV
30mV
IN
1.191V
1.191V
+
–
+
–
+–
+–
–
+
–
+
REVERSE
HYST-
ERETIC
GATE DRIVER
CURRENT
NEGATIVE
COMP
43723 BD
SHDN
COMP
UV
COMP
UVOUT
GND
OUT
GATE
SOURCE
IN
CHARGE
PUMP
f = 2MHz
INTVCC
UV
32V
–1.8V
11.7V
INTVCC
REGULATOR
LTC4373
30mV
30mV
IN
+–
+–
REVERSE
HYST-
ERETIC
GATE DRIVER
CURRENT
NEGATIVE
COMP
+
–
C1
