MODEL: KR

KR SPECIFICATIONS

ES-3536-CE Rev.9 Page 3/3

https://www.m-system.co.jp/

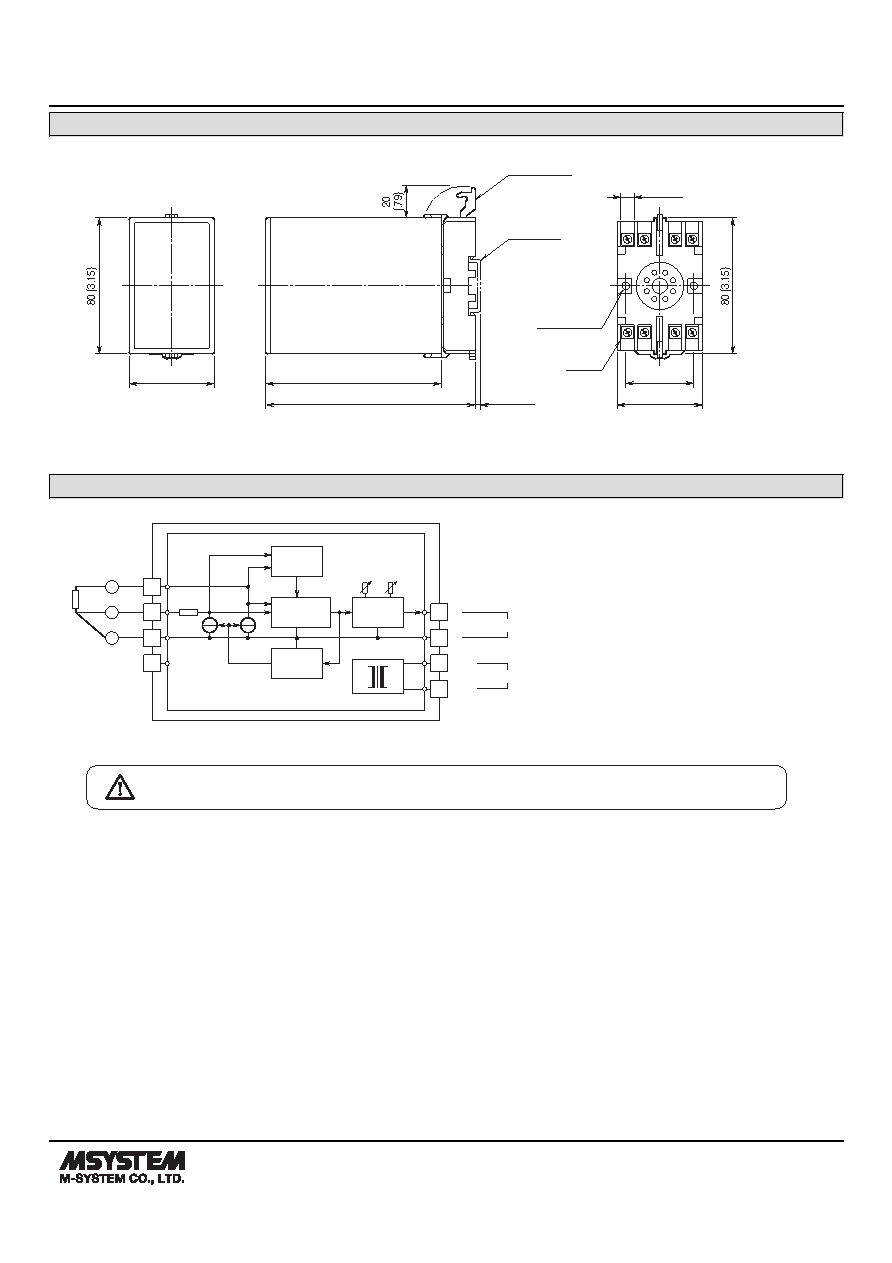

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm [inch]

3

4

5

6

2

1

8

7

50 (1.97)

103 (4.06)

123 (4.84)

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

15 (.59) deep

SCREW

• When mounting, no extra space is needed between units.

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

3

4

A

B

B

RTD

5

6

+

–

Base Socket

S

Z

Output

Driver

OUTPUT

1

2

U(+)

V(–)

POWER

7

8

Burnout

Linearizer

2mA

2mA

Differential

Amplifier

+

–

Reference

Resistor
