MODEL: M2YV

M2YV SPECIFICATIONS

ES-5020 Rev.5 Page 2/3

http://www.m-system.co.jp/

PERFORMANCE in percentage of span

Accuracy: ±0.1 %

Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)

Response time: ≤ 0.5 sec. (0 – 90 %)

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 2000 V AC @1 minute (input to output

to power to ground)

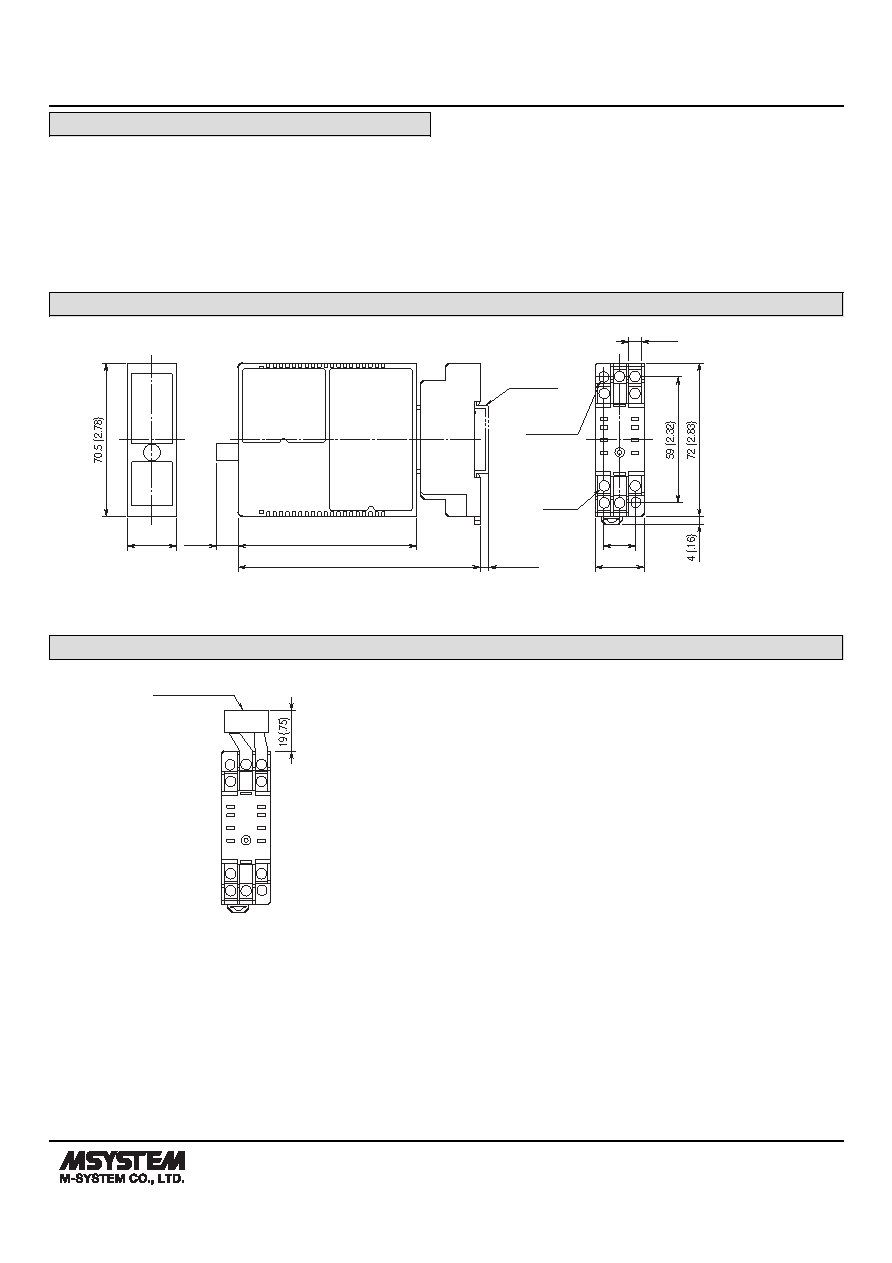

EXTERNAL DIMENSIONS unit: mm (inch)

5

9

21.5 (.85)

84 (3.31)

10 (.39)

15 (.59)

6 (.23)

DIN RAIL

35mm wide

[4 (.16)]

8–M3

SCREW

23 (.91)

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

114 (4.49)

• When mounting, no extra space is needed between units.

4

8

12

14 13

1

TERMINAL ASSIGNMENTS unit: mm (inch)

5

8

9

12

14 13

INPUT RESISTOR

(model: REM2)

Input shunt resistor attached

for current input.

1

4
