MODEL: M6NPS2

M6NPS2 SPECIFICATIONS

ES-7914 Rev.8 Page 2/3

http://www.m-system.co.jp/

EXTERNAL VIEW

(With the cover open)

Power 2 LED

Power 1 LED

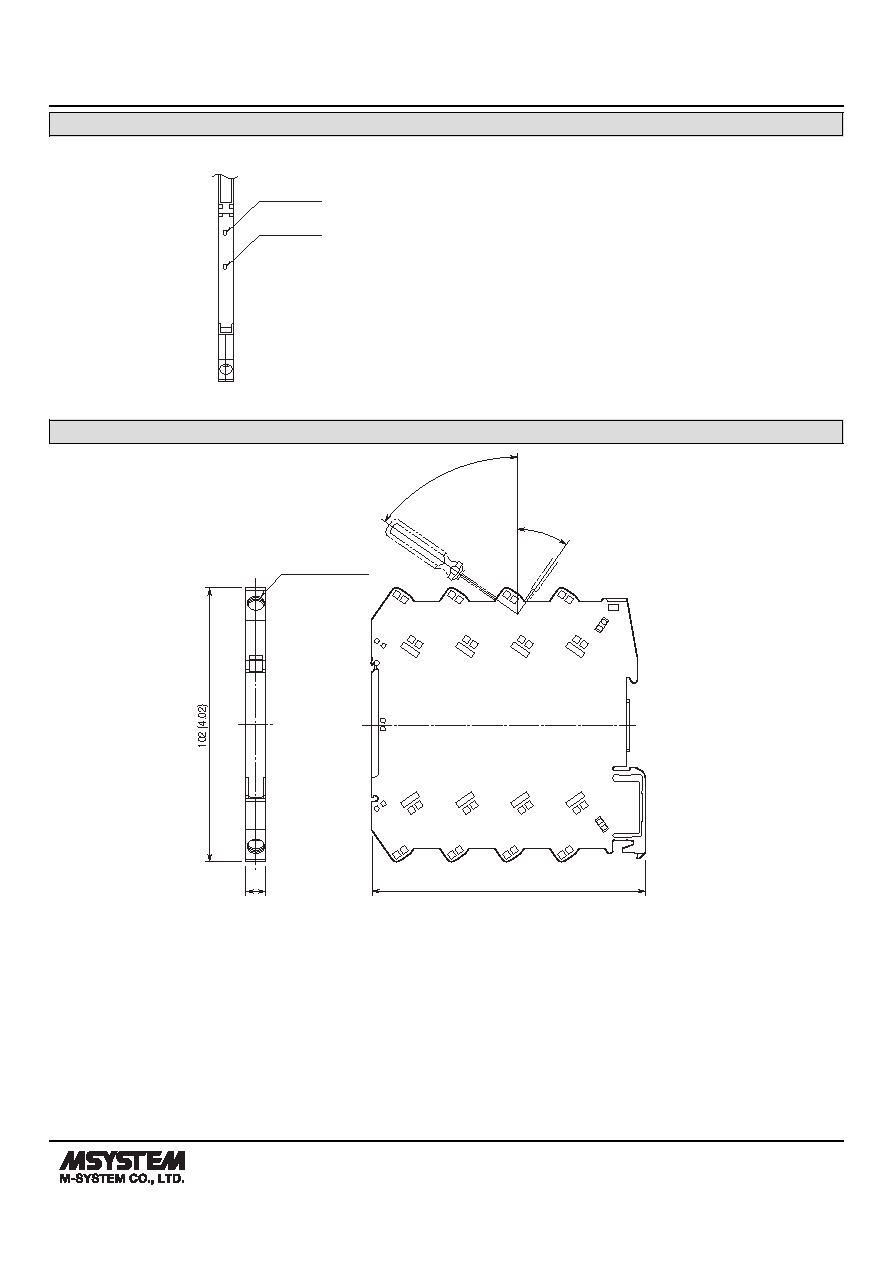

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

7.5 (.30)

*Screwdriver stem diameter: 6 mm (.24”) or less

102 (4.02)

8–M3

SCREW TERMINAL

WIRE INSERTION ANGLE

: approx. 35°

SCREWDRIVER *

INSERTION ANGLE

: approx. 55°

5

6

7

8

1

2

3

4
