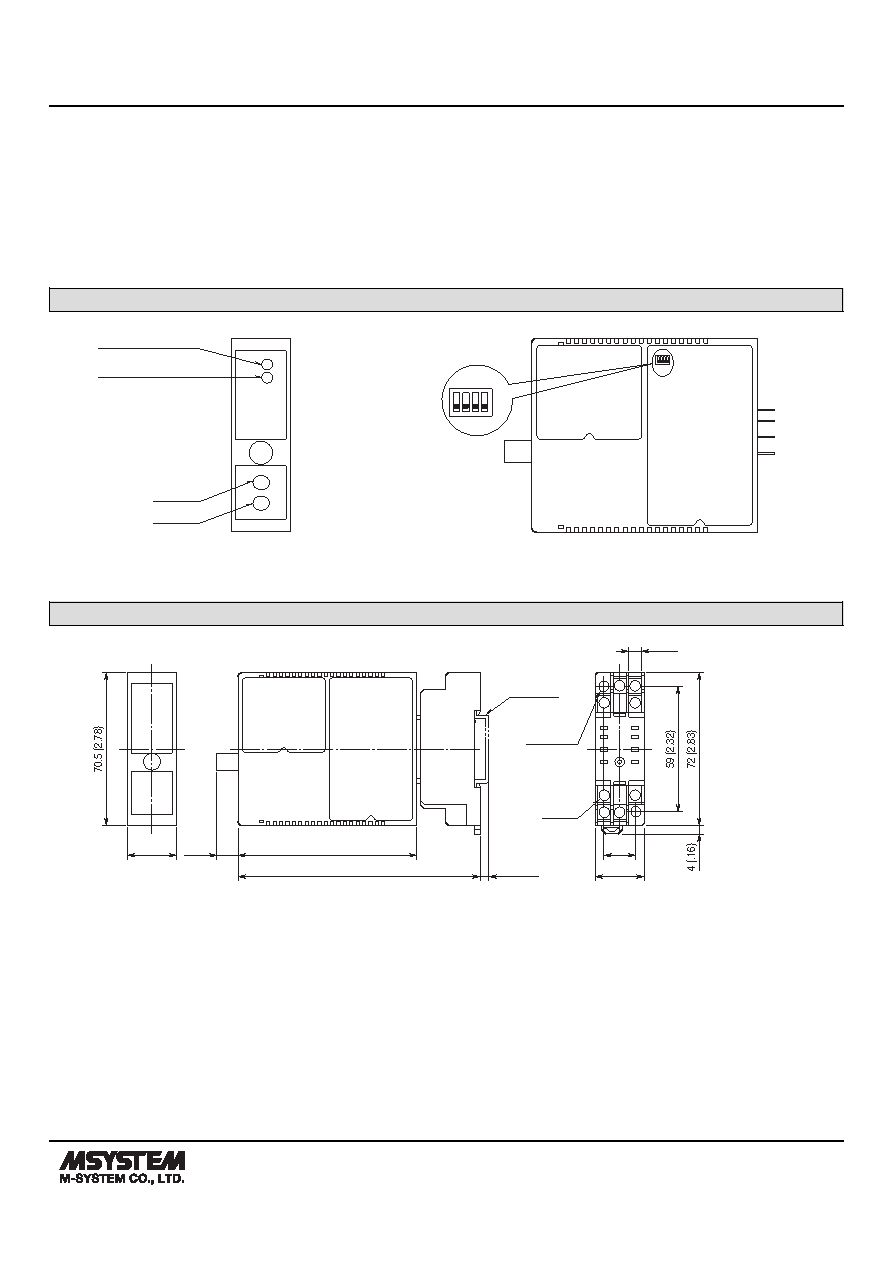

3 / 5 page  MODEL: M2PHS2 M2PHS2 SPECIFICATIONS ES-5105 Rev.8 Page 3/5 http://www.m-system.co.jp/ EN 61010-1 Measurement Category II (input) Installation Category II (power) Pollution Degree 2 Input or output to power: Reinforced insulation (300 V) Input to output: Basic insulation (300 V) RoHS Directive EN 50581 EXTERNAL VIEW ■ FRONT VIEW ■ SIDE VIEW OFF ON 1 2 3 4 SW1 Output Function Setting Zero Adj. Span Adj. Status Indicator LED1 Status Indicator LED2 Refer to the instruction manual for detailed procedures. EXTERNAL DIMENSIONS unit: mm (inch) 5 9 21.5 (.85) 84 (3.31) 10 (.39) 15 (.59) 6 (.23) DIN RAIL 35mm wide [4 (.16)] 8–M3 SCREW 23 (.91) 2–4.2x5 (.17x.20) MTG HOLE 6 (.24) deep 114 (4.49) • When mounting, no extra space is needed between units. 4 8 12 14 13 1 |
|
|
