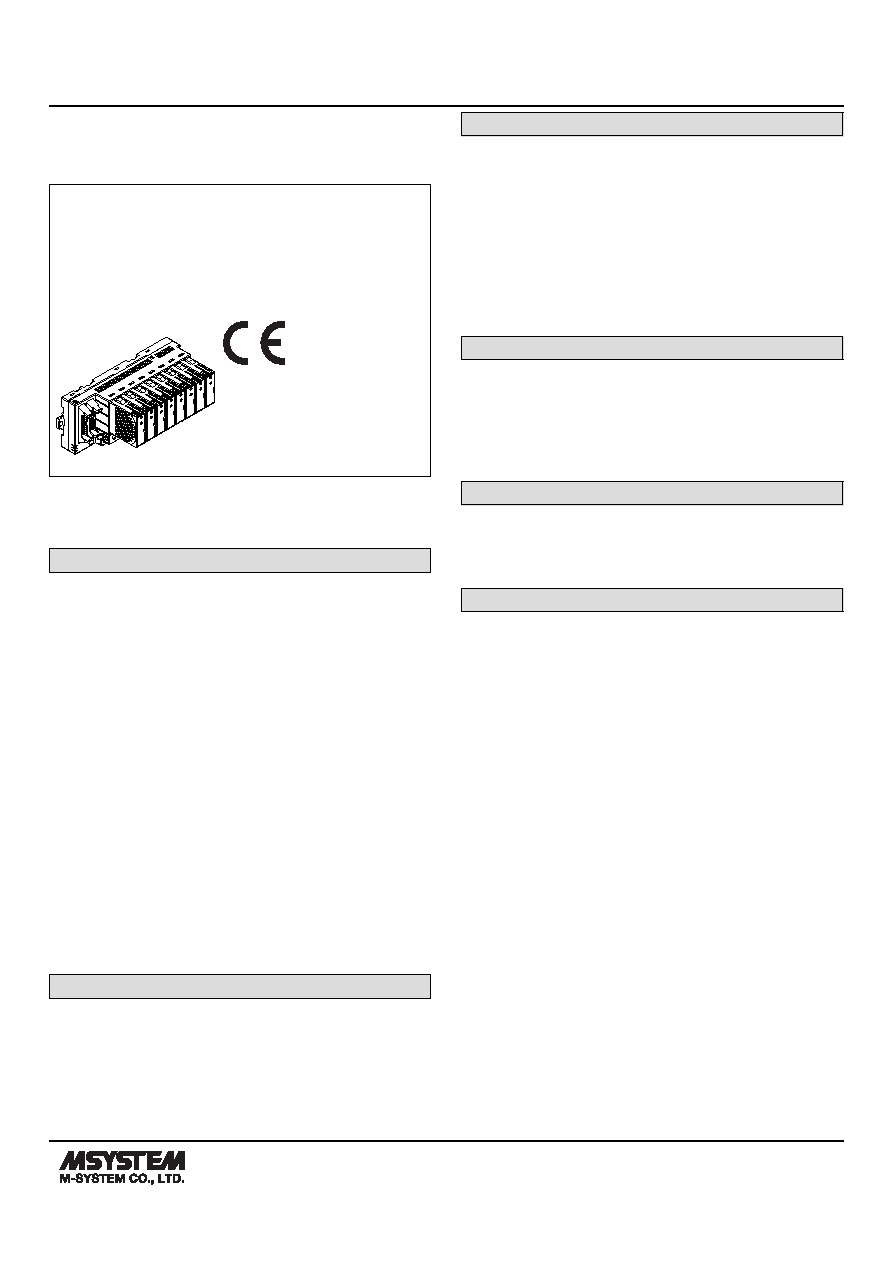

MODEL: M80BS-8

M80BS-8 SPECIFICATIONS

ES-5398 Rev.2 Page 1/3

http://www.m-system.co.jp/

Super-mini Signal Conditioners M80 Series

INSTALLATION BASE (8 positions)

Functions & Features

• Holds up to 8 modules of M80 series signal conditioners

• Distributes power from a common power source;

individual power wiring not required

• Requires only a limited wiring work within an

instrumentation panel

MODEL: M80BS-8[1][2]-R

ORDERING INFORMATION

• Code number: M80BS-8[1][2]-R

Specify codes from below for each of [1] and [2].

(e.g. M80BS-811-R)

[1] I/O TYPE

1: Input (M80YV, etc.)

2: Output (M80YS, etc.)

[2] CONNECTION

1: CN1 3M Company 3428-6002 LCPL

CN2 Without

2: CN1 3M Company 3428-6002 LCPL

CN2 3M Company 3428-6002 LCPL

POWER INPUT

DC Power

R: 24 V DC

(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)

RELATED PRODUCTS

• Connector terminal block (model: CNT)

• Special cable (model: MCN201)

GENERAL SPECIFICATIONS

Capacity: 8 positions

Connection

Power input: M3 screw terminals (torque 0.6 N·m)

I/O teminal: M3 screw terminals (torque 0.6 N·m)

I/O connector: 3M Company 3428-6002 LCPL

Screw terminal: Nickel-plated steel

Housing material: Flame-resistant resin (gray)

Isolation: Input to output to power to FG

Power indicator LED: Turns On when power is supplied

INSTALLATION

Current consumption: ≤ 0.5 A

Operating temperature: -5 to +55°C (23 to 131°F)

Operating humidity: 5 to 95 %RH (non-condensing)

Mounting: Surface or DIN rail

Weight: 250 g (0.55 lb)

PERFORMANCE

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 1000 V AC @1 minute (input to output

to power or FG)

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

EN 50581
