MODEL: MXAP

MXAP SPECIFICATIONS

ES-1731 Rev.10 Page 4/5

http://www.m-system.co.jp/

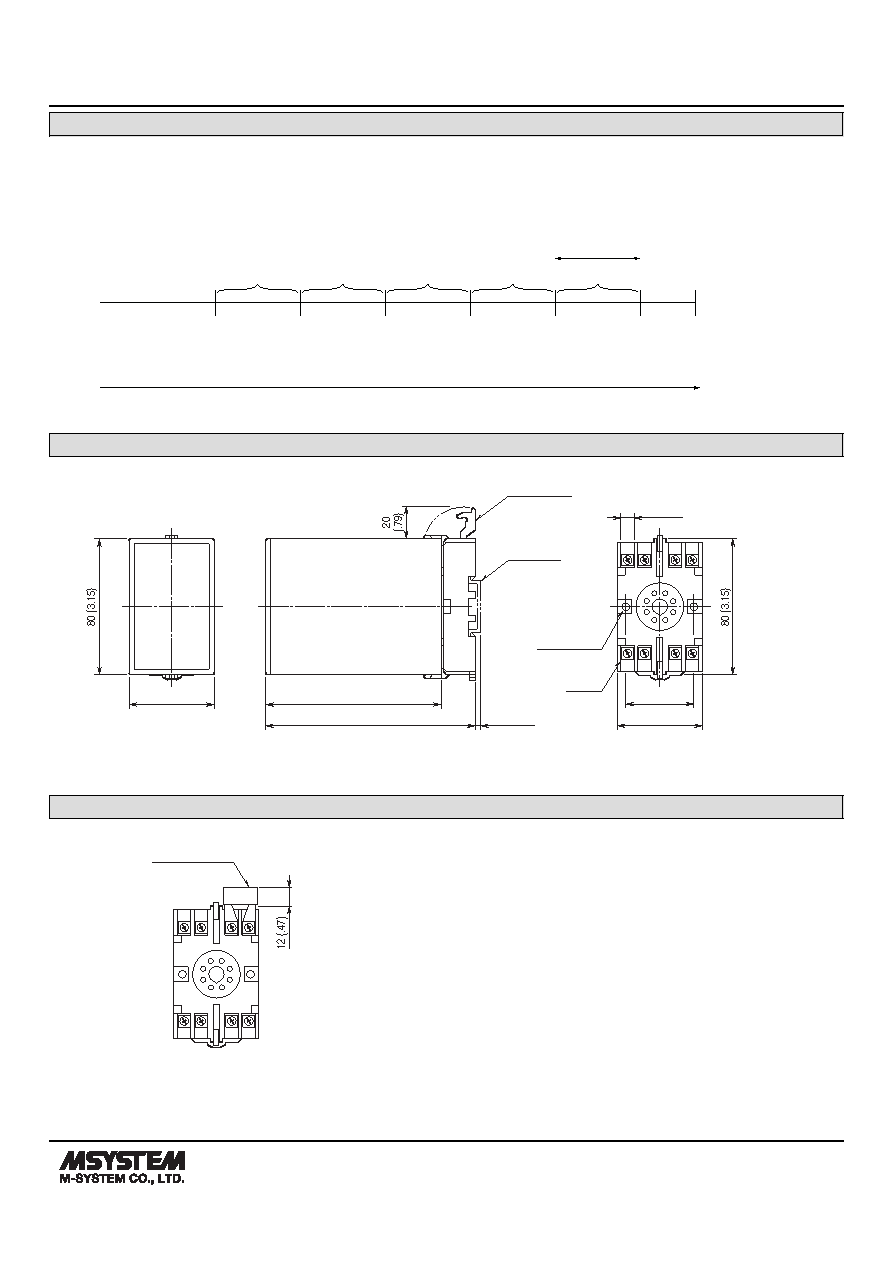

RECALLING PAST TOTALIZED COUNT

(1)

Preset

Auto Reset Time

Last Auto Reset

(once before)

(2)

Two Times

Before

(3)

Three Times

Before

(4)

Four Times

Before

(5)

Five Times

Before

Six Times

Before

Time

Present

Past totalized pulse counts at the moment of auto-reset can be recalled for five times.

For example, the totalized count during the period indicated with (5) in the figure below are recalled in one of the

ITEM 27 (upper 4 digits) and 28 (lower 4 digits). Likewise, (1) through (4) are also recalled in ITEM 29 through 36.

The displayed are renewed by every auto resetting. If the auto-reset is not specified, this function is not valid.

EXTERNAL DIMENSIONS unit: mm (inch)

3

4

5

6

2

1

8

7

50 (1.97)

103 (4.06)

123 (4.84)

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

15 (.59) deep

SCREW

• When mounting, no extra space is needed between units.

TERMINAL ASSIGNMENTS unit: mm (inch)

5

6

2

1

8

7

3

4

INPUT RESISTOR

(model: REM)

Input shunt resistor attached

for current input.
