MODEL: MNV

MNV SPECIFICATIONS

ES-1691 Rev.9 Page 3/3

http://www.m-system.co.jp/

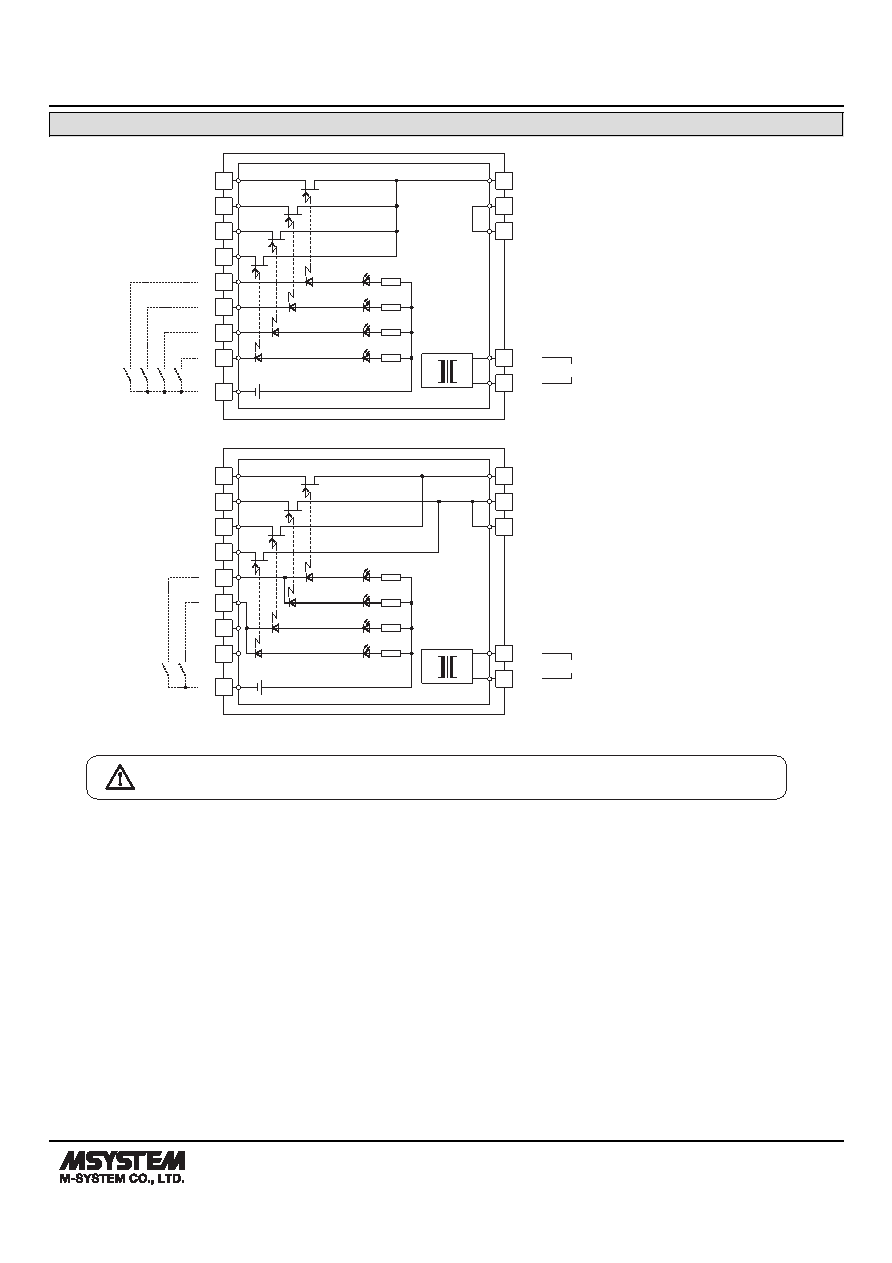

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

Mon. LED 1

Base Socket

6

9

11

2

3

U(+)

V(–)

POWER

7

14

A1

B

+

5

15

A2

+

12

10

A3

+

4

1

A4

+

8

–

S1

S2

S3

S4

SWITCHING

COMMAND

■SINGLE CIRCUIT

Base Socket

6

9

11

2

3

U(+)

V(–)

POWER

7

14

A1–1

B–1

B–2

+

5

15

A1–2

+

12

10

A2–1

4

1

A2–2

8

–

S1

S2

SWITCHING

COMMAND

■DOUBLE CIRCUIT

Mon. LED 2

Mon. LED 3

Mon. LED 4

SW1

SW2

SW3

SW4

Mon. LED 1

Mon. LED 2

Mon. LED 3

Mon. LED 4

SW1

SW2

SW3

SW4

The MNV can select and output one signal (B) from

among the 4 channels (A1 – A4) or distribute a single

analog signal (B) to any or all of the channels (A1 – A4).

The MNV can select either (B) of the 2 channels (A1, A2)

as output or distribute a single analog signal (B) to either

or both channels (A1, A2).

Specifications are subject to change without notice.
