MODEL: SVA

SVA SPECIFICATIONS

ES-1309 Rev.6 Page 3/3

http://www.m-system.co.jp/

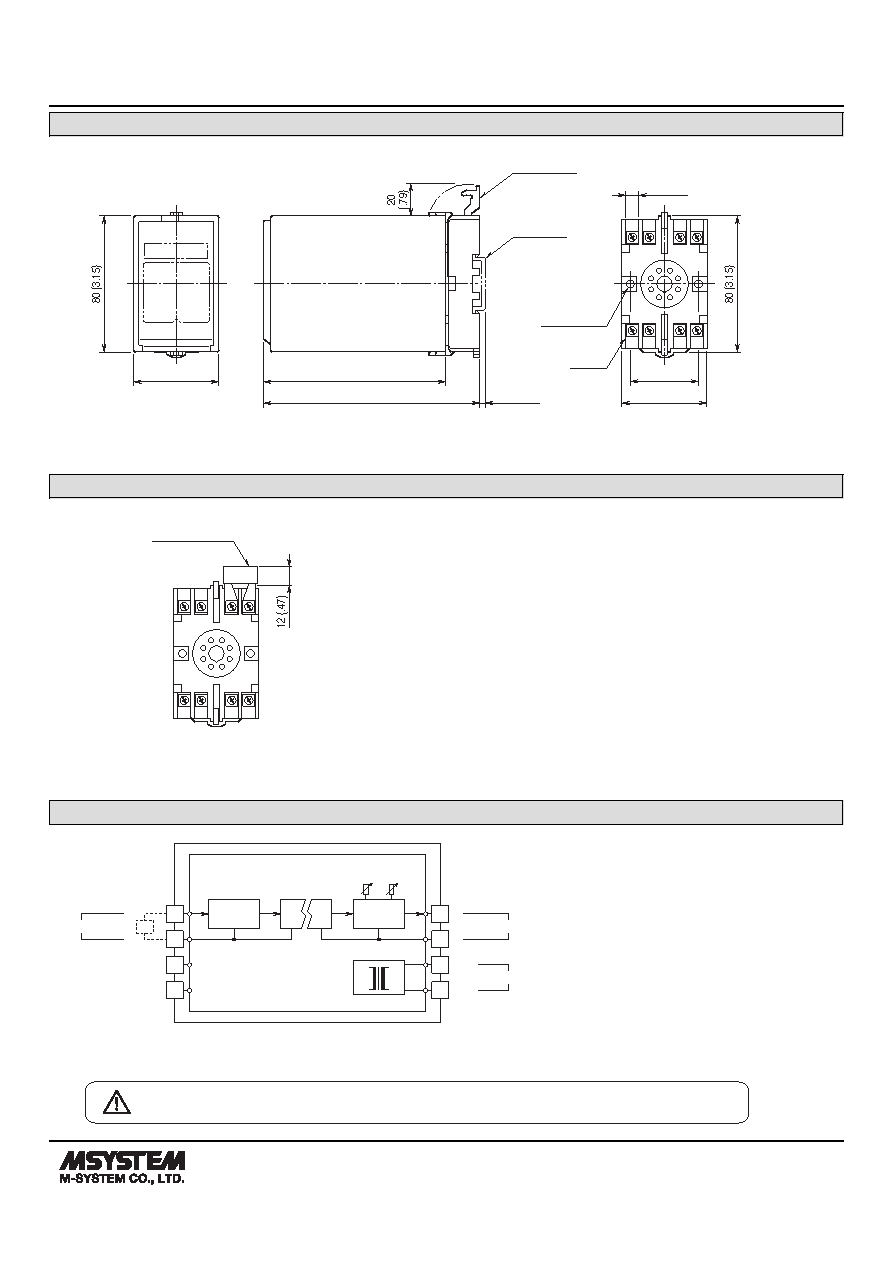

EXTERNAL DIMENSIONS unit: mm (inch)

3

4

5

6

2

1

8

7

50 (1.97)

107 (4.21)

127 (5)

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

2–4.5 (.18) dia.

MTG HOLE

15 (.59) deep

8–M3.5

SCREW

• When mounting, no extra space is needed between units.

TERMINAL ASSIGNMENTS unit: mm (inch)

5

6

2

1

8

7

3

4

INPUT RESISTOR

(model: REM)

Input shunt resistor attached

for current input.

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

+

–

+

–

Isolation

*

Base Socket

S

Z

*Input shunt resistor attached for current input.

INPUT

3

Low Drift

Amplifier

Output

Driver

OUTPUT

R

4

5

6

1

2

U(+)

V(–)

POWER

7

8

Specifications are subject to change without notice.
