MODEL: WJFT

WJFT SPECIFICATIONS

ES-2279 Rev.8 Page 3/6

http://www.m-system.co.jp/

PERFORMANCE in percentage of span

Accuracy: ±0.1 %

Temp. coefficient: ±0.015 %/°C (±0.008 %/°F)

Response time: ≤ 0.5 sec. (0 – 90 %) without any function

setting

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength: 2000 V AC @1 minute

(input to output to power to ground)

1000 V AC @ 1 minute (output 1 to output 2)

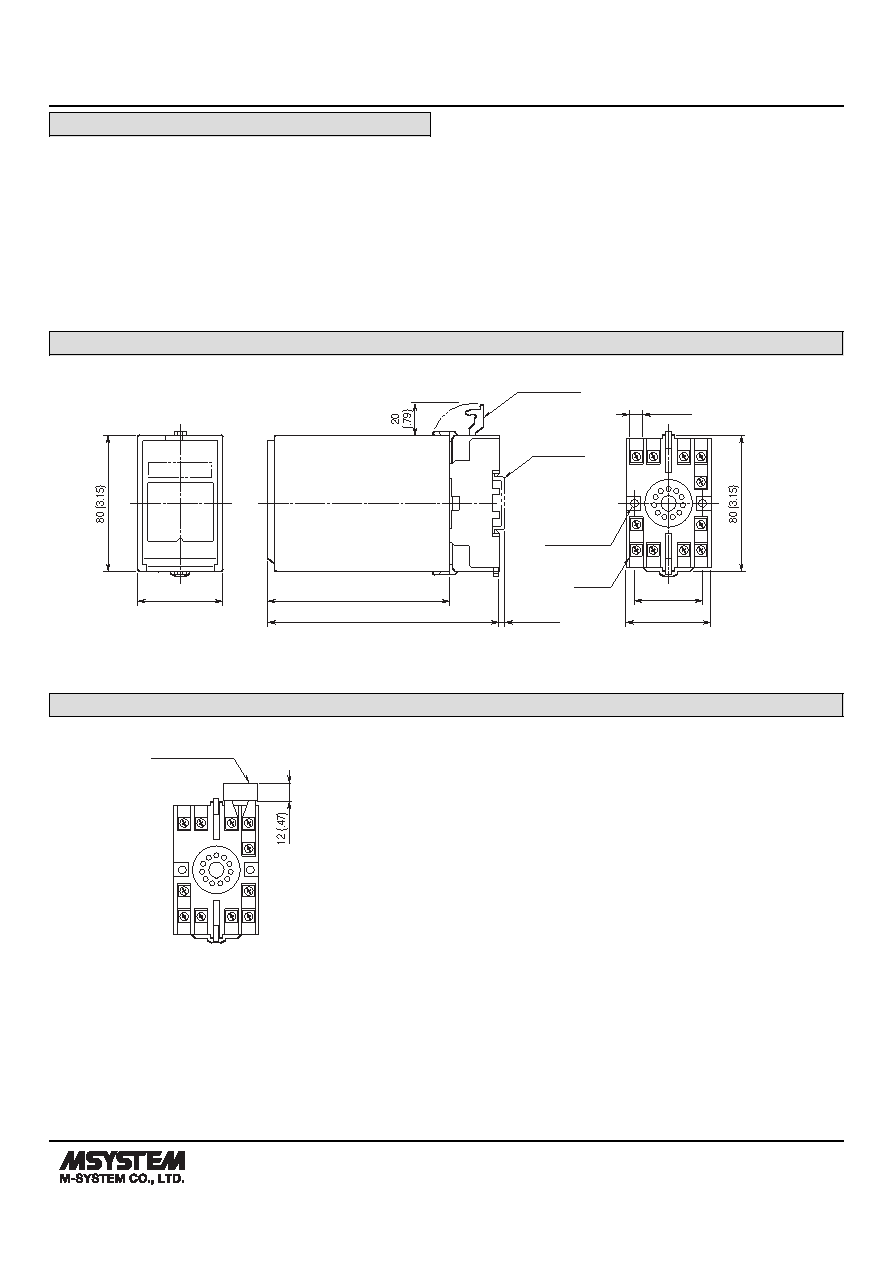

EXTERNAL DIMENSIONS unit: mm (inch)

5

6

7

8

2

1

11

10

50 (1.97)

107 (4.21)

136 (5.35)

[3.3 (.13)]

40 (1.57)

50 (1.97)

7.8 (.31)

CLAMP

(top & bottom)

DIN RAIL

35mm wide

MTG HOLE

25 (.98) deep

SCREW

• When mounting, no extra space is needed between units.

3

9

4

TERMINAL ASSIGNMENTS unit: mm (inch)

7

8

2

1

11

10

3

9

4

INPUT RESISTOR

(model: REM)

5

6

Input shunt resistor attached

for current input.
