MODEL: 47NLN

47NLN SPECIFICATIONS

ES-9563 Rev.4 Page 3/4

https://www.m-system.co.jp/

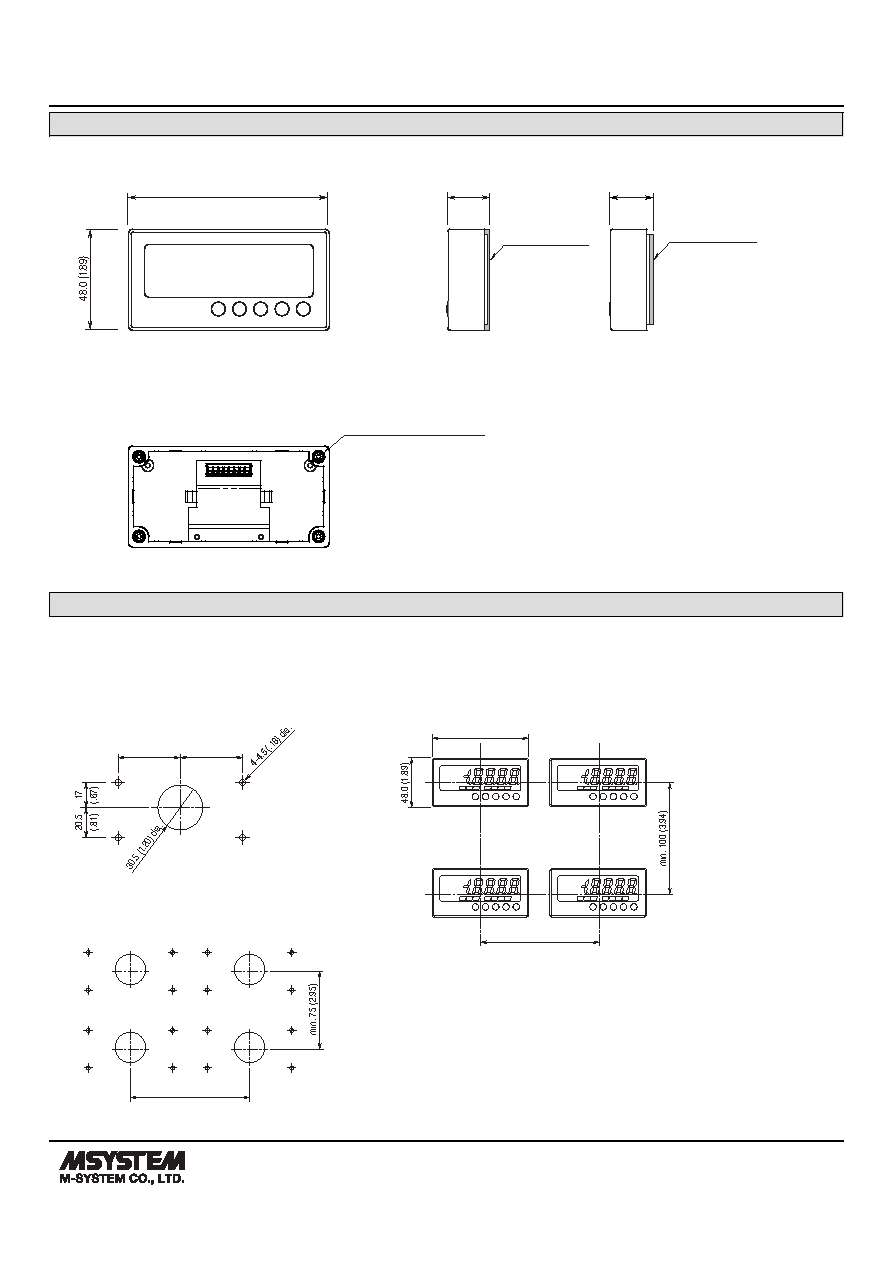

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

96.0 (3.78)

20.0(.79)

■ FRONT VIEW

■ REAR VIEW

■ SIDE VIEW

• SCREW MOUNTING

• MAGNET MOUNTING

Watertight packing

20.0(.79)

Magnet label sheet

1 2 3 4 5 6 7 8

MOUNTING REQUIREMENTS unit: mm (inch)

■ PANEL MOUNTING

  (Conform to degree of protection IP66)

Panel cutout must be such as M-System specified. Use

watertight packing and unit fixing screws included in the

product package.

42.25 (1.66)

42.25 (1.66)

• Single Mounting unit: mm (inch)

■ MAGNET MOUNTING

  (Not conform to degree of protection IP66)

Panel cutout is not required. Use magnet sheet and stopper

included in the product package.

• Clustered Mounting unit: mm (inch)

• Clustered Mounting unit: mm (inch)

96.0 (3.78)

min. 120 (4.72)

min.120 (4.72)

Panel thickness: 1.0 to 3.2 mm

Panel thickness: 1.0 to 3.2 mm
