MODEL: 40DCT

40DCT SPECIFICATIONS

ES-9538 Rev.8 Page 3/7

https://www.m-system.co.jp/

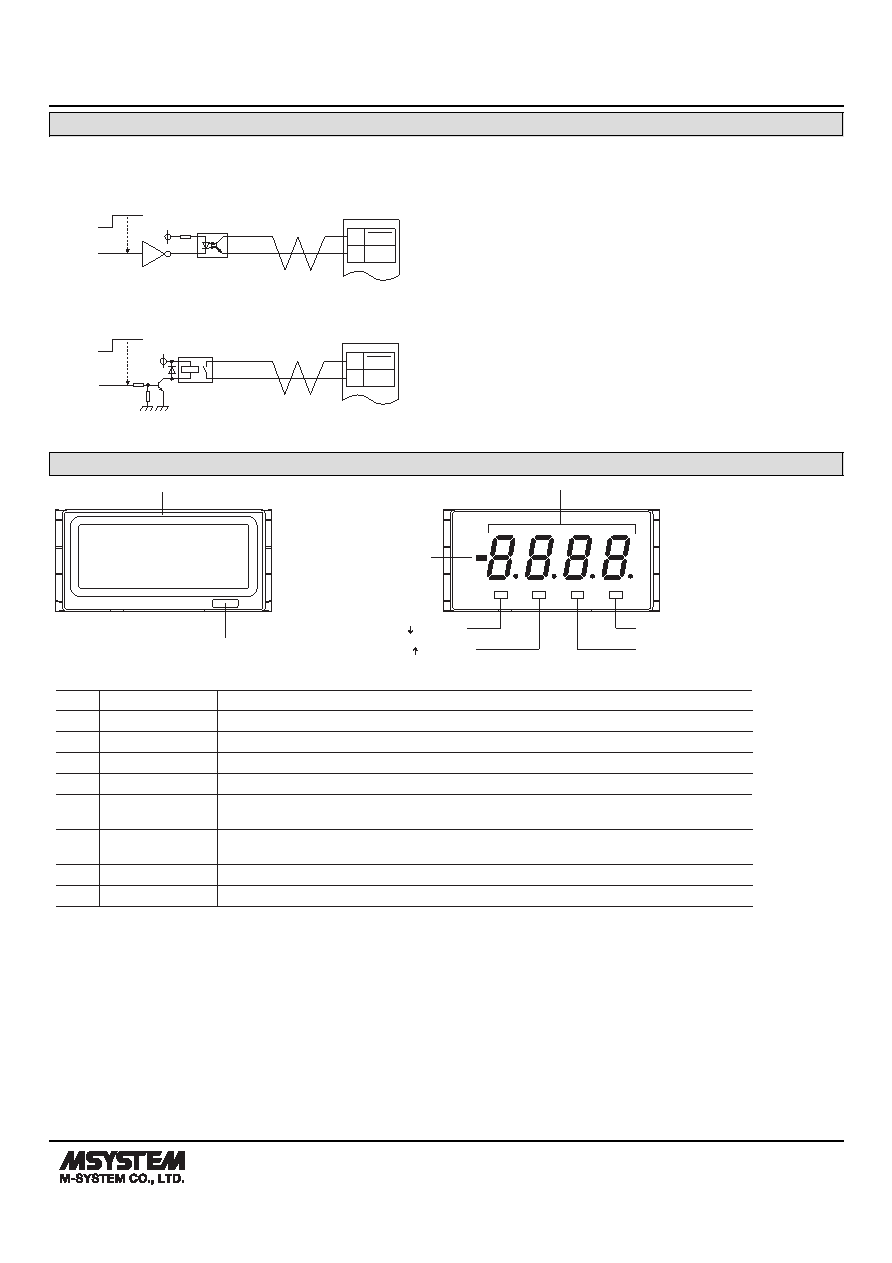

DISPLAY HOLD COMMAND

Displayed value is held with an external HOLD command input. Connect the contacts across HOLD to COM.

(Isolate with photo-coupler or relay as terminals 3 and 4 are not isolated to input signal, terminals 1 and 2.)

L

HOLD

H

L

HOLD

H

Twisted pair cable

Twisted pair cable

3

4

COM

(a) Photo-Coupler

(b) Relay

Relay

Photo-Coupler

HOLD

3

4

COM

HOLD

EXTERNAL VIEW

(2) Sticker Label

(1) Front Panel

(5) Disp/

Button

(3) 4-digit Display

(4) Polarity Indicator

(6) Scale/

Button

(8) Up Button

(7) Shift Button

■ FUNCTION TABLE

No.

COMPONENT

FUNCTIONS

(1)

Front panel

Removed at configuration.

(2)

Sticker label

Engineering unit label position

(3)

4-digit display

4-digit LED display. Range: 0 to 9999 (not including decimal point)

(4)

Polarity indicator

Turns on when negative value is displayed.

(5)

Disp/

button

Used to move on to the display setting modes, to shift through setting items in each setting mode,

or shift through display digits in each setting item.

(6)

Scale/

button

Used to move on to the scaling setting modes, to shift through setting items in each setting mode,

or shift through display digits in each setting item.

(7)

Shift button

Used to move on to the setting standby status.

(8)

Up button

Used to select setting value.

↓

↑
