MODEL: 40DPT

40DPT SPECIFICATIONS

ES-9537 Rev.7 Page 5/7

https://www.m-system.co.jp/

• Input scaling

Zero and full scale of input range can be re-configured to user's desired value by entering parameters.

When initialization of setting is executed, these data is lost and return to the default value.

Input Scaling Value A:

Input value for zero point

(Input scaling value A < Input scaling value B)

Enter the value you want to set to zero in the measurement range.

Input Scaling Value B:

Input value for full scale point

Enter the value you want to set to full scale in the measurement range.

• Display scaling

Display Scaling Value A:

Display value for Input Scaling Value A

Display Scaling Value B:

Display value for Input Scaling Value B

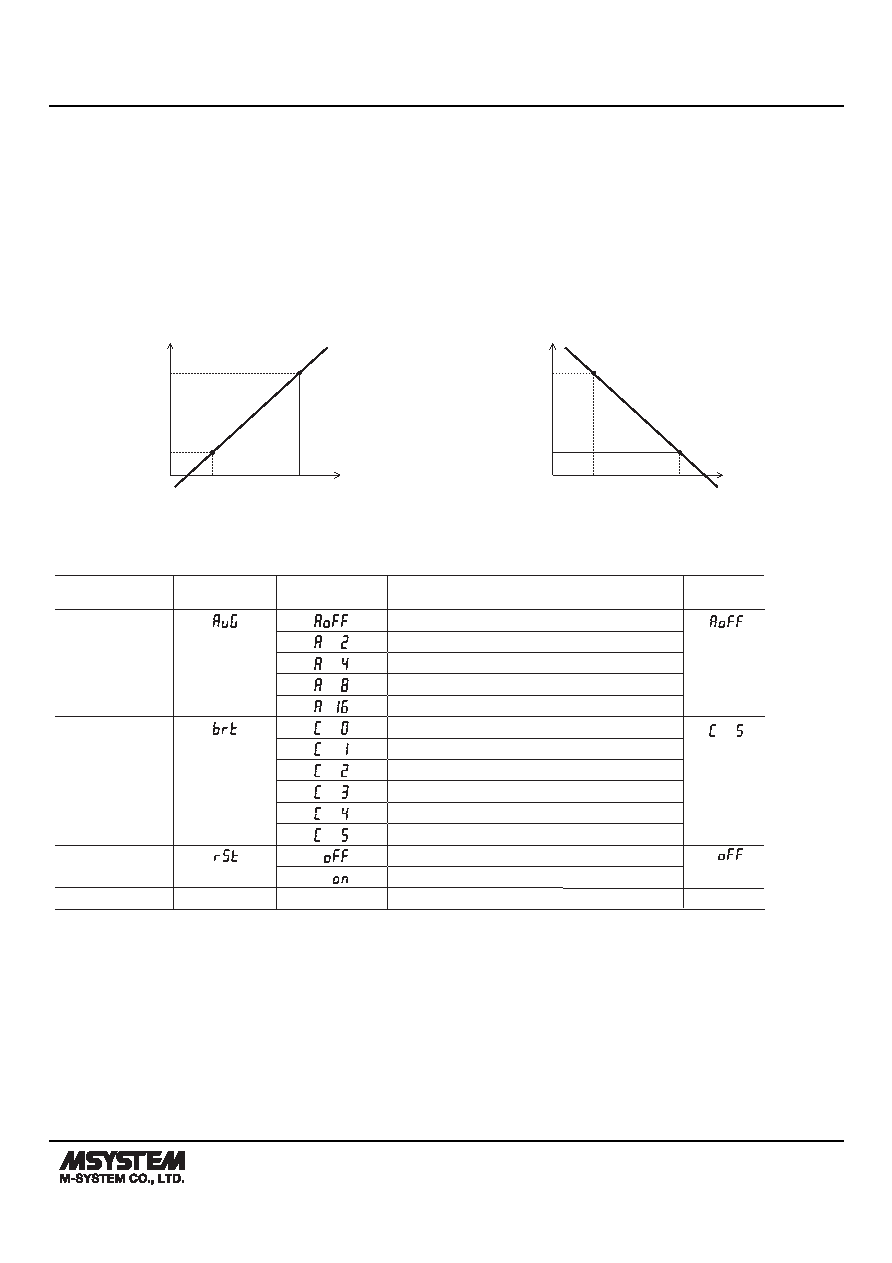

• Normal Scaling

The display value increases when the input signal increases.

• Inverted Scaling

The display value decreases when the input signal increases.

A

A

B

B

Display

Zero

Full Scale

Input

Input Scaling

Display Scaling

B

A

B

A

Display

Full Scale

Zero

Input

Input Scaling

Display Scaling

Decimal point position: Decimal point position is specified independently from the scaling. When you set the display scaling, include zeros

for fractions.

■ DISPLAY SETTING MODE

PARAMETER

ITEM DISPLAY

DISPLAY

FUNCTION

Moving Average

No moving averaging

Moving average with 2 samples

Moving average with 4 samples

Moving average with 8 samples

Moving average with 16 samples

Brightness

Brightness level 0 (dark)

Brightness level 1

Brightness level 2

Brightness level 3

Brightness level 4

Brightness level 5 (bright)

Initialization

Non-initialization

Version Indication

–

–

Version number, indication only

*1. While “on” is shown, pressing Shift button initializes settings.

When initialization of setting is executed, existing each parameter setings are lost and return to default value.

Be aware that settings does not return to the ex-factory settings specied by /SET option.

−

DEFAULT

VALUE
