MODEL: 48SV2
48SV2 SPECIFICATIONS
ES-9315 Rev.3 Page 5/6
https://www.m-system.co.jp/

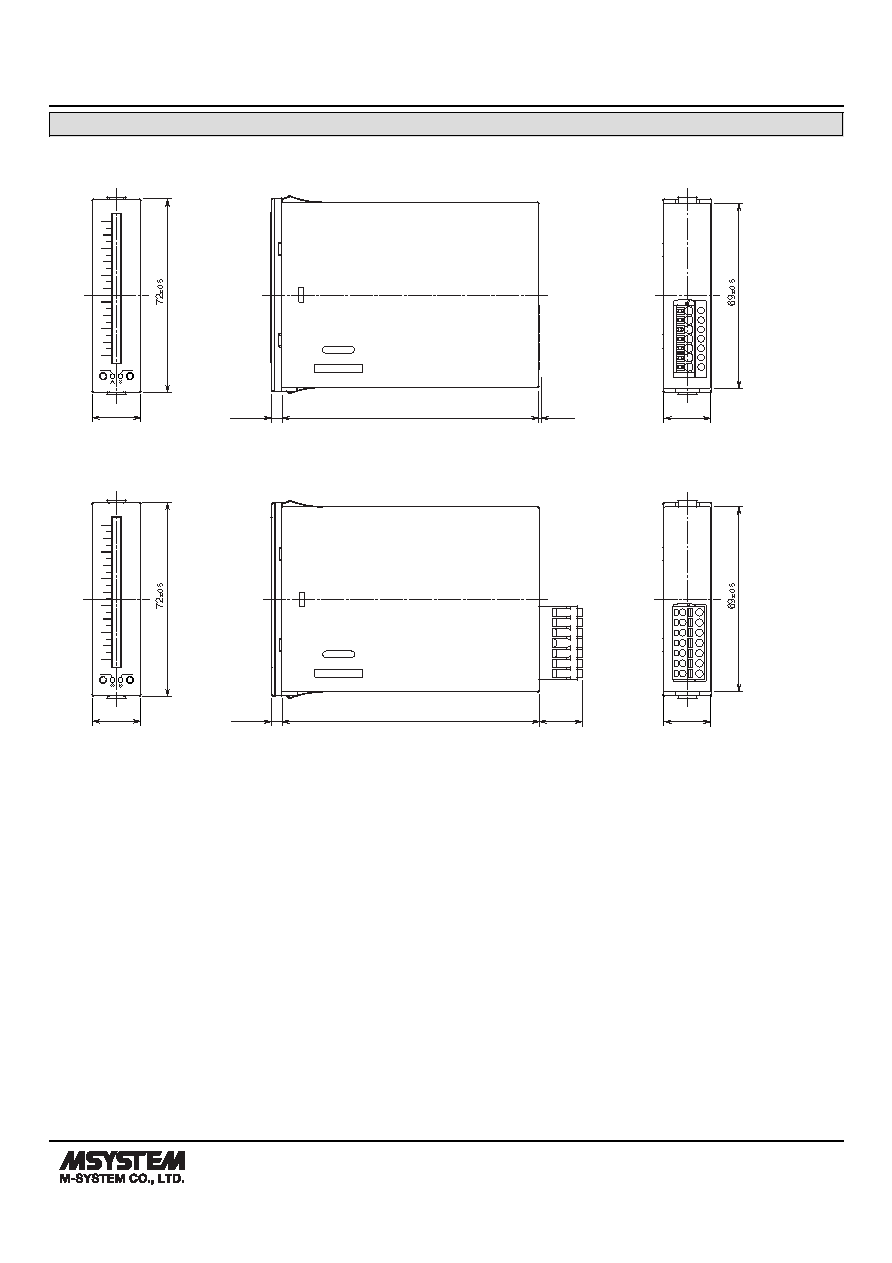

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm
100
OR
80
60
40
20
0
%
Approx. 0.5
96±0.5
4±0.5
18±0.5
17.5±0.5
■ SCREWLESS SPRING TERMINAL
ZERO
SPAN
DOWN
UP
1
2
3
4
5
6
7
Approx.16
96±0.5
4±0.5
17.5±0.5
■ SEPARABLE SCREWLESS SPRING TERMINAL
100
OR
80
60
40
20
0
%
18±0.5
ZERO
SPAN
DOWN
UP
1
2
3
4
5
6
7
