MODEL: 60M

60M SPECIFICATIONS

ES-6606 Rev.12 Page 5/5

http://www.m-system.co.jp/

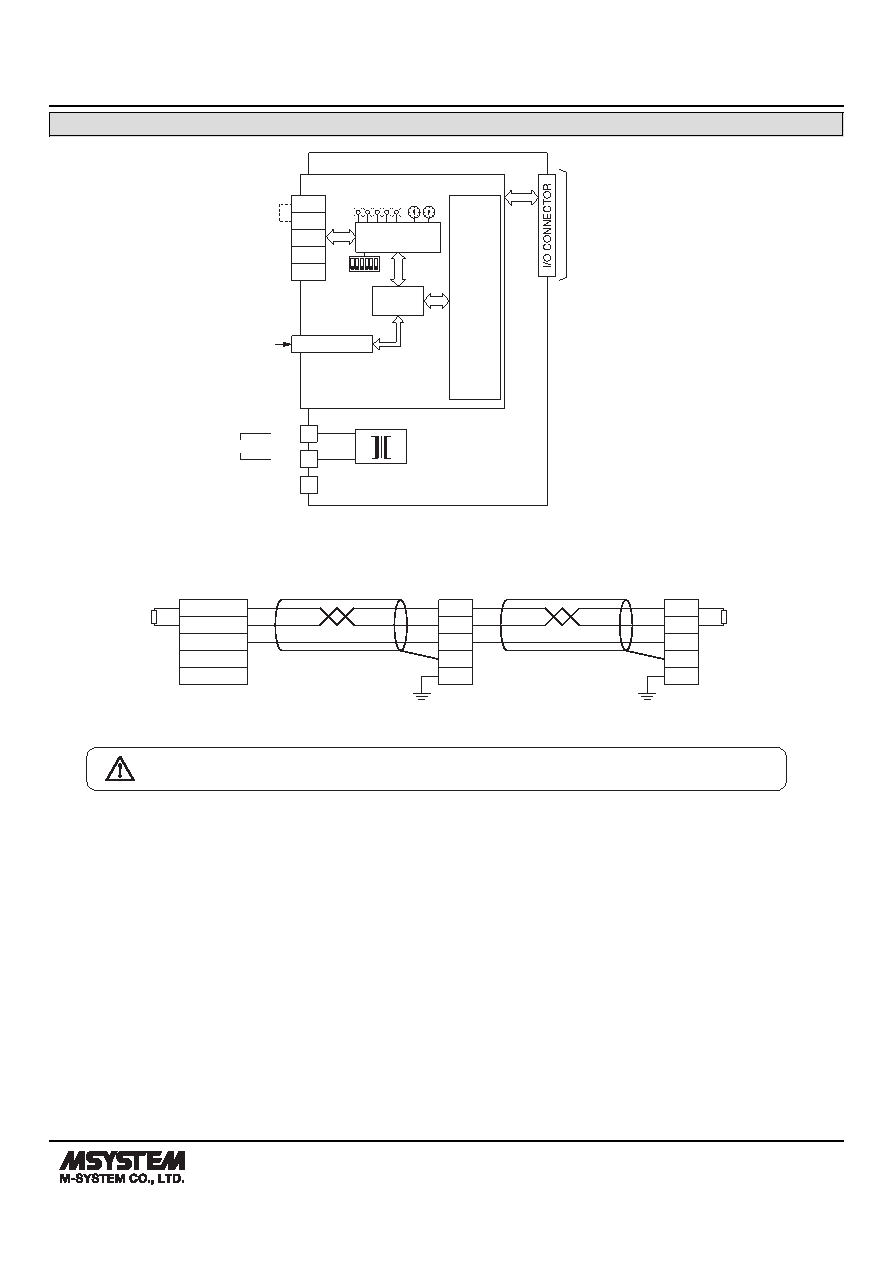

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

A / D

or

D / A

Conv.

I / O

CPU

RS-485

INTERFACE

SERIAL

TRANSMISSION

LINE

Modular Jack

for Factory

Calibration

MODULAR JACK

ROTARY

SW

INDICATOR

LED

TRANSMISSION

SETTING

DA

DB

DG

SLD

FG

U(+)

V(–)

POWER

7

14

FG1

8

To Other

Modbus

Devices

COMMUNICATION MODULE

Terminator

*

*Attach the terminating resistor when the module is

at the termination of a transmission line.

To 10-RACK,

18-RACK etc.

■ COMMUNICATION CABLE CONNECTIONS

TERMINATOR

Tx+ / Rx+

Tx– / Rx–

SG

Rx+

Rx–

HOST PC

DA

DB

DG

SLD

FG

DA

DB

DG

SLD

FG

ANALOG I/O MODULE

ANALOG I/O MODULE

FG

FG

Specifications are subject to change without notice.
