MODEL: 60D

60D SPECIFICATIONS

ES-6604 Rev.15 Page 3/4

https://www.m-system.co.jp/

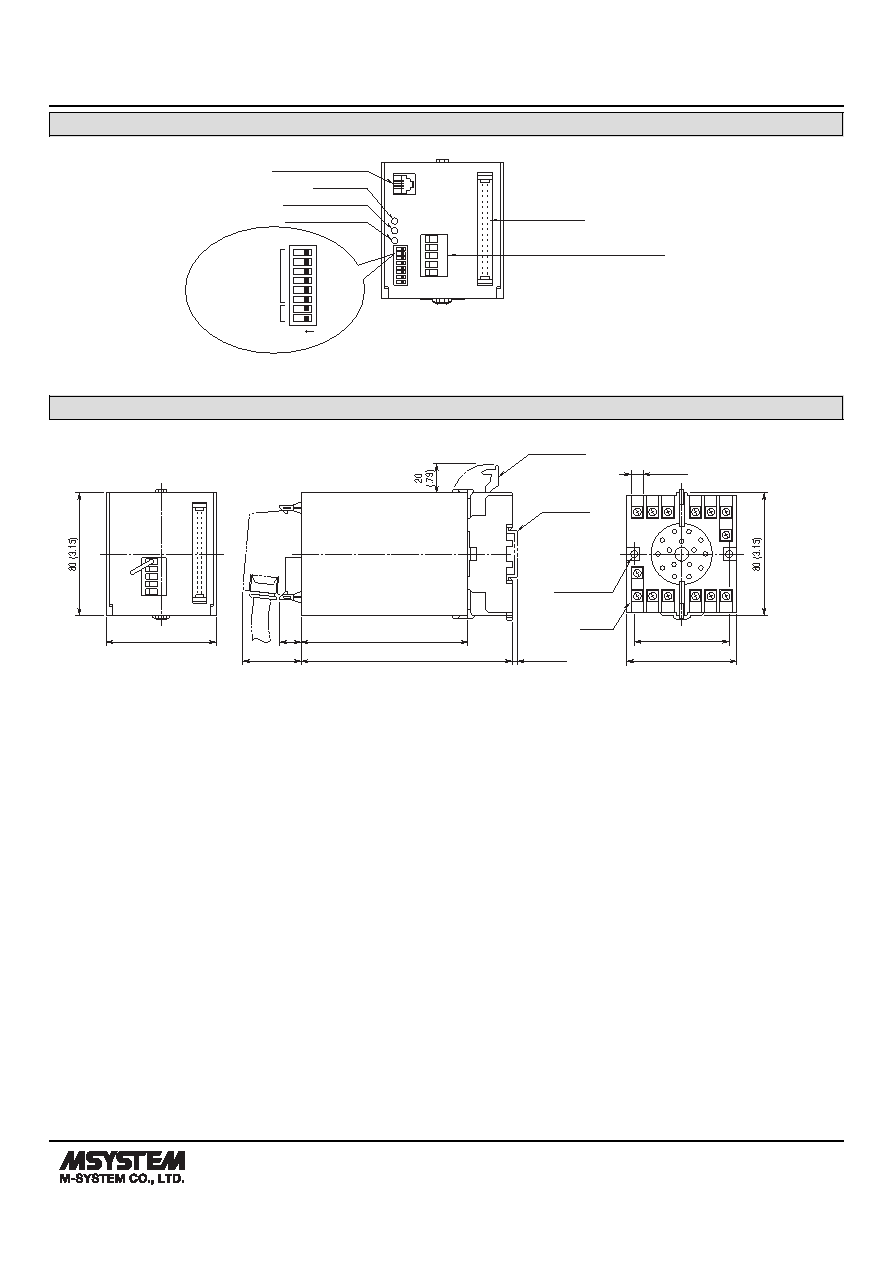

EXTERNAL VIEW

MS

NS

CN1

PWR

I/O Connector

Euro Type Connector Terminal

for DeviceNet

NA1

NA0

NA2

NA3

NA4

NA5

DR0

DR1

ON

Node

Address

Setting

Baud Rate

Setting

NS Indicator LED

MS Indicator LED

Power LED

PU-2x Modular Jack

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

14

(.55)

38 (1.50)

72 (2.83)

109 (4.29)

139 (5.47)

[3.3 (.13)]

CLAMP

(top & bottom)

DIN RAIL

35mm wide

•When mounting, no extra space is needed between units.

60 (2.36)

72 (2.83)

7.8 (.31)

2–4.5 (.18) dia.

MTG HOLE

25 (.98) deep

14–M3.5

SCREW

12

5

6

14

11

1

10

15

4

3

2

7

9

8
