ABSOLUTE MAXIMUM RATINGS

Table 2.

Parameter

Rating

Positive Supply Voltage

−0.3 V to +3.7 V

Negative Supply Voltage

−2.8 V to +0.3 V

Digital Control Inputs

Voltage

−0.3 V to VDD + 0.3 V

Current

3 mA

RF Input Power, Dual Supply1 (VDD = 3.3 V,

VSS = −2.5 V, f = 2 GHz at TCASE = 85°C2)

Insertion Loss Path

37 dBm

Isolation Path

28 dBm

Hot Switching

30 dBm

RF Input Power, Dual Supply1 (VDD = 3.3 V,

VSS = 0 V, f = 2 GHz at TCASE = 85°C2)

Insertion Loss Path

28 dBm

Isolation Path

23 dBm

Hot Switching

23 dBm

RF Input Power Under Unbiased

Condition (VDD, VSS = 0 V)

23 dBm

Temperature

Junction, TJ

135°C

Storage Range

−65°C to +150°C

Reflow

260°C

Electrostatic Discharge (ESD) Sensitivity

Human Body Model (HBM)

2 kV (Class 2)

1 For power derating vs. frequency, see Figure 2 and Figure 3. Power derating

is applicable for insertion loss path, terminated path, and hot switching power

specifications.

2 For operation at 105°C, the power handling degrades from the TCASE = 85°C

specification by 3 dB.

Stresses at or above those listed under Absolute Maximum

Ratings may cause permanent damage to the product. This is a

stress rating only; functional operation of the product at these

or any other conditions above those indicated in the operational

section of this specification is not implied. Operation beyond

the maximum operating conditions for extended periods may

affect product reliability.

THERMAL RESISTANCE

Thermal resistance is directly linked to printed circuit board

(PCB) design and operating environment. Careful attention to

PCB thermal design is required.

θJC is the junction to case bottom (channel to package bottom)

thermal resistance.

Table 3. Thermal Resistance

Package Type

θJC

Unit

CP-16-38

Through Path

106

°C/W

Terminated Path

100

°C/W

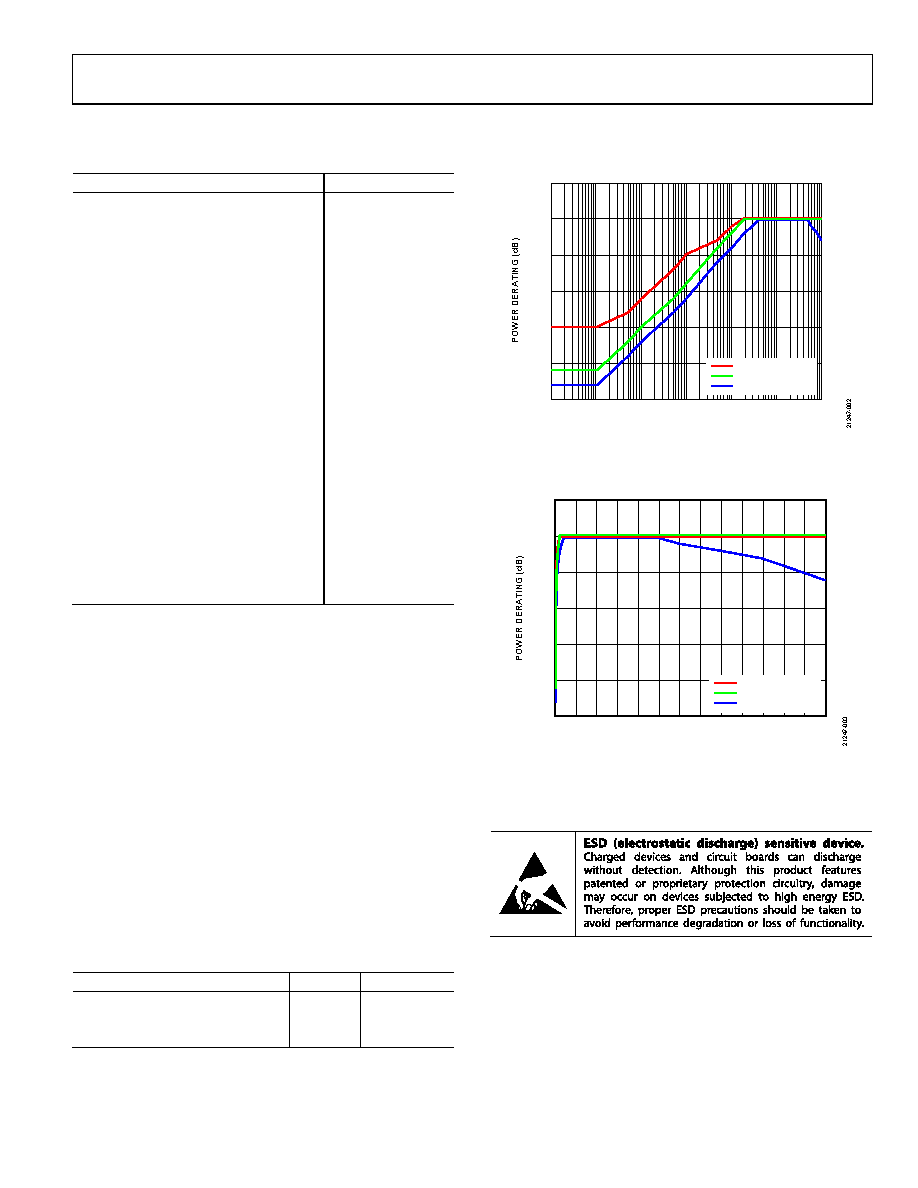

POWER DERATING CURVES

Figure 2. Power Derating vs. Frequency, Low Frequency Detail,

TCASE = 85°C

Figure 3. Power Derating vs. Frequency, High Frequency Detail,

TCASE = 85°C

ESD CAUTION

–25

–20

–15

–10

–5

0.01

0.1

100

1000

10000

FREQUENCY (MHz)

THROUGH

HOT SWITCHING

TERMINATED

–25

–20

–15

–10

–5

1347

FREQUENCY (GHz)

THROUGH

HOT SWITCHING

TERMINATED
